FFS2001 Series
Failure
If a process fails for any reason, a popup window will appear and give four options:
If you press Abort, the current One Button Process will end.
•
• If you press Retry, the failed process will run a second time and if it fails again, the one button splice will
end.
• If you press Continue then the failed process will be skipped and the next process in the process list will
be executed.
• If you press reset then the reset macro will run. On completion you can choose to "abort or retry or
continue."
Splice Properties
To customize the splice parameters, go to Splice → Splice Parameters.
Pre-Gap: Defines the target distance between the end faces of the fibers prior to running the Splice
•
Process.
Hot Push Delay: The time between when the filament has reached full power and when the fibers are
•
pushed together.
• On-Duration: Defines how long the filament is at full power in addition to the hot push delay.
Pre-Push: Pushes the right fiber inwards prior to turning on the filament.
•
• Argon: Defines the amount of argon flow during the splice.
Power: Defines the amount of power applied to the filament.
•
Hot Push: Defines the distance that the right fiber is pushed inwards after the Hot Push Delay.
•
Push Velocity: Defines how fast the right fiber is pushed in.
•
• Splice Offset: Adds an offset value to the View to Splice distance, such that the filament is not centered
around the gap.
Rev. A, August 14, 2024
buttons on the GUI will appear grey, and the status bar light will be dull red instead of
green.

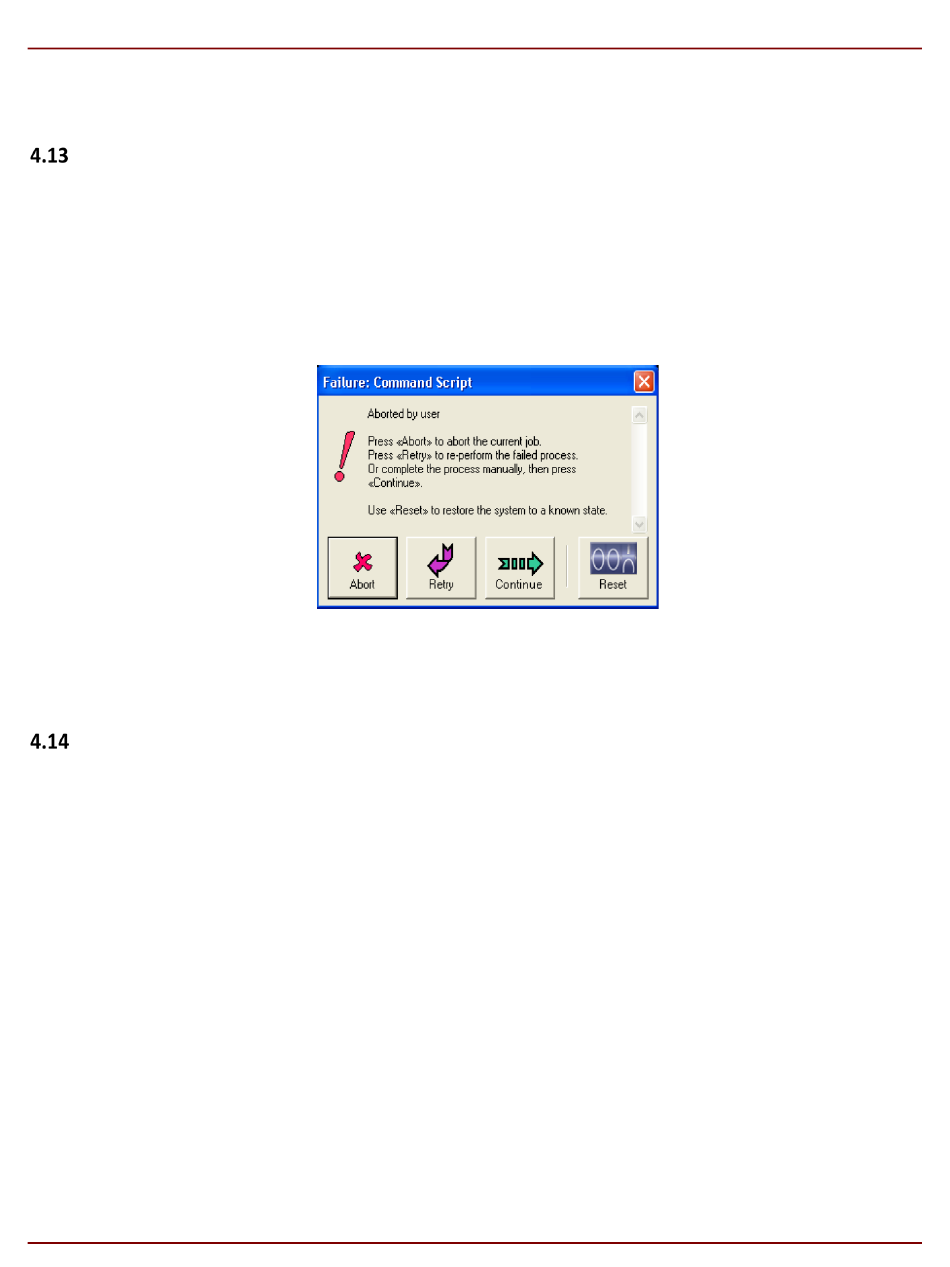

Figure 33 Failure Process Window
Chapter 4: Software
Page 33
