Upper Case Assembly
No.
1 TOUCHPAD
2 CONDUCTIVE TAPE
3 TOUCHPAD FFC
4 MAIN ANTENNA
5 AUX ANTENNA
6 UPPER CASE
Exploded Diagrams
1
3
5

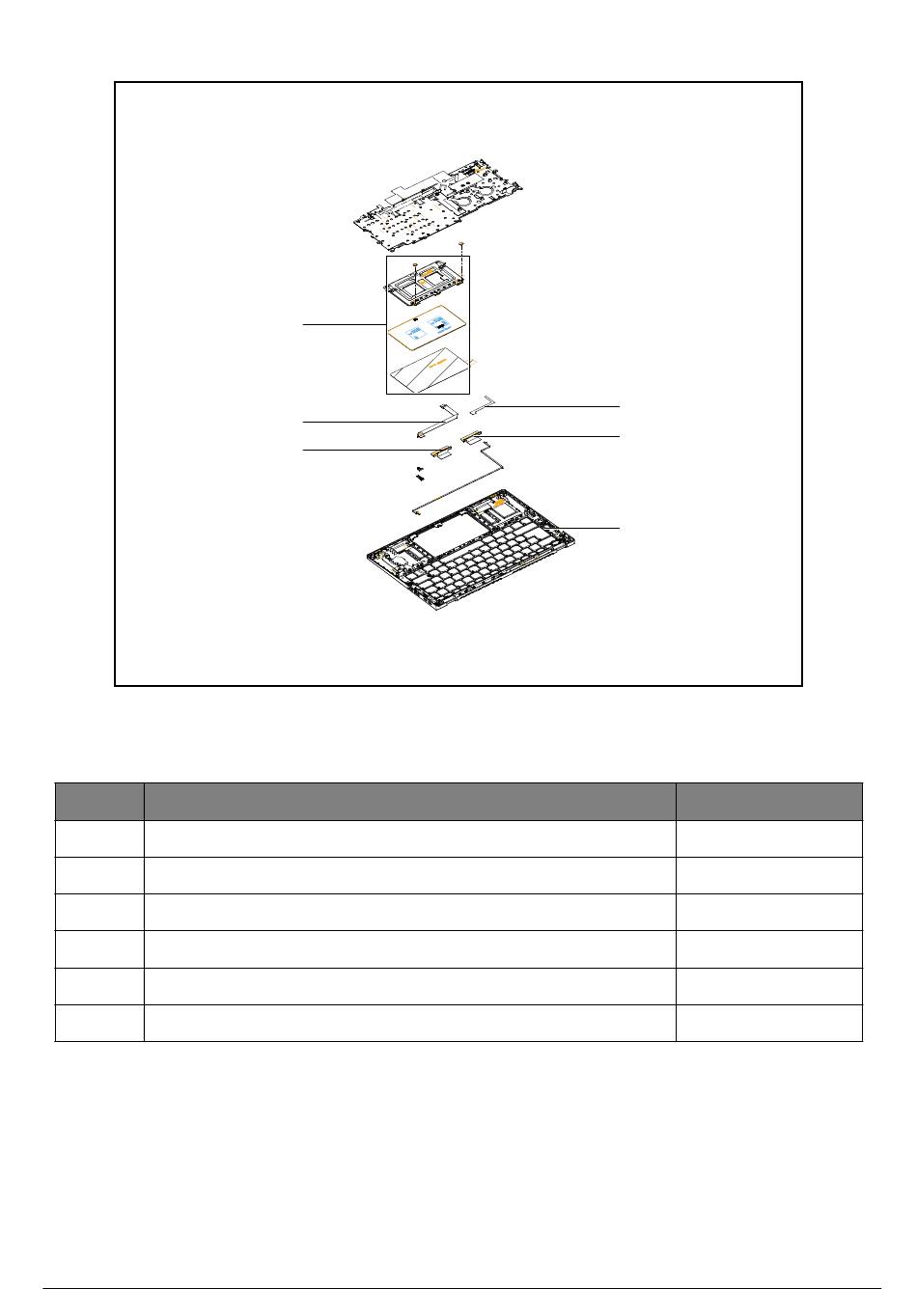

Figure 1-49. Upper Case Assembly Exploded Diagram
Table 1-12. Upper Case Assembly Exploded Diagram
Description
2
4
6
P/N
56.KRKN2.001
47.KRKN2.001
50.KRKN2.003
50.KRKN2.005
50.KRKN2.006
6B.KRKN2.001
