Detach the mylar securing the eDP cable to the LCD panel connector.
6.
Lift the latch securing the eDP cable.
7.
Disassembly Procedures

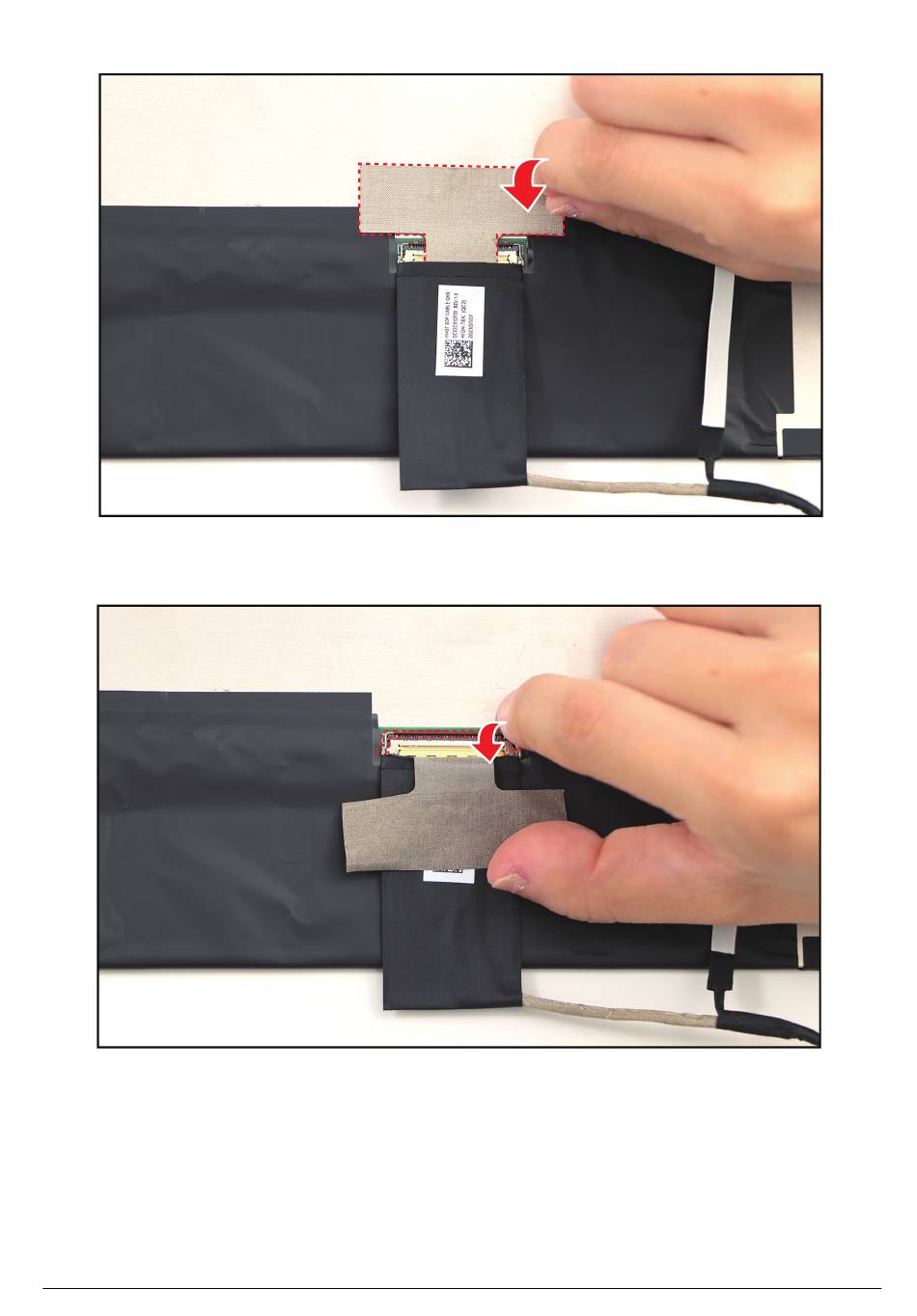

Figure 1-45. Detaching the Mylar
Figure 1-46. Lifting the Latch
1-33
