Acer Swift Go 14 Lifecycle Extension Manual page 29

Mainboard Removal
Prerequisite:






Release the latch (if necessary) and disconnect the following cables from the mainboard
1.
connectors:
• Keyboard backlight FPC (A)
• Keyboard FPC (B)
• Touchpad FFC (C)
• Hall sensor board FFC (D)
• Left speaker cable (E)
• eDP cable (F)
Pry to detach the adhesive tape underneath the RTC battery (G). Then partially detach the
2.
mylar and remove the RTC battery from the upper case.

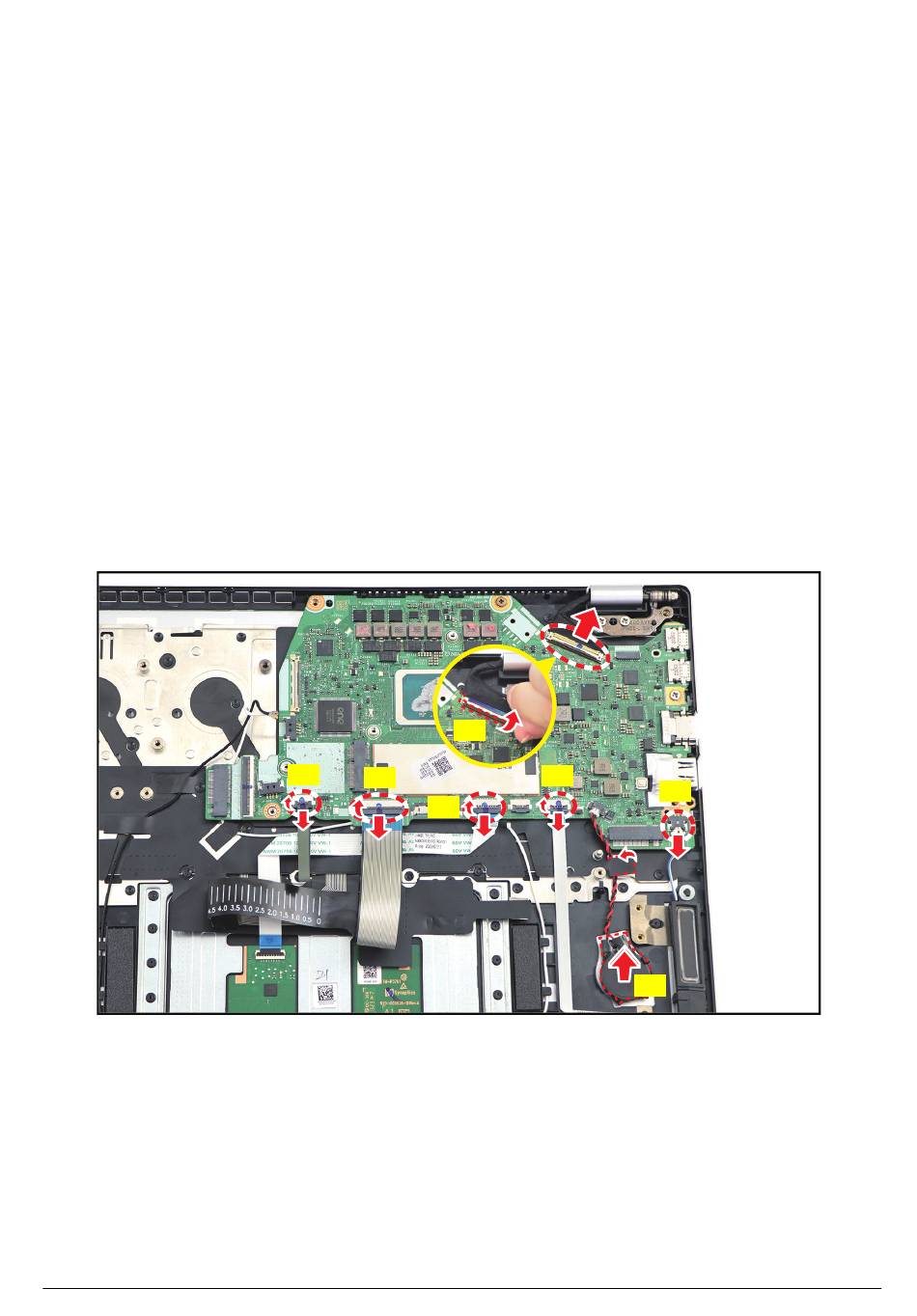

Figure 1-34. Disconnecting the Cables and Removing the RTC Battery
Disassembly Procedures
Thermal Module Removal
SSD 1 Module Removal
SSD 2 Module Removal
WLAN Module Removal
Fan 1 Module Removal
Fan 2 Module Removal
A
B
on page 1-13
1-15
on page
on page 1-18
F
D
C
E
G
1-27
