Exploded Diagrams
Main Assembly
(KN.01K0D.008) 5
No.
1 LOWER CASE
2 FAN
3 THERMAL MODULE
4 WLAN MODULE
5 SSD MODULES
6 USB BOARD FFC
Exploded Diagrams
1
3
4
8
11
12
13

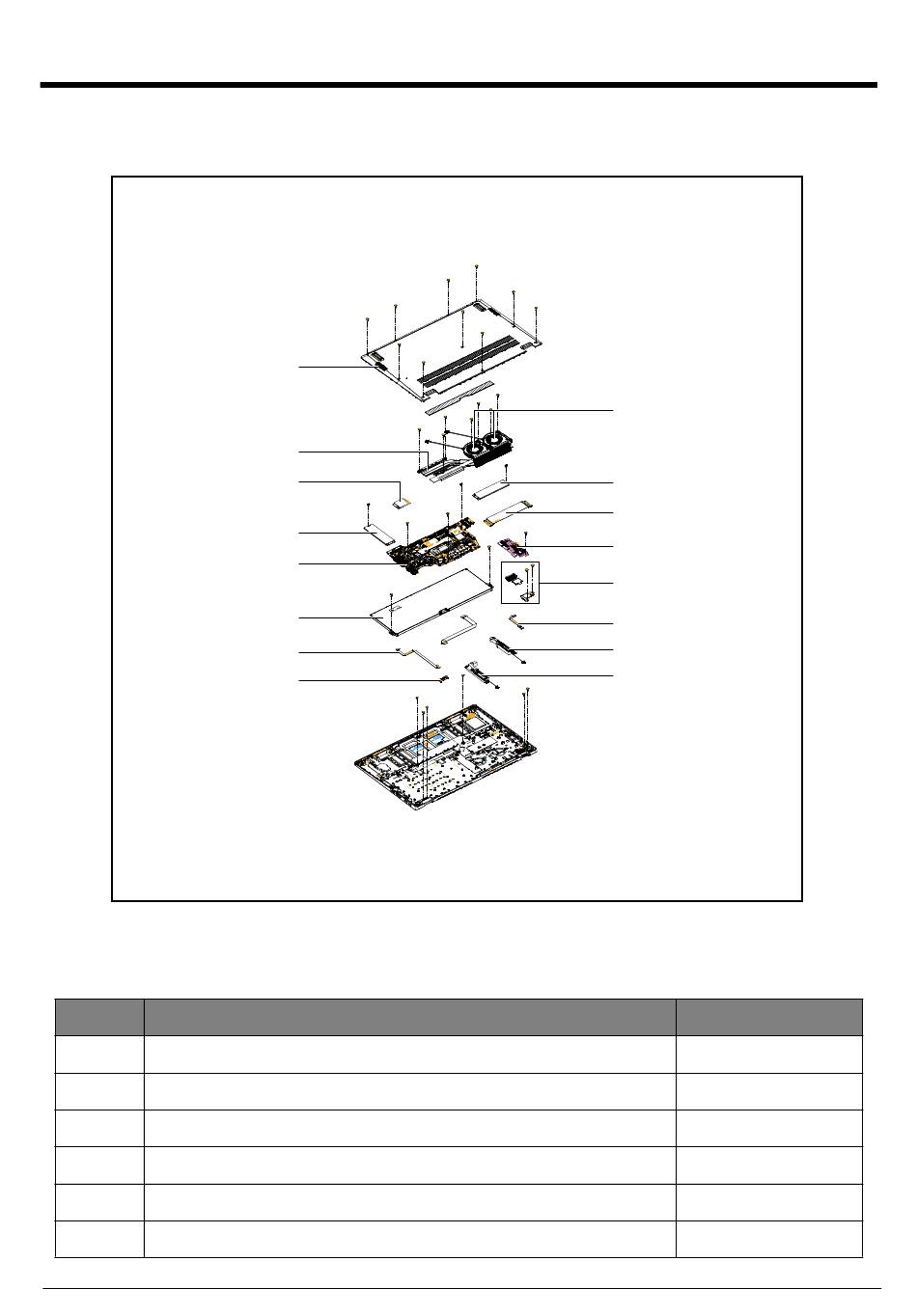

Figure 1-48. Main Assembly Exploded Diagram
Table 1-11. Main Assembly Exploded Diagram
Description
2
5 (KN.01K0D.008)
6
7
9
10
14
15
P/N
64.KRKN2.001
23.KF2N2.001
24.KRKN2.001
KE.WF60N.003
KN.01K0D.008
50.KRKN2.001
