LCD Module Removal
Prerequisite:
Lift to open the latch securing the eDP cable. Then disconnect the eDP cable from the
1.
mainboard connector.
Remove the four (4) screws securing the hinges and LCD module to the upper case.
2.
1-10
Battery Removal
on page

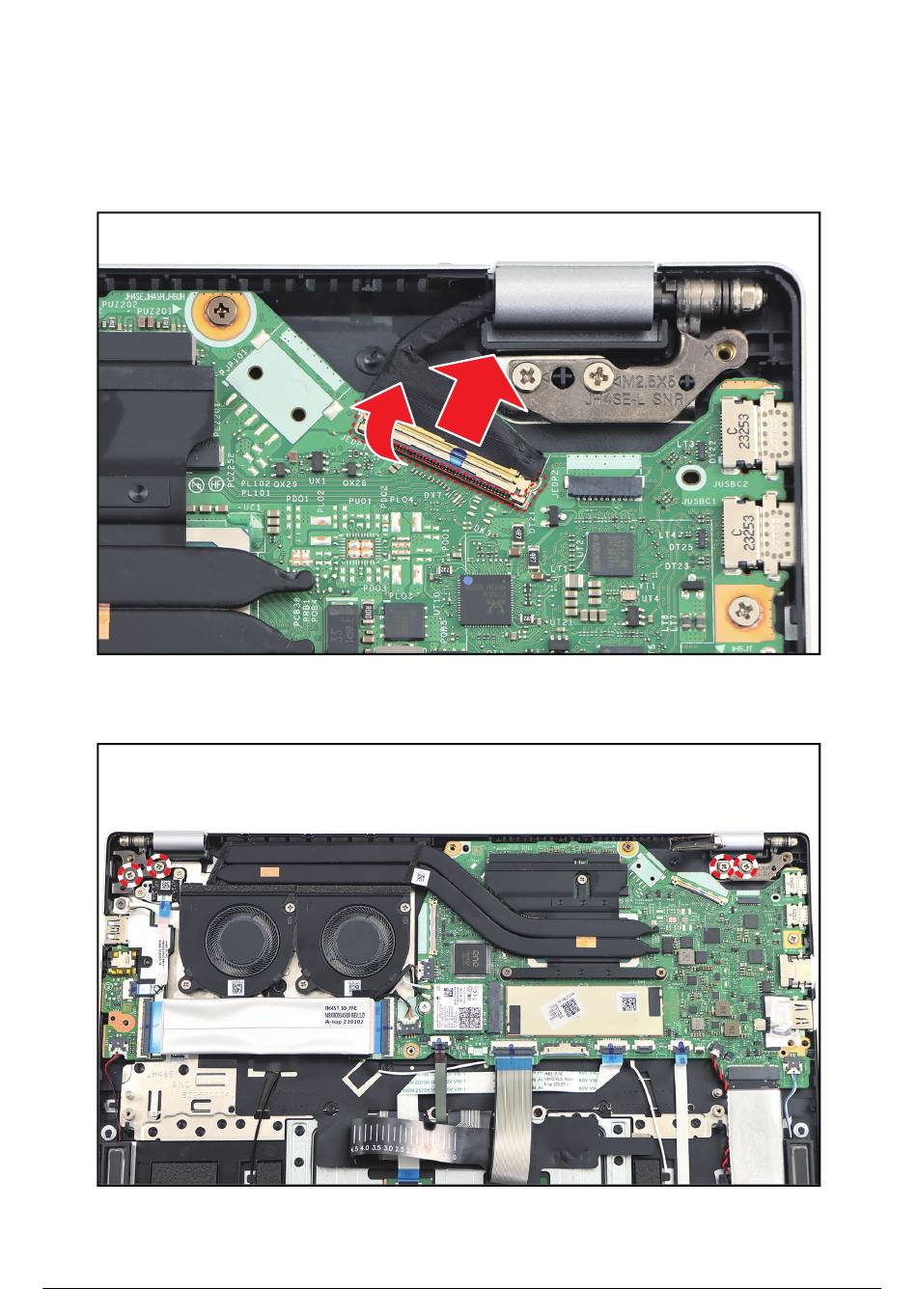

Figure 1-8. Disconnecting the eDP Cable
Figure 1-9. Removing the Screws
1-8
Disassembly Procedures
