SSD 2 Module Removal
Prerequisite:

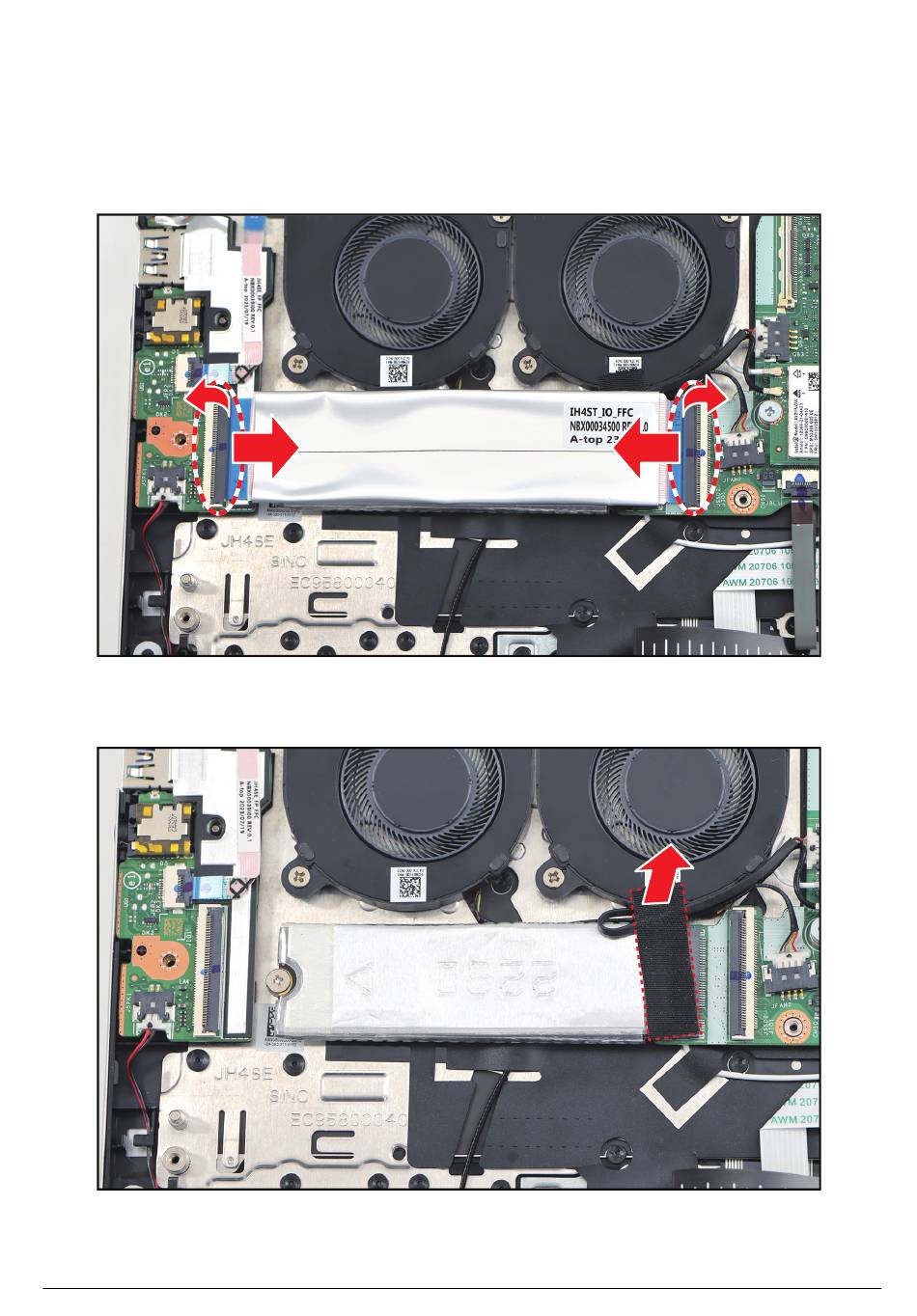

Release the latches and disconnect the USB board FFC from the USB board and mainboard
1.
connectors. Then remove the USB board FFC.
Detach the tape securing the fan cable.
2.
Disassembly Procedures
Battery Removal
on page
Figure 1-16. Removing the USB Board FFC
Figure 1-17. Detaching the Tape
1-8
1-15
