Metra Electronics 95-7333 Installation Instructions Manual

Accessories for hyundai sonata 2009-10

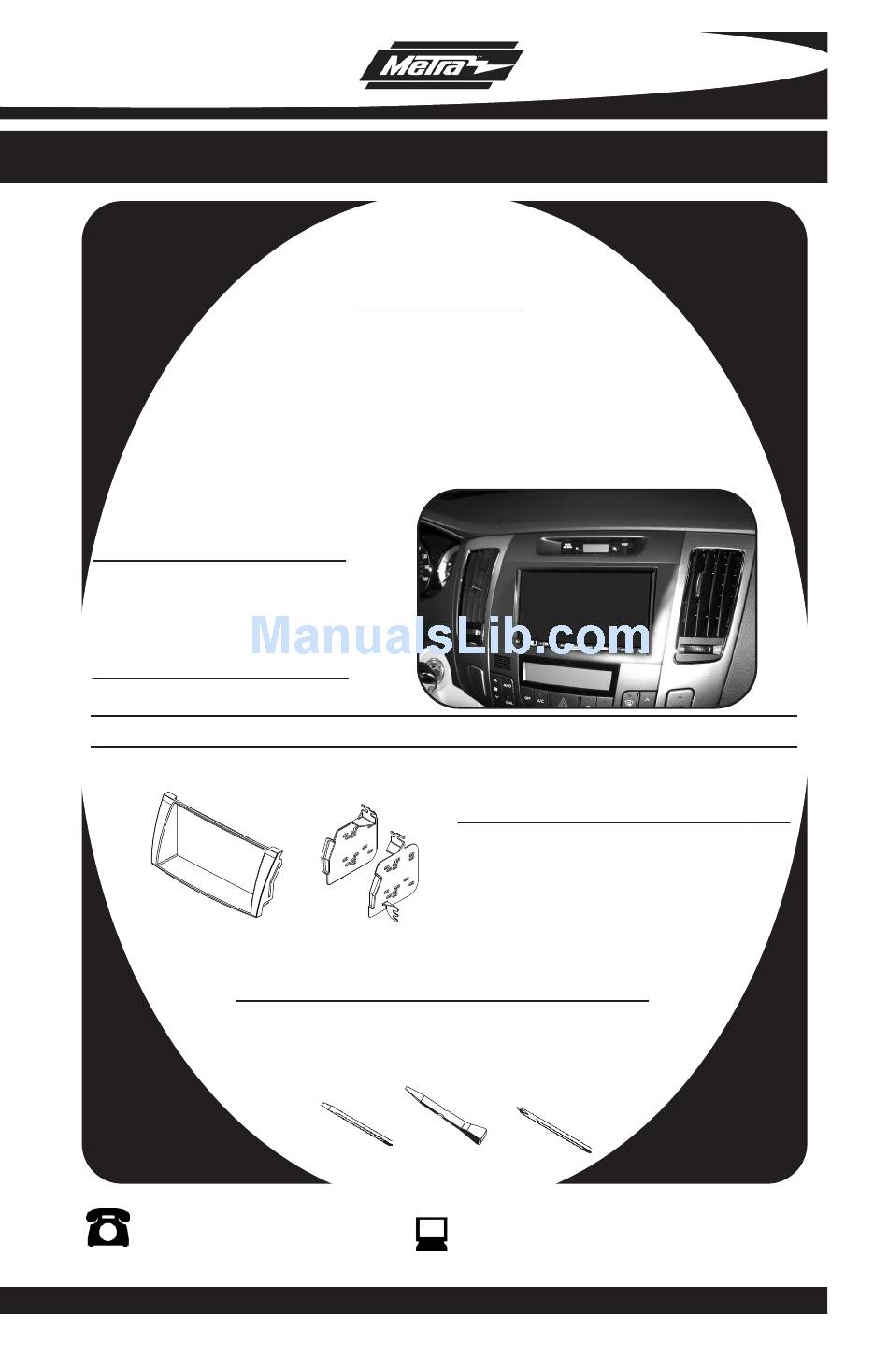

INSTALLATION INSTRUCTIONS FOR PART 95-7333

Sonata 2009-10

95-7333

KIT FEATURES

• Double DIN Radio Provision

• Stacked ISO Mount Units Provision

• Painted To Match Factory

Bronze Dash

KIT COMPONENTS

A) Double DIN Trim Plate B) Double DIN Brackets

Small Flat Blade Screwdriver • Panel Removal Tool

1-800-221-0932

APPLICATIONS

HYUNDAI

Wiring & Antenna Connections (sold separately)

• 70-7303 - Hyundai / Kia Harness 2009

• 40-KI11 - Kia Antenna Adapter 2007-up

TOOLS REQUIRED:

• Phillips Screwdriver

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 95-7333 and is the answer not in the manual?

Page 1 Small Flat Blade Screwdriver • Panel Removal Tool 1-800-221-0932 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION APPLICATIONS Wiring & Antenna Connections (sold separately) • 70-7303 - Hyundai / Kia Harness 2009 • 40-KI11 - Kia Antenna Adapter 2007-up TOOLS REQUIRED: • Phillips Screwdriver www.metraonline.com...
Page 2 - Hyundai Sonata 2009-10........
Page 3 Remove shifter knob from stem. (Figure A) Unclip and remove the shifter trim panel. (Figure B) Unclip and remove the (2) side trim panels from the center console area. (Figure C) Continued on page 2. 95-7333 DASH DISASSEMBLY...
Page 4 Unclip and remove the trim panel sur- rounding the radio and including the climate controls and vents. (Figure F) Remove (4) Phillips screws securing the radio. Unplug and remove the radio. (Figure G) Continue to kit assembly. 95-7333 DASH DISASSEMBLY...
Page 5 (Figure A) Slide the Double DIN or stacked ISO mount unit(s) into the bracket/trim plate assembly and secure the unit(s) to the assembly using the screws supplied with the unit(s). (Figure B) Continue to final assembly. 95-7333 KIT ASSEMBLY UNITS PROVISION...
Page 6 Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-7333 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together...
Page 7 95-7333 NOTES...
