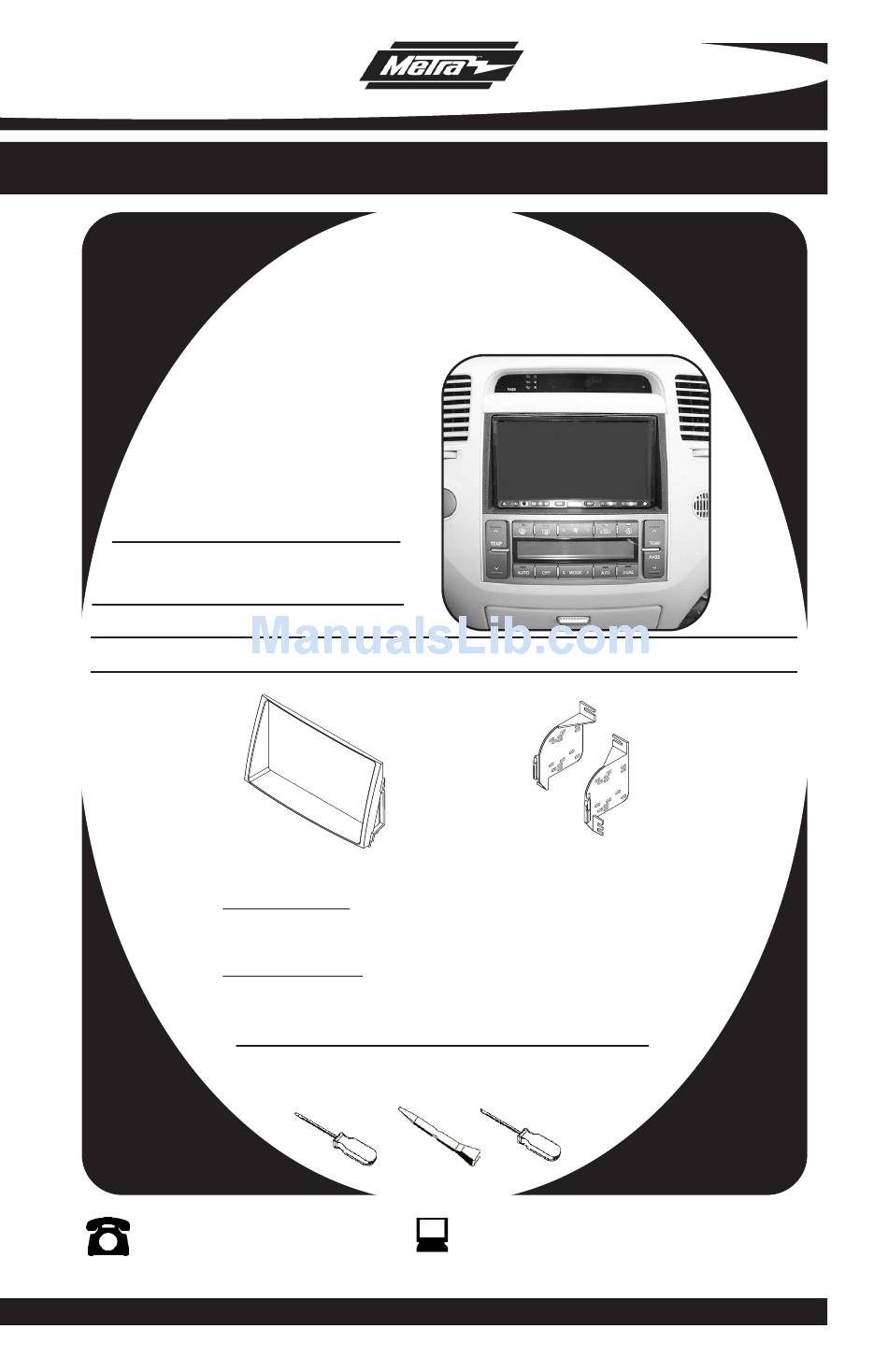

INSTALLATION INSTRUCTIONS FOR PART 95-7322
95-7322
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Units Provision
KIT COMPONENTS
A) Double Din Trim Plate • B) Double DIN Brackets
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness:
• 70-1004 - Hyundai/KIA harness 2004-up
• 70-7303 - Hyundai/KIA harness 2009
Antenna Adapter:
• 40-KI10 KIA antenna adapter 2007-up
Small Flat Blade Screwdriver/ Panel Removal Tool
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
Hyundai Azera
2006-2010
A
TOOLS REQUIRED:
• Phillips Screwdriver
B
www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 95-7322
Summary of Contents for Metra Electronics 95-7322
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7322 Hyundai Azera 95-7322 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Units Provision KIT COMPONENTS A) Double Din Trim Plate • B) Double DIN Brackets WIRING AND ANTENNA CONNECTIONS (Sold Separately) Wiring Harness: •...
- Page 2 Final Assembly ......... . . 5 *Note: Refer also to the instructions included with the aftermarket radio. 95-7322 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
-
Page 3: Hyundai Azera 2006-10
Remove (1) Phillips screw from the lower left side of the radio panel behind panel removed in step 2. (Figure B) Unclip and remove the trim panel above the radio that extends across the dash to the passenger side. (Figure C) 95-7322 DASH DISASSEMBLY... - Page 4 Remove (2) Phillips screws from under radio trim panel. (Figure E) Unclip and remove the entire trim panel surrounding the radio. (Figure F) Remove (4) Phillips screws securing the radio. Unplug and remove radio. (Figure G) Continue to kit assembly. 95-7322 DASH DISASSEMBLY...
-
Page 5: Kit Assembly
Double DIN trim plate. (Figure A) Slide the Double DIN radio into the bracket/trim plate assembly and secure the radio to the assembly using the screws supplied with the radio. (Figure B) Continue to final assembly. 95-7322 KIT ASSEMBLY... -
Page 6: Stacked Iso Units Provision
Double DIN trim plate. (Figure A) Slide the stacked ISO units into the bracket/radio housing assembly and secure the units to the kit using the screws supplied with the units. (Figure B) Continue to final assembly. 95-7322 KIT ASSEMBLY... -
Page 7: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-7322 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 8 95-7322 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 04/27/10 © COPYRIGHT 2004-10 METRA ELECTRONICS CORPORATION INST95-7322...
