INSTALLATION INSTRUCTIONS FOR PART 95-7321
Hyundai Accent 2006-2011
Kia Sportage 2005-2010
KIT FEATURES
• DDIN head unit provision
• ISO stacked head unit provision
KIT COMPONENTS

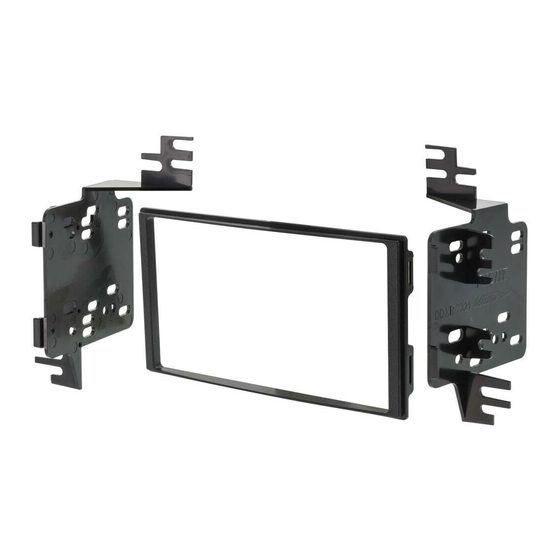

• A) DDIN radio housing • B) DDIN radio housing brackets
WIRING & ANTENNA CONNECTIONS (Sold Separately)
Wiring Harness: • 70-7303 Hyundai/Kia Harness 2009
Antenna Adapter: • 40-KI11 KIA antenna adapter 2007-up
Panel Removal Tool • Phillips Screwdriver • Small Flat Blade Screwdriver • Cutting Tool
APPLICATIONS
Kia Rio/RIO 5 2006-up
95-7321
A
• 70-1004 Hyundai 2006-up/KIA harness 2004-up
• 40-KI10 KIA antenna adapter 2007-up
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
B
metraonline.com
Advertisement
Table of Contents
Related Manuals for Metra Electronics 95-7321
Summary of Contents for Metra Electronics 95-7321

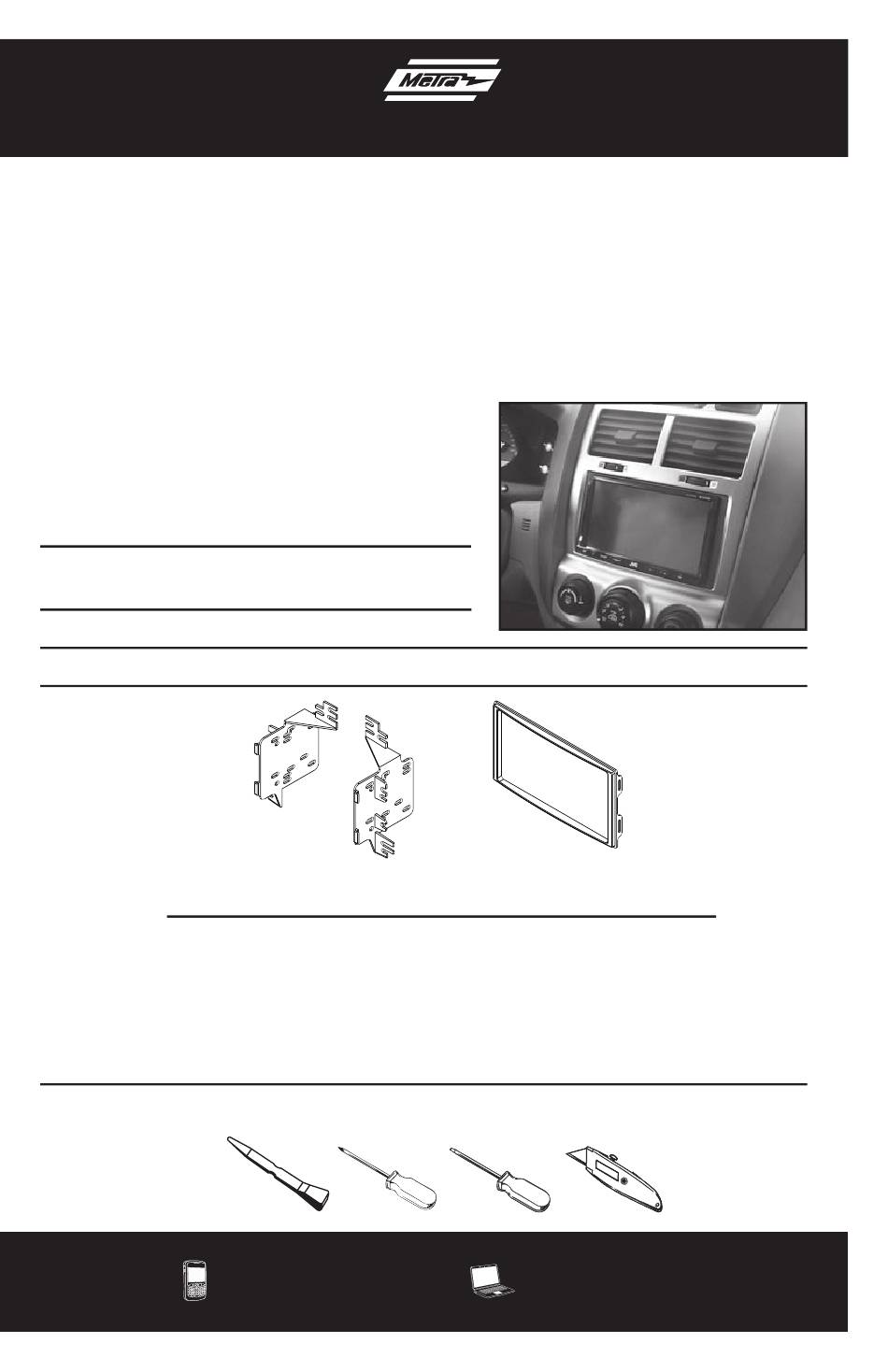

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7321 APPLICATIONS Hyundai Accent 2006-2011 Kia Rio/RIO 5 2006-up Kia Sportage 2005-2010 95-7321 KIT FEATURES • DDIN head unit provision • ISO stacked head unit provision KIT COMPONENTS • A) DDIN radio housing • B) DDIN radio housing brackets WIRING &...
-
Page 2: Table Of Contents
95-7321 Table of Contents Dash Disassembly – Hyundai Accent 2006-2011 – Kia Rio/RIO 5 2006-up – Kia Sportage 2005-2010 Kit Preparation Kit Assembly – DDIN/stacked ISO DIN head unit provision Caution Metra recommends disconnecting the negative battery terminal before beginning any installation. -
Page 3: Dash Disassembly
Dash Disassembly 95-7321 Hyundai Accent 2006-2011 Kia Rio/RIO 5 2006-up 1. Unclip and remove the trim panel surrounding the radio and including the a/c vents. (Figure A) 2. Remove (4) Phillips screws securing the radio. (Figure B) Continue to kit preparation... -
Page 4: Kia Sportage 2005-2010
Dash Disassembly 95-7321 Kia Sportage 2005-2010 1. Unclip and remove the entire panel surrounding the radio and including the A/C controls. Note: Start at bottom of panel. (Figure A) 2. Remove (4) Phillips screws to extract radio from dash. (Figure B) -
Page 5: Kit Preparation
95-7321 Kit Preparation 1. Hyundai Accent: Cut and remove shaded areas. (Figure A) 2. Kia Rio: Cut and remove shaded areas. (Figure B) 3. Kia Sportage: Cut and remove shaded areas. (Figure C) Continue to kit assembly (Figure A) (Figure B) -
Page 6: Kit Assembly
Kit Assembly 95-7321 Double DIN/stacked ISO DIN head unit provision 1. Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. - Page 7 Notes...
