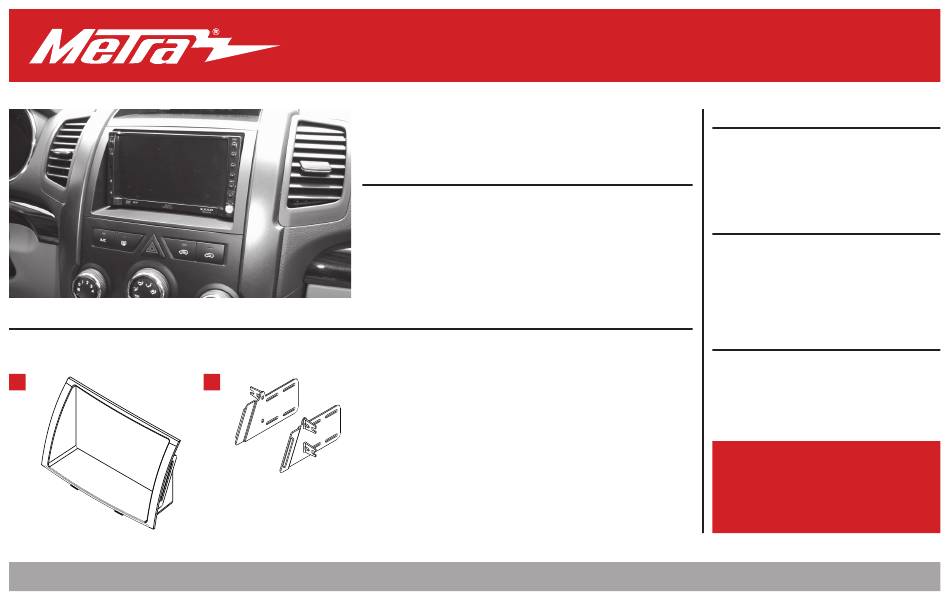

KIT COMPONENTS
• A) Radio housing • B) Radio brackets
A
Metra. The World's Best Kits.
®
Kia Sorento
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black to match the factory finish
B
MetraOnline.com
2011-2013
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-7340B
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly . .................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Please visit metraonline.com
for wiring harness options
Antenna Adapter: 40-KI11
TOOLS REQUIRED
• Phillips screwdriver
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 5/21/18 INST95-7340B
