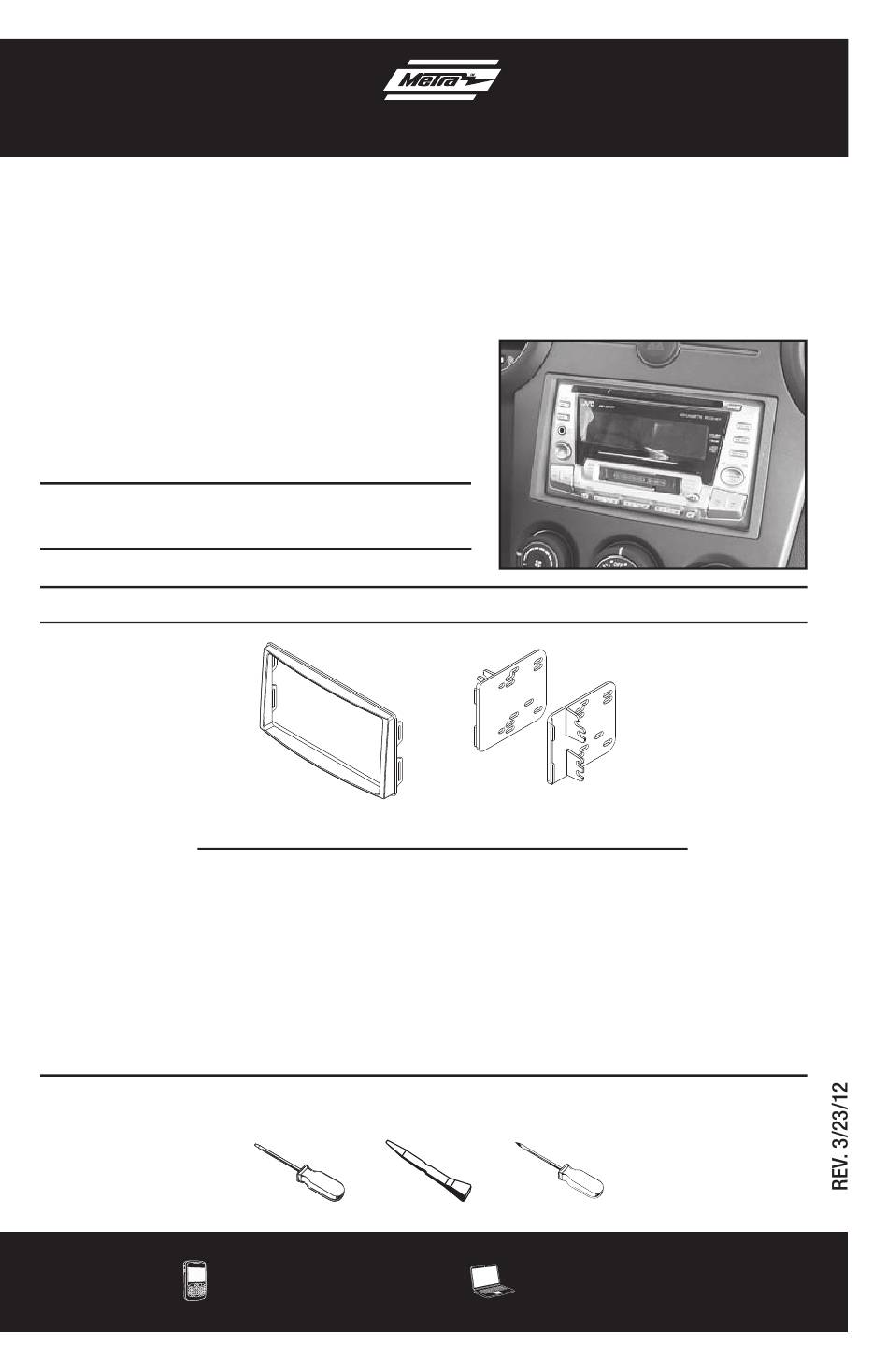

INSTALLATION INSTRUCTIONS FOR PART 95-7329

KIT FEATURES

• Double DIN radio provision

• Stacked ISO mount unit provision

KIT COMPONENTS

• A) Double DIN trim plate • B) Double DIN brackets

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-1004 Hyundai/Kia harness 2004-up

• 70-7303 Hyundai/Kia harness 2009-up

Antenna Adapter:

• 40-KI11 Hyundai/Kia antenna adapter

• Small flat blade screwdriver • Panel removal tool • Phillips screwdriver

APPLICATIONS

Kia Rondo 2007-2010

95-7329

TOOLS REQUIRED

METRA. THE WORLD'S BEST KITS.™

1-800-221-0932

metraonline.com

Need help?

Do you have a question about the 95-7329 and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 95-7329

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7329 APPLICATIONS Kia Rondo 2007-2010 95-7329 KIT FEATURES • Double DIN radio provision • Stacked ISO mount unit provision KIT COMPONENTS • A) Double DIN trim plate • B) Double DIN brackets WIRING & ANTENNA CONNECTIONS (sold separately) Wiring Harness: •...
Page 2 95-7329 Table of Contents Dash Disassembly – Kia Rondo 2007-2010 .....................3 Kit Assembly – Double DIN head radio provision ..................4 – Stacked ISO mount unit provision ..................5 CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.
Page 3 Dash Disassembly 95-7329 Kia Rondo 2007-2010 1. Unclip and remove the panel surrounding the shifter. (Figure A) 2. Remove (2) Phillips head screws securing the radio trim panel. Unplug and remove panel. (Figure B) 3. Remove (4) Phillips screws securing the radio.
Page 4 Kit Assembly 95-7329 Double DIN radio provision 1. Snap the Double DIN brackets to the inside edge of the Double DIN trim plate. (Figure A) 2 Slide the Double DIN radio into the bracket/trim plate assembly and secure the radio to the assembly using the screws supplied with the radio.
Page 5 Kit Assembly 95-7329 Stacked ISO mount unit provision 1. Snap the Double DIN brackets to the inside edge of the Double DIN trim plate. (Figure A) 2. Slide the stacked ISO units into the bracket/radio housing assembly and secure the units to the kit using the screws supplied with the units.
