INSTALLATION INSTRUCTIONS FOR PART 95-7321
Hyundai Accent 2006-2010
Kia Rio / RIO 5 2006-2010
Kia Sportage 2005-2010
95-7321
KIT FEATURES
• DDIN Head Unit Provision
• ISO Stacked Head Unit Provision

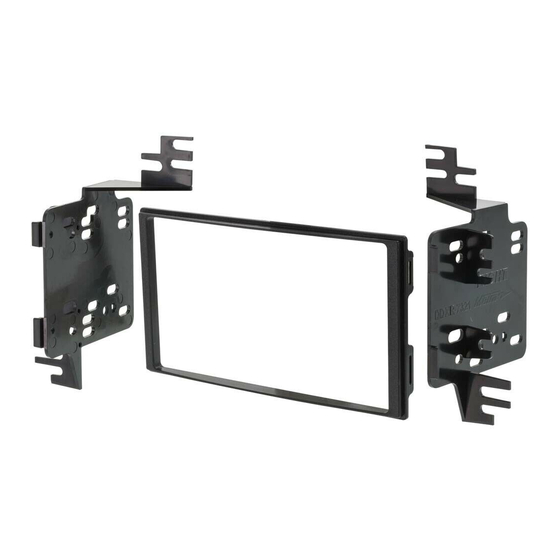

KIT COMPONENTS
A) DDIN Brackets
B) DDIN Trim Plate
A
Phillips Screwdriver • Small Flat Blade Screwdriver • Panel Removal Tool • Cutting Tool
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
• 70-1004 - Hyundai 2006-up/KIA harness 2004-up
B
TOOLS REQUIRED:
www.metraonline.com
HARNESS:
• 70-7303 - Hyundai / Kia Harness 2009
ANTENNA ADAPTER:
• 40-KI11 - KIA antenna adapter 2007-up
• 40-KI10 - KIA antenna adapter 2007-up
Advertisement
Table of Contents
Related Manuals for Metra Electronics 95-7321
Summary of Contents for Metra Electronics 95-7321
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7321 Hyundai Accent 2006-2010 Kia Rio / RIO 5 2006-2010 Kia Sportage 2005-2010 95-7321 KIT FEATURES • DDIN Head Unit Provision • ISO Stacked Head Unit Provision KIT COMPONENTS A) DDIN Brackets B) DDIN Trim Plate Phillips Screwdriver •...
- Page 2 95-7321 TABLE OF CONTENTS Dash Disassembly ... 1-2 Kit Preparation ... 3 Kit Assembly ... 4 Metra recommends MECP certified technicians...
- Page 3 95-7321 DASH DISASSEMBLY HYUNDAI ACCENT 2006-2010 KIA RIO / RIO 5 2006-2010 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the trim panel surrounding the radio and including the a/c vents. (Figure A) Remove (4) Phillips screws securing...
- Page 4 95-7321 KIA SPORTAGE 2005-2010 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the entire panel surrounding the radio and including the A/C controls. Note: Start at bottom of panel. (Figure A) Remove (4) Phillips screws to extract radio from dash.
-
Page 5: Kit Preparation
95-7321 HYUNDAI ACCENT: Cut and remove shaded areas. (Figure A) KIA RIO: Cut and remove shaded areas. (Figure B) KIA SPORTAGE: Cut and remove shaded areas. (Figure C) KIT PREPARATION... -
Page 6: Kit Assembly
95-7321 DOUBLE DIN / STACKED ISO DIN HEAD UNIT PROVISION Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter from Metra or AXXESS. Re-connect the negative battery terminal and test the unit for proper operation. - Page 7 95-7321 NOTES...
- Page 8 95-7321 INSTRUCTIONS METRA. THE WORLD’S BEST KITS.™ 1-800-221-0932 www.metraonline.com © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST95-7321 REV. 04/26/10...
