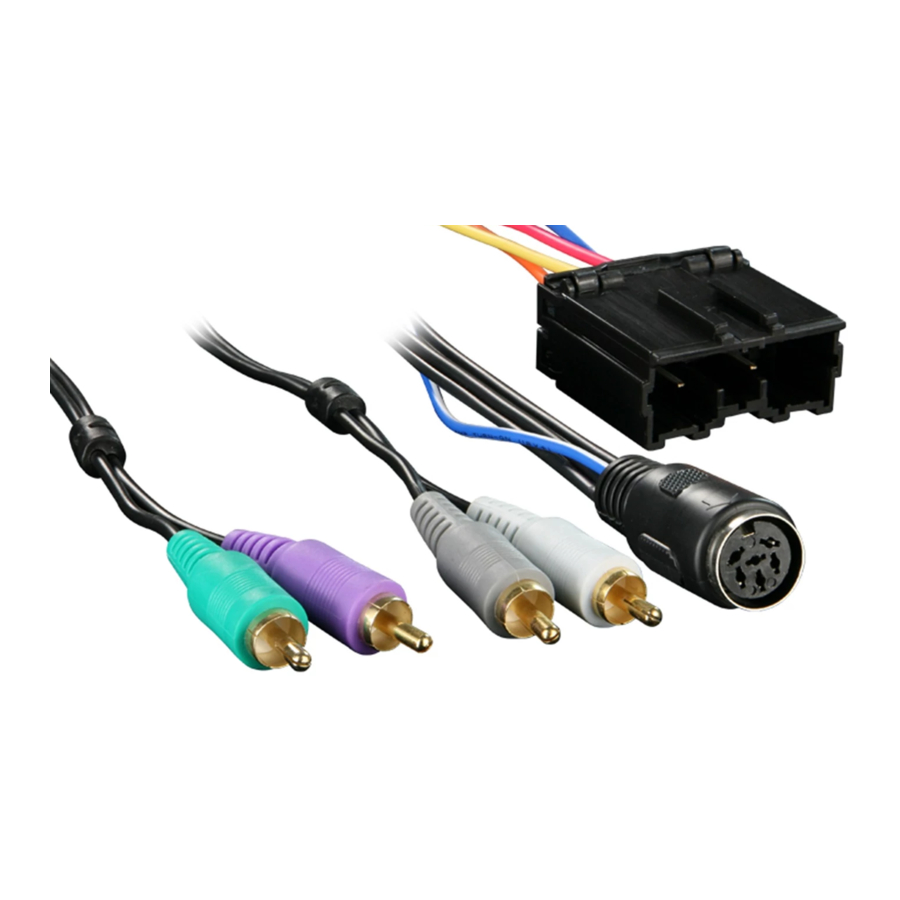

Metra Electronics 70-7003, 70-7004 - Amplifier Integration Harness Manual
- Installation instructions manual (2 pages)
Advertisement
To Intergrate Aftermarket Head Unit with Factory Amplifier
1994-96 Dodge Stealth
1995-98 Eagle Talon
1994-99 Mitsubishi 3000GT
1994-04 Mitsubishi Diamante
1995-05 Mitsubishi Eclipse
1994-03 Mitsubishi Galant
2002-07 Mitsubishi Lancer
1997-02 Mitsubishi Mirage
1997-05 Mitsubishi Montero
2003-06 Mitsubishi Outlander
AUDIO HARNESS
Connect the RCA cables to the line outputs on the aftermarket head unit OR use Metra's #FL-LOC605 (sold separately) Line Output Converters to supply line outputs.
| FUNCTION | COLOR |
| Right Front | Gray |
| Left Front | White |
| Right Rear | Purple |
| Left Rear | Green |
| Amplifier Turn On | Blue/White |
POWER HARNESS
Connect the power wires to the aftermarket head unit.
| FUNCTION | COLOR |
| Ground | To vehicle chassis |
| Battery/Memory | Yellow |
| Ignition/Accy | Red |
| Power Antenna | Blue |
| Illumination | Orange (If the aftermarket head unit does not have an Illumination wire, do not connect the orange wire, and cap this wire to prevent a short circuit.) |
NOTE: If the system has noise, use Metra's #FL-GL605(sold separately) Ground Loop Isolator to remove the noise.
To Intergrate an Aftermarket Amplifier with a Factory Head Unit when removing the Factory Amplifier
AUDIO HARNESS
Connect the RCA cables to the line inputs on the aftermarket amplifier. (Additional RCA cables or connectors may be required depending on your installation. These parts are sold separately)
| FUNCTION | COLOR |
| Right Front | Gray |
| Left Front | White |
| Right Rear | Purple |
| Left Rear | Green |
| Amplifier Turn On | Blue/White |
Use the appropriate fused power wires (sold separately) to run power connections from the battery to the aftermarket amplifier.
POWER HARNESS
Not used in this application. Factory amplifier locations
1994-96 Dodge Stealth / 1994-99 Mitsubishi 3000GT / 1995-04 Mitsubishi Eclipse / 1997-98 Mitsubishi Galant / 1997-04 Mitsubishi Montero:
Under passenger side front seat.
1994-04 Mitsubishi Diamante / 1999-03 Mitsubishi Galant:
Under rear deck.
2002-05 Mitsubishi Lancer:
Under drivers side front seat.
1-800-221-0932 www.metraonline.com
©COPYRIGHT 2001-2009 METRA ELECTRONICS CORP.
