INSTALLATION INSTRUCTIONS FOR PART 95-7326
APPLICATIONS
Hyundai Elantra 2007-2010
(US Model Only)
(Non Radio Delete)
(Non Touring Model)
95-7326
KIT FEATURES
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
KIT COMPONENTS
A) Double DIN Trim Plate B) Double DIN Brackets
A
B
TOOLS REQUIRED:
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2010 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 95-7326
Summary of Contents for Metra Electronics 95-7326

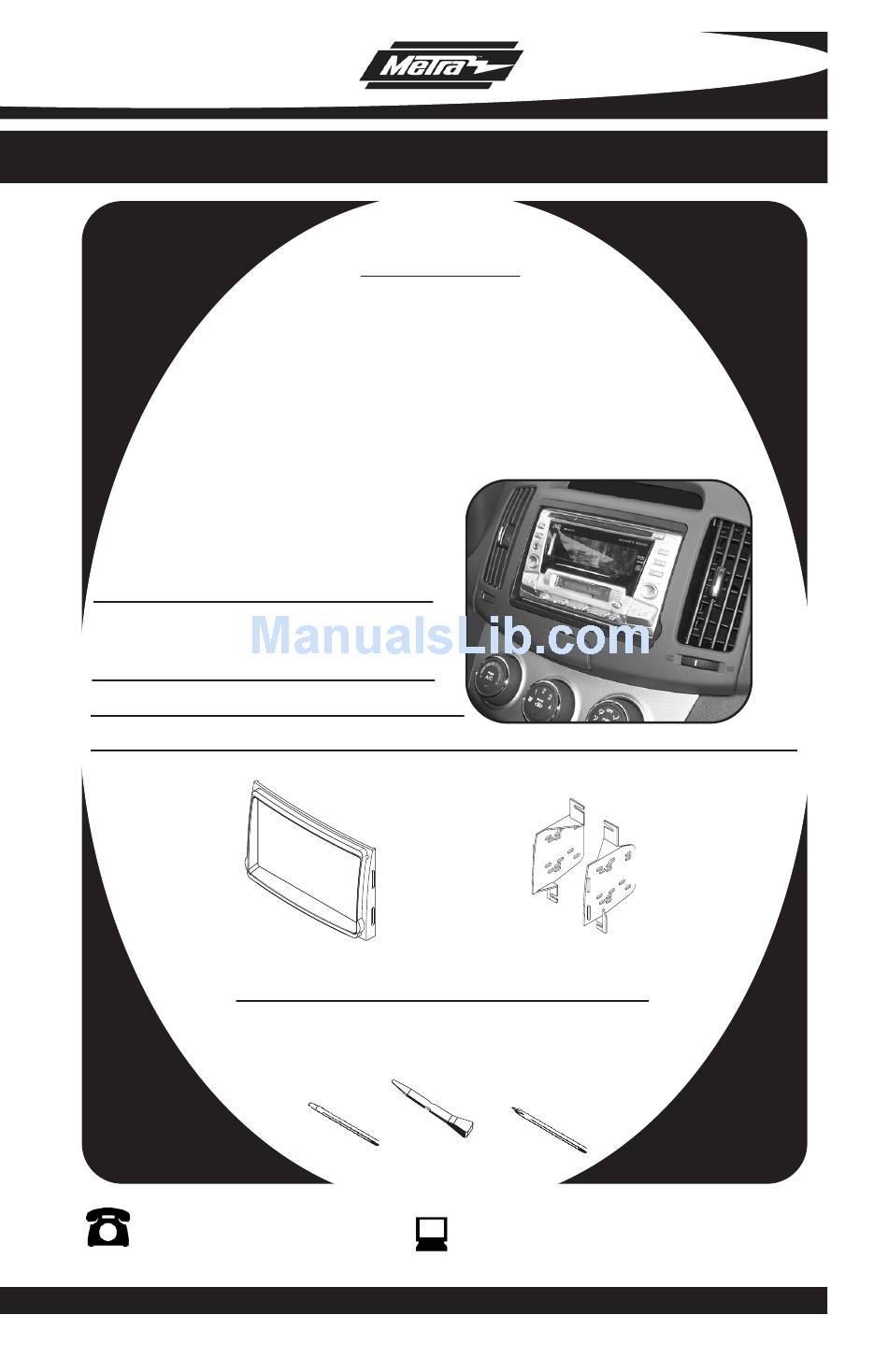

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7326 APPLICATIONS Hyundai Elantra 2007-2010 (US Model Only) (Non Radio Delete) (Non Touring Model) 95-7326 KIT FEATURES • Double DIN Radio Provision • Stacked ISO Mount Units Provision KIT COMPONENTS A) Double DIN Trim Plate B) Double DIN Brackets...
-
Page 2: Table Of Contents
Final Assembly ......... . 4 *Note: Refer also to the instructions included with the aftermarket radio. 95-7326... -
Page 3: Hyundai Elantra 2007-2010
Unclip and remove the panel sur- rounding the radio including the a/c vents and hazard button. (Figure A) Remove (4) Phillips screws to remove radio. (Figure B) Continue to kit assembly. 95-7326 DASH DISASSEMBLY... -
Page 4: Kit Assembly
Cut and remove the bar in the factory radio trim panel. (Figure A) TIP: The smoother the cut, the better the 95-7326 will look in the dash panel. Snap the Double DIN brackets to the inside edge of the Double DIN trim plate. -
Page 5: Stacked Iso Mount Units Provision
Cut and remove the bar in the factory radio trim panel. (Figure A) TIP: The smoother the cut, the better the 95-7326 will look in the dash panel. Snap the Double DIN brackets to the inside edge of the Double DIN trim plate. -
Page 6: Final Assembly
Dimmer ....Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 95-7326 FINAL ASSEMBLY (A) Strip wire ends back 1/2" B) Twist ends together... - Page 7 95-7326 NOTES...
- Page 8 95-7326 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 4/27/10 © COPYRIGHT 2010 METRA ELECTRONICS CORPORATION INST95-7326...
