Adjustable Mounting Bracket

If you need more more than one measuring position for the sensing head,
use the adjustable mounting bracket accessory.
22 (.75)
22
(.75)
3
(.12)
2
(.08)

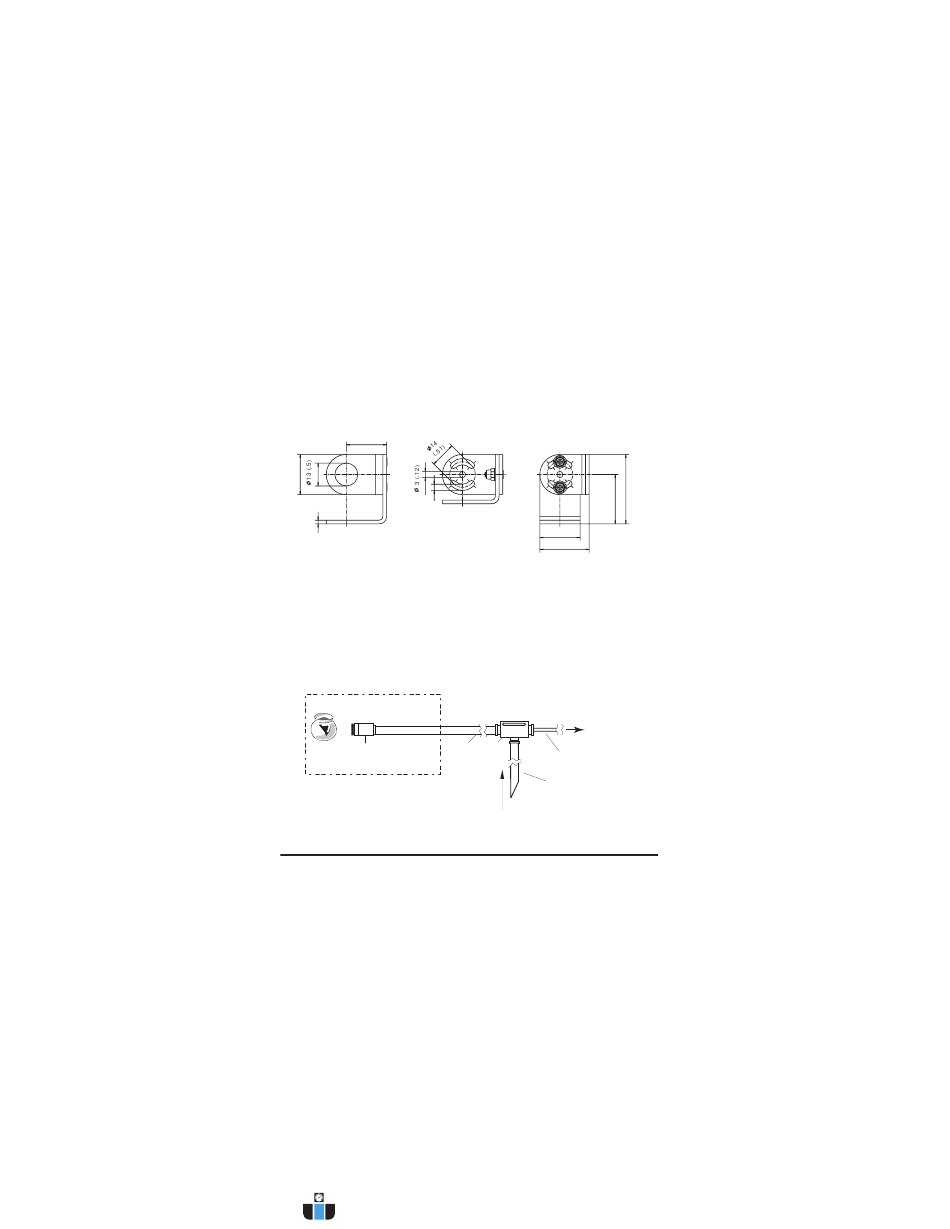

Figure B-18: Adjustable Mounting Bracket Accessory
B.6.3

GPM Head with Air Cooling System

The air cooling option allows the sensor to be used in ambient temperatures
up to 200°C (392°F). The T-fitting allows the air cooling hose to be installed
without interupting the connections to the electronics. The air-cooling jacket
may be combined with the air purging jacket (Section B.6.4) or with the right
angle mirror (Section B.6.5).
Ambient temperature max. 50°C
Ambient temperature
up to 200°C
Sensing head Hose
Air cooling (max. 35°C)
Figure B-19: Air Cooling System
50 Thermalert GP Series Operator's Manual
www.calcert.com
15
10 20
5 25
0 30
38
(1.5)
27
(1.05)
22 (.75)
mm (inches)
27 (1.05)
To terminals
T-Fitting
Cable
Air hose
