APPENDIX E CUTOUT TEMPLATE AND
COSMETIC FRAME
If you are mounting your monitor into a panel, this plastic frame can be used
as a template for determining the proper dimensions for your panel cutout. To
use, hold or tape the template against the panel at the location where you
want to mount the monitor, and mark around the inside edges. (Refer to
Figure E-1.)
Once you cut the panel, you can use this template as a frame to hide scratches
or small voids on the panel that might have been created during the cutting
process.
To install, simply insert the frame between the monitor bezel and mounting
gasket prior to inserting the monitor into the panel. (For monitor installation
and mounting instructions, refer to the manual.)
1 1 0
m m
( 4 1 1
/ 3 2 i

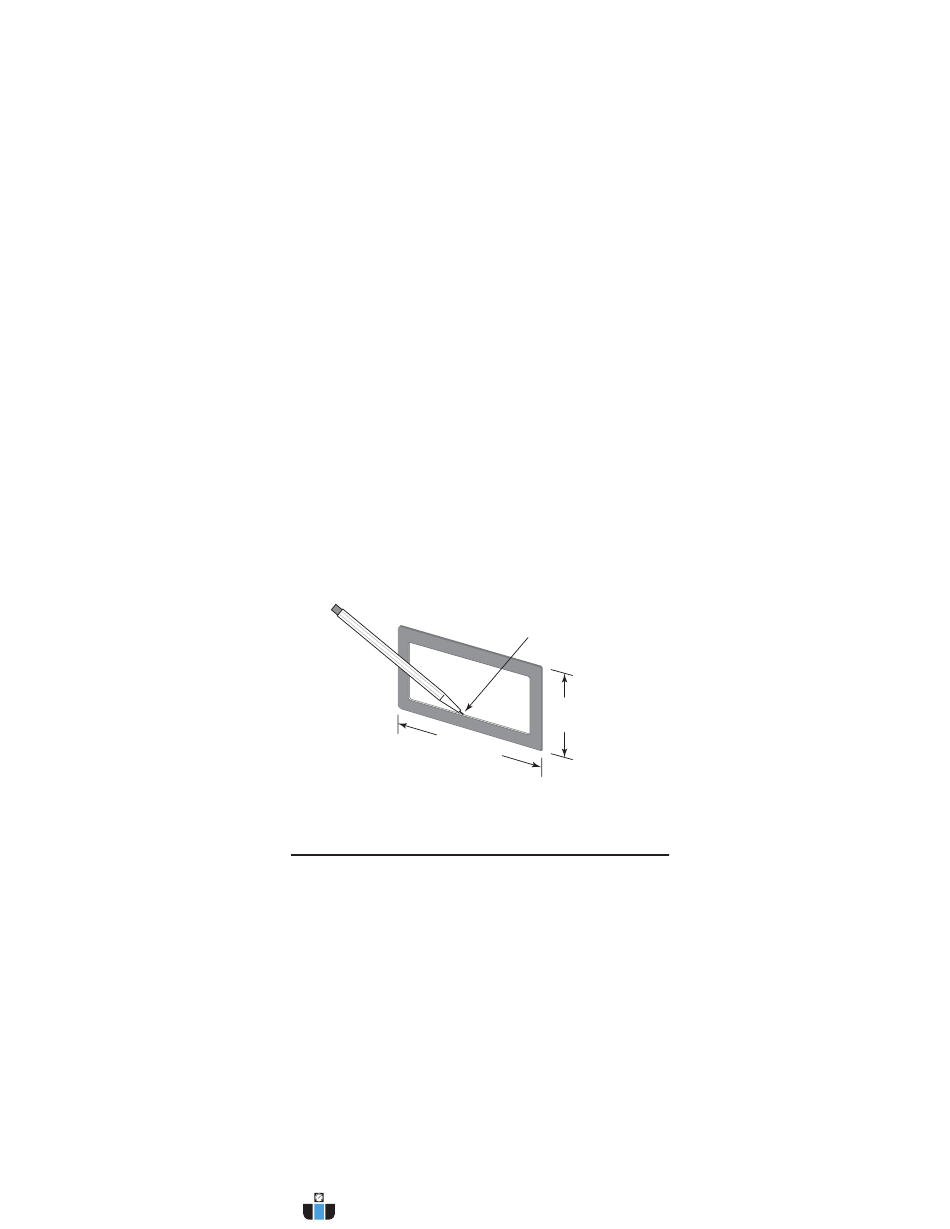

Figure E-1: 1/8 DIN Cutout Template and Cosmetic Frame
Thermalert GP Series Operator's Manual
www.calcert.com
15
10 20
5 25
0 30
Mark around
inside edges
6 4 m
m
( 2 1 /
2 i n )
n )
mm
(inches)
