2.4.5

4-20mA Analog Output

Complete the following for setting a temperature to correspond to the
4-20mA analog output:
Note: The 4-20mA analog output is disabled when the thermocouple output is active.
(Refer to Section 2.4.10.)

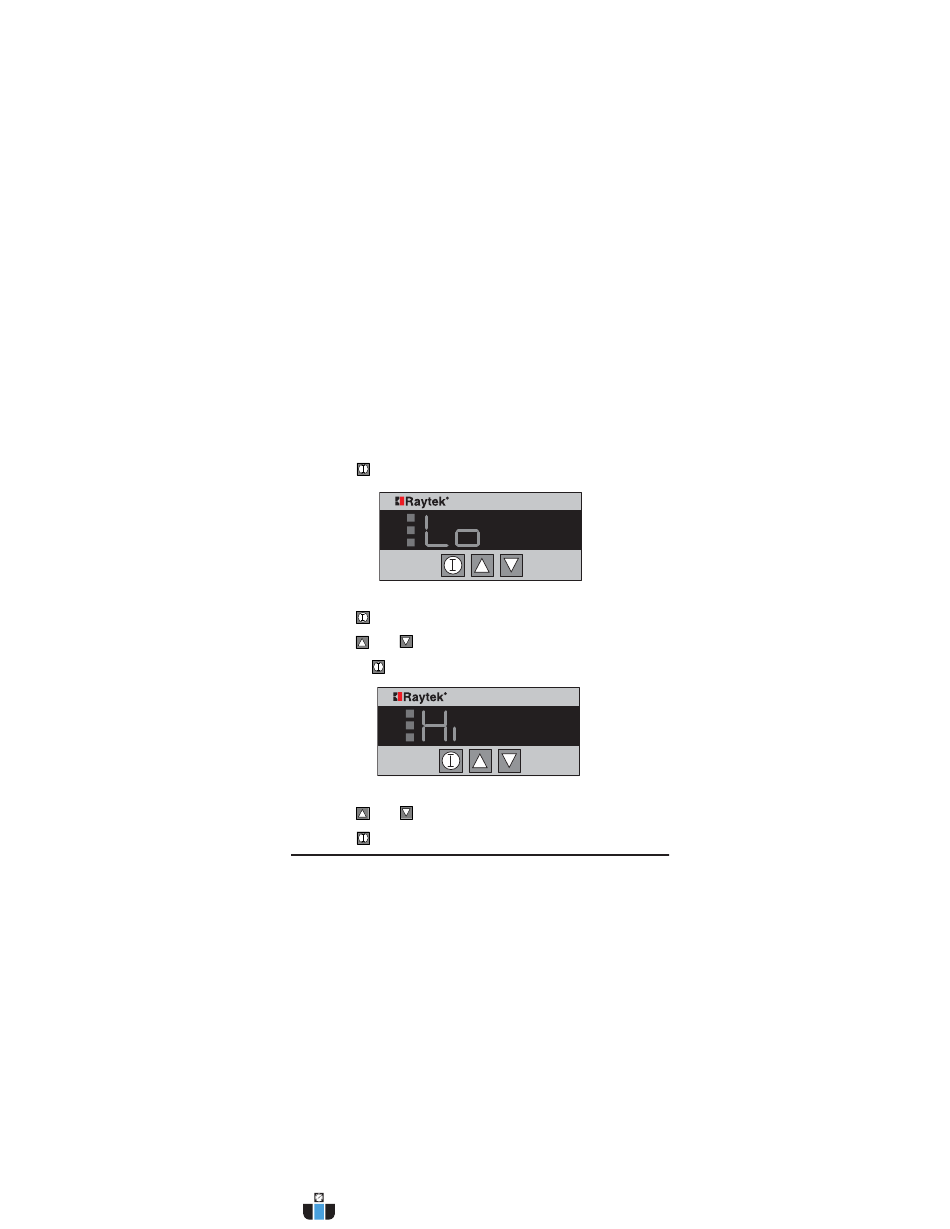

1. Press the button until the 4 mA output display (Figure 12) displays.
O
N
L
Figure 12: 4mA Analog Output Display
2. Press the button again, and the current 4mA temperature displays.
3. Press the and buttons to adjust the temperature value.
4. Pressing the button again brings up the 20mA display (Figure 13).
O
N
L
Figure 13: 20mA Analog Output Display
5. Press the and buttons to adjust the temperature value.
6. Press the button until the temperature mode is displayed.
