Device Selection

Six device types can be connected to the electronics enclosure. Complete the
following procedure to set the electronics to the appropriate device.
1. From the temperature/value display, press and hold
release them both. A display similar to Figure 6 appears. (The "H" will
be followed by numbers designating the device type. See Step 2.)
O
N
L

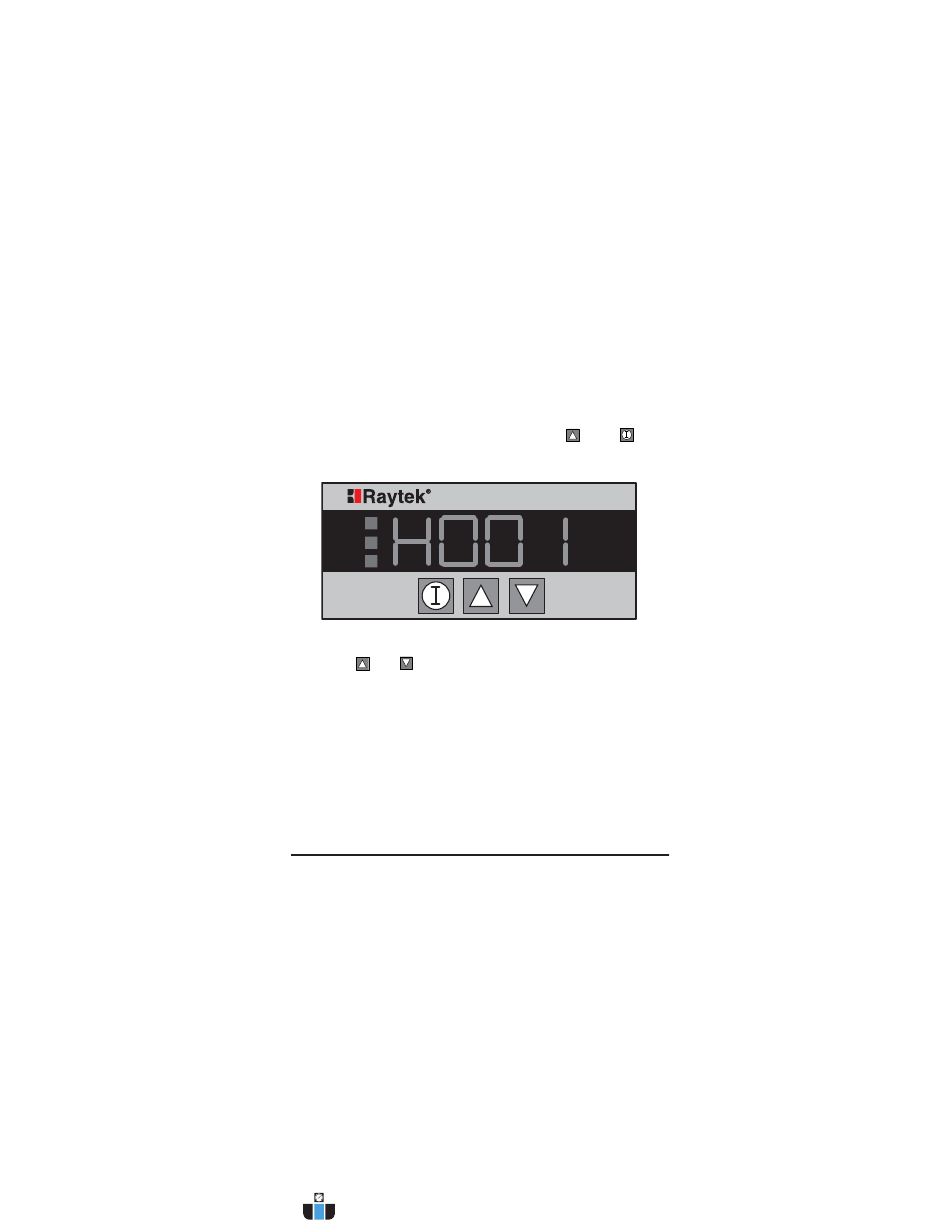

Figure 6: Device Selection Display
2. Press the and buttons to change the number on the display to the
appropriate head type.
Head types are as follows:
• H001 = Raytek GPR/GPS Heads
• H002 = Raytek GPM Head
• H003 = Raytek CI3 Head
• H004 = 0 - 5V inputs
• H005 = 4 - 20mA inputs
• H006 = Thermocouple inputs
Note that all head types except H003 have additional display settings (as
shown on the next page).
