2.4.4

Setpoints 1 and 2

Setpoints are preset at the factory for the highest measurement value but are
deactivated by default. To adjust setpoints, complete the following:
1. In temperature/value display, press the
to Figure 8 appears. (Setpoint 1 shows as "S1" followed by a number 0,
showing that Setpoint 1 is Inactive, or a number 1, designating active.
O
N
L

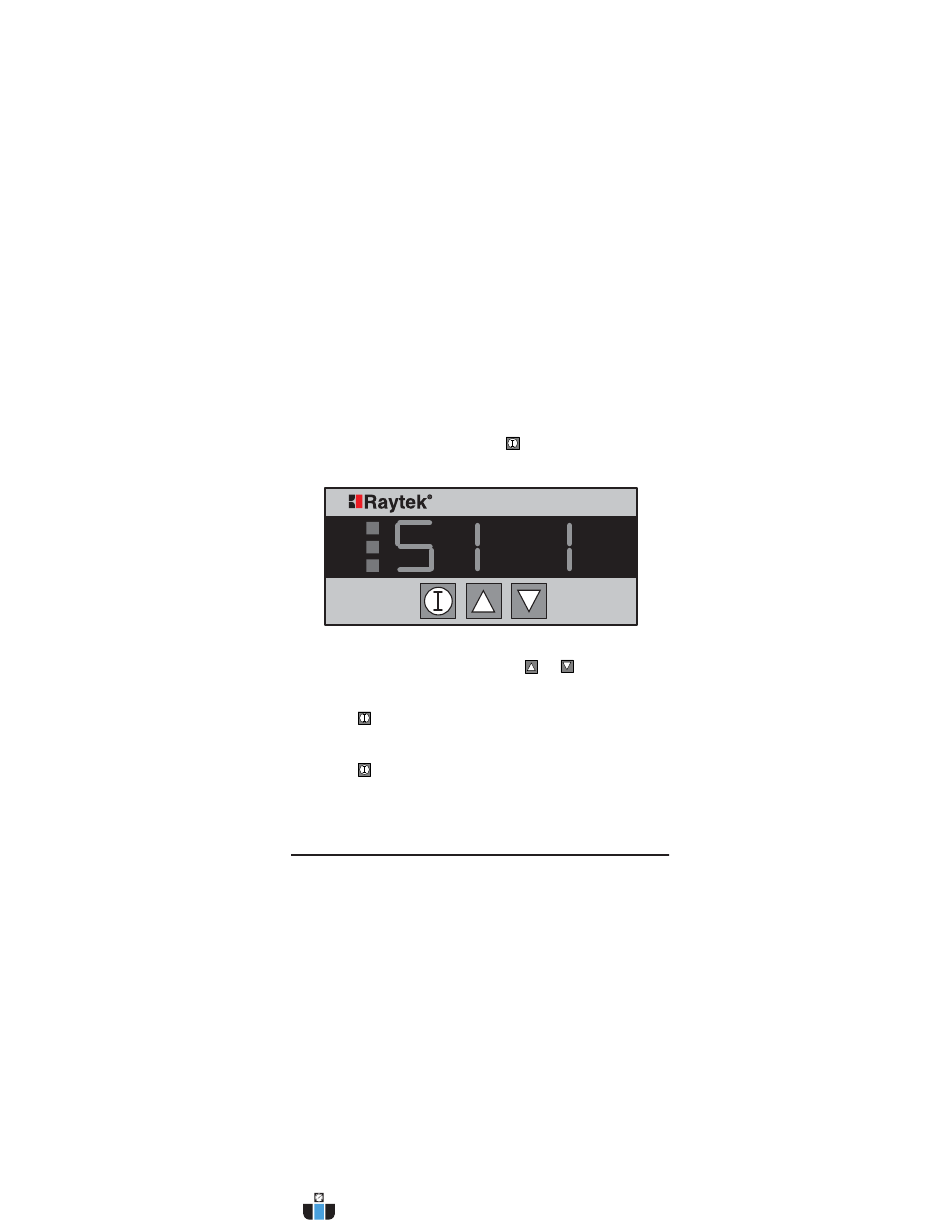

Figure 8: Setpoint Display (Showing Setpoint 1 Active)
2. When either S1 or S2 is displayed, press the
vate or deactivate the setpoint (a number "1" displays when the setpoint
is active, a number "0" displays when it's inactive).
3. Press the button, and the display shows the current alarm tempera-
ture or value (Setpoint value). Use the up and down arrows to adjust the
alarm value.
4. Press the button again and a display similar to Figure 9 appears. If
you see a number "1," it means the Normally Low setpoint will change
state when the target temperature or value exceeds the alarm value. If a
number "0" displays, the Normally Low setpoint will change state when
the target temperature or value is lower than the setpoint alarm value.
Thermalert GP Series Operator's Manual
www.calcert.com
15
10 20
5 25
0 30
button until a display similar
Thermalert GP
C
F
or buttons to acti-
15
