Side-Power SH 100/185 T Installation And User Manual page 4

U-motor:
BA-motor:
Motor type Port A/B
U6 1/2" BSP
U8 1/2" BSP
U10 3/4" BSP
U11 3/4" BSP
U14 3/4" BSP
U16 3/4" BSP
U19 3/4" BSP
U26 3/4" BSP
U29 3/4" BSP
U33 3/4" BSP
U37 3/4" BSP
U37 3/4" BSP
U50 1" BSP
P42 1" 3000 PSI SAE J518/ ISO 6162 Code 61
P52 1 1/2" 3000 PSI SAE J518/ ISO 6162 Code 61
G45 1 1/4" BSP
BA32 1/2" 6000 PSI SAE J518/ ISO 6162 Code 62
BA40 3/4" 6000 PSI SAE J518/ ISO 6162 Code 62
BA45 3/4" 6000 PSI SAE J518/ ISO 6162 Code 62
BA60 3/4" 6000 PSI SAE J518/ ISO 6162 Code 62
* Drain port connector must not extend internally beyond 10,5mm from end face.
** Drain port 2 threads: 7/8" UNF-14.
SH100/185T- SH160/215T - SH240/250TC - SH320/300TC - SH420/386TC - SH550/386TC

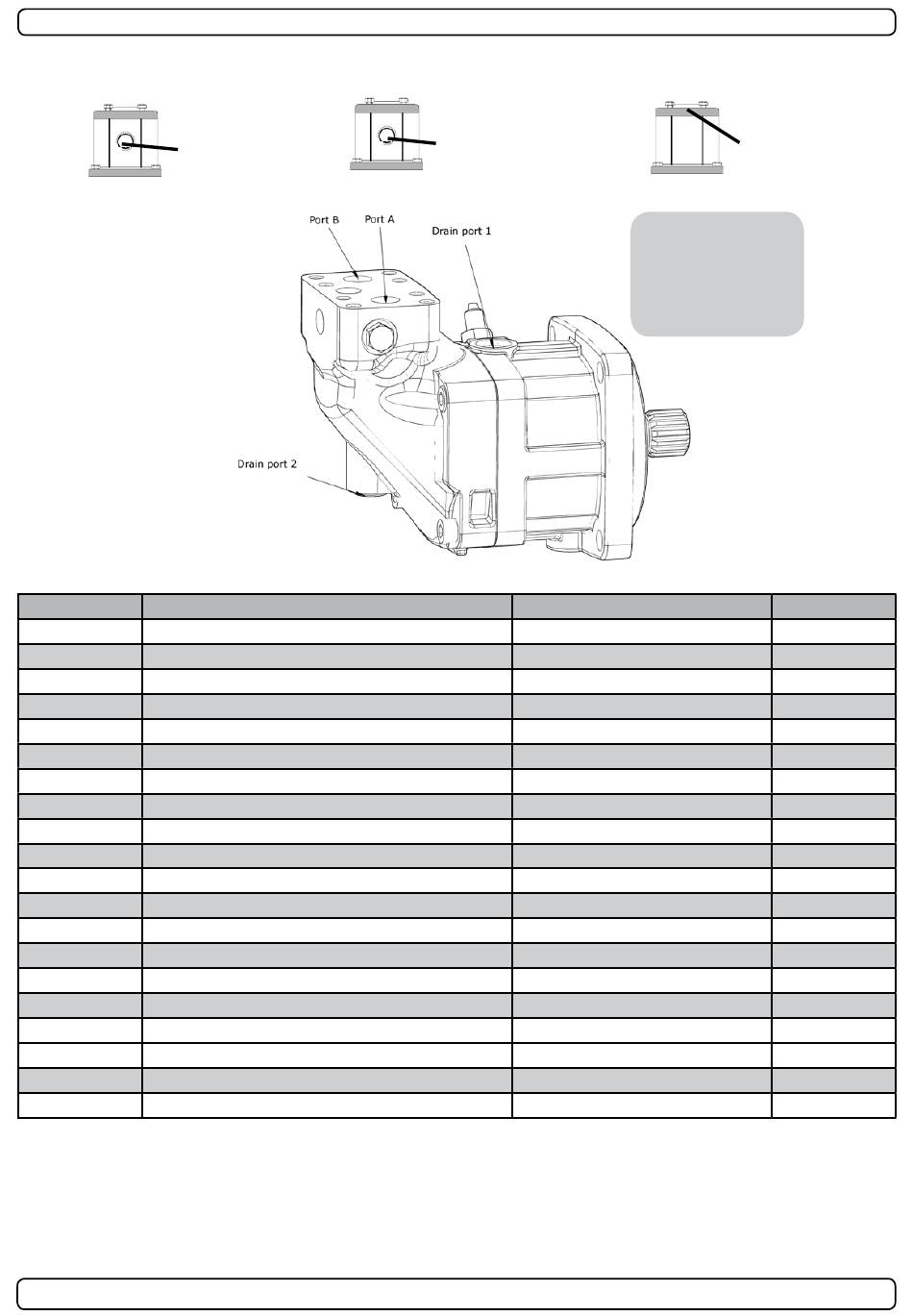

Requirements / Hydraulic hose connections to motor
Port A Port B
Port flange threads
3/8-16 UNC-2B, 22 deep
M12 x 1,75, 19 deep
5/16-18 UNC-2B, 18 deep
3/8-16 UNC-2B, 20 deep
3/8-16 UNC-2B, 21 deep
3/8-16 UNC-2B, 22 deep
Drain port
(Must be installed)
NOTE!
Always use upper
positioned drain port
for optimal lubrication
of the motor.
Drain port
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP
— 1/4" BSP*
— 1/4" BSP*
— 1/4" BSP*
— 1/4" BSP*
— 1/4" BSP*
— 1/4" BSP*
1/4" BSP*
1/4" BSP*
— 1/4" BSP*
3/4" UNF-16**
3/4" UNF-16
3/4" UNF-16
7/8" UNF-16
4
