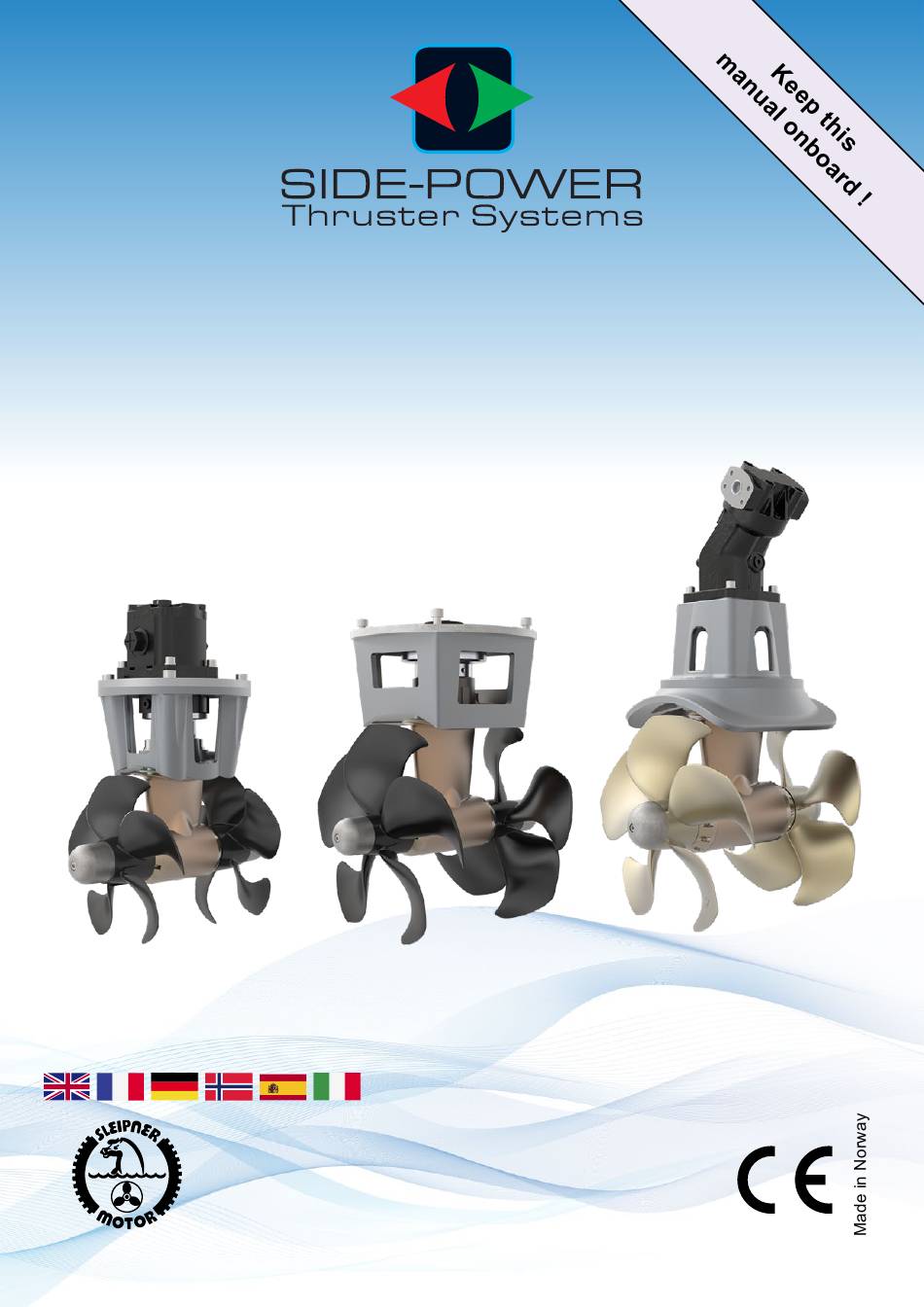

- Page 1 SH SERIES HYDRAULIC USER MANUAL To download your language go to www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Document id: 6032 www.side-power.com Revision: Date: 2019 © Sleipner Motor AS 2019...
-
Page 2: Table Of Contents
Contents Important User Considerations and Precautions ....3 User Manual Thruster Operation ..............4 Control Panel ................5 Proportional Thruster Display ............ 6 Proportional Thruster Display Symbols ........6 HOLD Function ................7 Calibration ................. 7 Warning Signals When Using ’HOLD’ Function ....7 - 8 MENU System ................ -
Page 3: Important User Considerations And Precautions
Important Thruster User Considerations and Precautions MC_0048 IMPORTANT Failure to follow the Considerations and precautions can cause serious injury / damage and will render all warranty given by Sleipner Motor AS VOID. • Always turn the main power switch off before touching any part of the thruster, as an incidental start while touching moving parts can cause serious injuries. -
Page 4: Thruster Operation
Turn on the main power switch for the bow thruster. (NB: Always turn off the main power switch when not onboard.) Turn on the control panel by pushing both “ON” buttons on the original Side-Power panel simultaneously. (NB: If another type of control is installed, push the On/Off... -
Page 5: Control Panel
Proportional Control Panel *Developed for Hydraulic Thrusters *Developed for DC and AC Thrusters Compatible for all DC and AC thrusters Not compatible for hydraulic thrusters Holding function for Holding function for auto running the auto running the thrusters together in thrusters together in Speed control joystick the direction of the... -
Page 6: Proportional Thruster Display
Proportional Thruster Display MC_0053 PJC221 PJC222 PJC211 PJC212 Status indicators for bow BOW-STB Status indicators for starboard thruster. (Port bow thruster bow thruster. Only shown in in a dual bow thruster setup). a dual bow thruster setup. Runtime indicator will be shown here Battery indicator will be in a single DC electric bow thruster shown here in a single DC... -
Page 7: Proportional Thruster Display Symbols
Proportional Thruster Display Symbols MC_0053 DC Thrusters: Motor temperature indicator. Battery indicator. From 70°C/ 158°F to 130°C/266°F. From 8.5V to 12V for 12V thrusters, 15V to 24V for 24V thrusters Symbol shown when a DC Thruster is used in a dual bow or dual stern setup: Battery indicator. -
Page 8: Hold Function
HOLD Function MC_0053 The ‘HOLD’ function is for auto-run ning of bow and stern thrusters together in the direction of the arrows at selected power. Press “+” for more and “-” for less power (6 steps). The ‘HOLD’ function is normally used to hold the boat into the dock while mooring. The ‘HOLD’ function can be deactivated by running any thruster in the opposite direction from any control unit. -
Page 9: Menu System
All system devices will be erased from memory. (Setup procedure must be followed to reconfi gure the system) STABILIZER (Shown only for yachts equipped with a Side-Power Stabilizer system) Press the button below to edit the selected parameter. ON/OFF will start to blink, use joystick to alter value. -
Page 10: Alarm Descriptions
Alarm Descriptions MC_0053 "Ext. buzzer "Err. "Auto Errors shown in display activation at Description Action Reset" No." Alert Level" ² Motor current too high. "Thruster must be serviced by author- Motor Overcurrent ized personnel, reset or power OFF/ON ¹ ." ²... - Page 11 Alarm Descriptions MC_0053 "Ext. buzzer "Err. "Auto Errors shown in display activation at Description Action No." Reset" Alert Level" Actuator Fault ² Actuator not getting any power "Check actuator connection or pow- er to actuator. Reset alarm in alarm menu on PJC 211/212/221/222 or recycle power."...
- Page 12 PHC-3 Alarm Descriptions MC_0117 Fault Code Description Cause Action -Limit the use of thruster 10500.0.10 PHC Oil Level - Level Low Hydraulic oil level is low -Inspect hydraulic oil level -Check system for leaks and refi ll hydraulic oil -Sensor not connected or wire break. -Verify sensor type in parameter 0201 10500.0.13 PHC Oil Level - Open Circuit...
- Page 13 PHC-3 Alarm Descriptions MC_0117 Fault Code Description Cause Action Digital Output 2 is confi gured as crossover and output is open -Check for open circuit, power consumption < 5.0 Watt 10517.0.13 PHC DOUT 2 - Open Circuit circuit -Output confi gured wrong, parameter 0502 10517.0.51 PHC DOUT 2 - Current High Digital Output 2 current higher than 4.0A...
-
Page 14: Maintenance
Maintenance MC_0047 ! Please refer to the graphic for special considerations relating to your model ! As a part of the seasonal service of your Thruster before every season, always check that: • The propeller is fastened securely to the gear leg. •... - Page 15 * 100 * 160 * 240 * 320 * 420 * 550 KEY: 1. Hydraulic Motor 2. Mounting Plate * 700 3. Motorbracket * 1000 4. Flexible coupling * 1400 5. Gear Leg (Pre filled) 6. Propeller 7. Anode 8. Drive pin 9.
-
Page 16: Checklist
Seasonal Checklist MC_0161 SEP user manual 6032 2019... -
Page 17: Spare Parts
Spare Parts MC_0024 For the most up to date documentation, we advise you to visit our website www.side-power.com for the spare parts list. Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. -
Page 18: Notes
Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SEP user manual 6032 2019... -
Page 19: Notes
Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SEP user manual 6032 2019... - Page 20 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SEP user manual 6032 2019...
- Page 21 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SEP user manual 6032 2019...
- Page 22 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................SEP user manual 6032 2019...
-
Page 23: Identifying Your Product
! Please refer to the graphic for special considerations relating to your model ! Sleipner Side-Power products are shipped with a unique identifi cation code and registered in our database for future service and repair assistance. To fi nd additional product information search the serial number attached in this manual below or from the sticker on the motor installed in your vessel. -
Page 24: Sleipner Motor As
Worldwide sales and service www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain.
