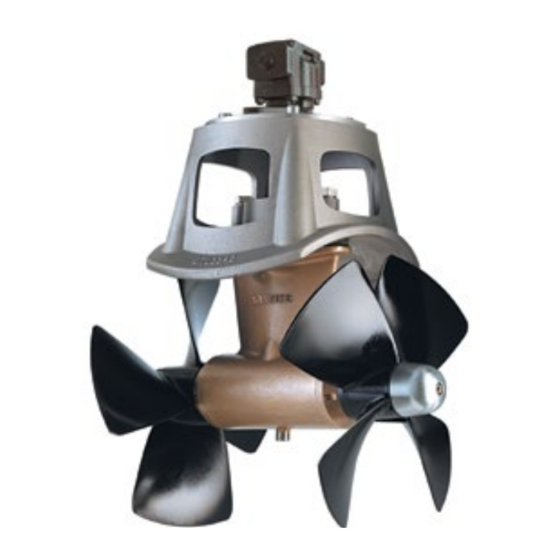

SIDE-POWER
Thruster Systems
Installation and user's manual
EN
Installations- und Bedienungsanleitung
D
Mechanical thruster installation only
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: +47 69 30 00 60
Fax:+47 69 30 00 70
SH 100/185 T
SH 160/215 T
SH240/250TC SP 300 HYD
SH420/386TC SH550/386TC
w w w. s i d e - p o w e r. c o m
sidepower@sleipner.no
© Sleipner Motor AS 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP 300 HYDSH420/386TC and is the answer not in the manual?

Questions and answers

Related Manuals for Side-Power SP 300 HYDSH420/386TC

Summary of Contents for Side-Power SP 300 HYDSH420/386TC

  • Page 1 SH 100/185 T SH 160/215 T SH240/250TC SP 300 HYD SIDE-POWER SH420/386TC SH550/386TC Thruster Systems Installation and user's manual Installations- und Bedienungsanleitung Mechanical thruster installation only SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w.

  • Page 2: Table Of Contents

    Contents Installation instructions User's manual Technical specifications ............3/4/5 Important user precautions ............24 Planning & important precautions..........6 How to use Sidepower thrusters..........25 Tunnel installation Warranty statement .............. 26 Positioning of the tunnel / thruster ..........7 Spareparts list & drawing ............ 27 How to shape the tunnel ends ...........

  • Page 3: Technical Specifications

    Waterline Port side Starboard side Waterline METRIC M E T R I C M E T R I C METRIC IMPERIAL I M P E R I A L I M P E R I A L IMPERIAL M E T R I C M E T R I C M E T R I C I M P E R I A L...
  • Page 4 Requirements / Hydraulic hose connections to motor U-motor: Port A Port B Drain port (Must be installed) BA-motor: NOTE! Always use upper positioned drain port for optimal lubrication of the motor. Motor type Port A/B Port flange threads Drain port 1/2"...
  • Page 5 Performance table 60 % 80 % 100 % 60 % 80 % 100 % or max thrust or max thrust Thruster Motor Thruster Motor model type model type L/min -Bar 18,8 21,7 24,2 L/min -Bar 41,0 47,0 47,8 USG-PSI 10.8 3147 12.4 4191...

  • Page 6: Planning & Important Precautions

    Planning and important precautions Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product.  This manual is intended to support educated / experienced staff and is therefore not sufficient in all details for the correct installation.  If the height in the room you are installing the Sidepower is limited, the Sidepower can be installed horizontally or at any angle in between.

  • Page 7: Positioning Of The Tunnel / Thruster

    Fig. 1 Pivot Fig. 3 point B = 10,0m A = 11,0m Fig. 2 Fig. 4 Ø Positioning of the tunnel / thruster Positioning of the tunnel / thruster Positionierung von Tunnel / Thruster Positionierung von Tunnel / Thruster The Thruster should be as far forward as possible (Fig. 1) The Thruster should be as far forward as possible (Fig.
  • Page 8 Fig. 1 Fig. 2 R = 0,1 x D (10%) R = 0,1 x D (10%) Fig. 3 Fig. 4 Tunnel ends Formgebung der Tunnelenden Tunnel ends Formgebung der Tunnelenden Rounded tunnel ends will maximize thrust and minimize Abgerundete Tunnelenden erhöhen die Schubkraft und Rounded tunnel ends will maximize thrust and mini- Abgerundete Tunnelenden erhöhen die Schubkraft und noise.

  • Page 9: Optimaler Strömungsverlauf Am Rumpf

    Fig. 1 Fig. 2 Fig. 3 Prevent drag from tunnel Prevent drag from tunnel Optimaler Strömungsverlauf am Rumpf Optimaler Strömungsverlauf am Rumpf A possible problem in sailboats or fast powerboats, is that they A possible problem in sailboats or fast powerboats, is that they get Segelboote und sehr schnelle Booten können gelegentlich durch Segelboote und sehr schnelle Booten können gelegentlich durch get a drag from the back face of the tunnel, as this becomes a...
  • Page 10 Fig. 1 Pos. A Pos. B Tunnel installation in sailboats Installation in Segelbooten Tunnel installation in sailboats Installation in Segelbooten Many sailboats have a racing type hull which means that it is very Many sailboats have a racing type hull which means that it is very Segelboote weisen häufig einen Rumpf in Rennform auf, was Segelboote weisen häufig einen Rumpf in Rennform auf, was flat bottomed and has a very shallow draft in the bow section.

  • Page 11: Installation Bei Serienproduktion

    Fig. 1 Fig. 2 Radius = D x 0,1 a1 a2 Fig. 3 Fig. 4 Series production installation Installation bei Serienproduktion Series production installation Installation bei Serienproduktion Boat builders having thrusters as standard, or delivering a large Boat builders having thrusters as standard, or delivering a large Hersteller die Thruster als Standard oder Modelle mit Bug- bzw.
  • Page 12 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Tunnel installation Tunnel installation Tunnelinstallation Tunnelinstallation We recomend that a professional does the fibreglass fitting We recomend that a professional does the fibreglass fitting of Wir empfehlen, die Glasfiberarbeiten von einem Fachmann Wir empfehlen, die Glasfiberarbeiten von einem Fachmann aus- of the tunnel.
  • Page 13 Fig. 1a Fig. 1c Fig. 1 Fig. 1b Fig. 1d Fig. 3 Fig. 2 R = D x 0,1 R = D x 0,1 Tunnel installation Tunnelinstallation Tunnelinstallation Tunnel installation Soften the edges with a radius of 10% of the tunnel diameter Soften the edges with a radius of 10% of the tunnel diameter (Fig.
  • Page 14 Fig. 1a SH100/185T Fig. 2 SH160/215T - SH240/250TC Fig. 1b BOATS BOATS CENTRELINE CENTRELINE TUNNELS CENTRELINE TUNNELS CENTRELINE Ø 9mm Ø 11,00mm 0,35" CENTRELINE 7/16" Ø 46,00mm 28,0mm Ø 32mm 1,81" 1,1" 40,0mm 1,26" 1,57" Fig. 4 Fig. 3 Bolt tightening forces: Bolts (2x) holding gearhouse to bracket: SH100: 17 Nm (12.4 lb/ft) SE80/100: 17 Nm (12,4 lb/ft)
  • Page 15 SP 300 HYD SP 220 HYD / SP 300 HYD Fig. 2 Fig. 1 SP 220 HYD BOATS CENTRELINE TUNNELS CENTRELINE Ø 11,00mm 7/16" Ø 46,00mm 1,81" 40,0mm Fig. 3 1,57" Fig. 1 Fig. 2 BOATS CENTRELINE SP 300 HYD Fig.

  • Page 16: Getriebe Und Motorhalterung

    SP 550 HYD SH420/SH550 TUNNELS BOATS CENTRELINE CENTRELINE Fig. 1 BOATS CENTRELINE Ø 11,00mm Fig. 1 Fig. 3 TUNNELS 7/16" CENTRELINE Fig. 3 Fig. 3 Ø 17mm TUNNELS 2/3" CENTRELINE Ø 83mm 70,0mm 3 1/4" 2 3/4" Ø 17mm 2/3" Ø...
  • Page 17 Document1 Snapshot Locktite SH240/250TC Fitting propeller(s) Montering av propeller Fitting propellers Propeller SH 100/185T, SH160/215T, SH240/250TC SH 100/185T, SH160/215T, SH240/250TC 1. Vri propellakselen så drivpinnen (5) står loddrett. Pinnen må stå midt i 1. Push the propeller onto the shaft, carefully rotate the propeller propellakselen.

  • Page 18: Ölvorratsbehälter & Propeller

    SP 300 HYD - SH420/SH550 SP 220 HYD / SP 300 HH HYD Fitting oil tank & propellers Ölvorratsbehälter & Propeller Fitting oil tank & propellers Ölvorratsbehälter & Propeller SP 220 HYD / SP 300 HYD / SP 550 HYD SP 220 HYD / SP 300 HYD / SP 550 HYD SP 300 HYD - SH420/SH550 SP 300 HYD - SH420/SH550...
  • Page 19 SH 100/185 T Fig. 1 Bolt tightening force (4x): 33 Nm (24 lb/ft) Fitting the hydraulic motor Einbau des Hydraulikmotors 1. Remove the 4 bolts in the motorbracket. 1. Die 4 Bolzen in der Motorhalterung enfernen. 2. Die Antriebsachse im Getriebegehäuse und die Motorachse 2.
  • Page 20 SH160/215T- SH240/250TC - SP 300 HYD SP 220 HYD / SP 300 HYD Fig. 1 Bolt tightening forces: Bolts (4x) holding motor to bracket: 33 Nm (24 lb/ft) Fitting the hydraulic motor Fitting the hydraulic motor Fitting the hydraulic motor Einbau des Hydraulikmotors Einbau des Hydraulikmotors Einbau des Hydraulikmotors...
  • Page 21 SH420/SH550 Fig. 1 Bolt tightening forces: 2x bolts (M 12) holding motor to adaptor plate: 57 Nm (42 lb/ft) 4x bolts (M 12) holding adaptor plate to bracket: 57 Nm (42 lb/ft) Fitting the hydraulic motor Fitting the hydraulic motor Einbau des Hydraulikmotors Einbau des Hydraulikmotors Fitting the hydraulic motor...

  • Page 22: Hydraulikmotor

    SH100/185T, SH160/215T, SH240/250TC, SP300HYD SH100/185 T - SP 220 HYD - SP 300 HYD SH420/SH550 SP 550 HYD Hydraulic motor Mounting plate Motorbracket for holding motor and gearhouse together on the tunnel. Flexible coupling secures the electromotor if propeller is jammed. Electromotor Changeable from inside the boat.
  • Page 23 Upper oil drain screw Lower drain screw Oil change SH240 Ölwechsel SH240 1. See maintenace chapter for intervals and oil type 1. Siehe maintenace Kapitel Intervalle und Öltyp 2. To drain the gearleg unscrew lower oil drain screw 2. Um die gearleg abschrauben unteren Ölablassschraube entleeren 3.
  • Page 24 Checklist (only for thruster) Checkliste (nur für Thruster) Propeller is fastened correctly to the shaft. Der Propeller ist korrekt auf der Achse befestigt.   Propeller turns freely in tunnel. Der Propeller läßt sich frei im Tunnel drehen.   Lower-unit is filled with gearoil.

  • Page 25: Important User Precautions

    Important user precautions Important user precautions Wichtige Benutzerhinweise Wichtige Benutzerhinweise Always turn the main power switch off before touching any part Vor Arbeiten am Thruster oder in dessen Umgebung immer  Always turn the main power switch off before touching any ...

  • Page 26: Garantieerklärung

    Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years (Leisure Use) or one year (Commercial use) from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.
  • Page 27 Spare parts SH100/185T SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 28 Spare parts SH160/215T SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 29 Spare parts SH240/250TC SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 30 Spare parts SP300 HYD SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 31 Spare parts SH420/386TC SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 32 Spare parts SH550/386TC SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 33 SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 34 SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 35 SH100/185T- SH160/215T - SH240/250TC - SP 300 HYD - SH420/386TC - SH550/386TC Version 3.6 - 2016...
  • Page 36 SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 Fax:+47 69 30 00 70 www.side-power.com sidepower@sleipner.no The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain.
