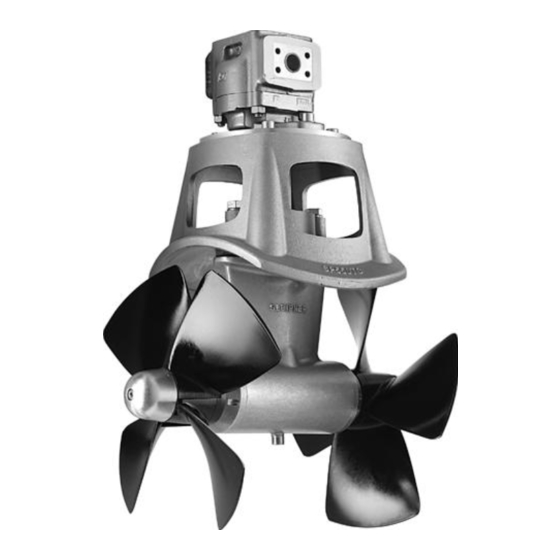

Side-Power SH 100/185 T Installation And User Manual
  1. Manuals
  2. Brands
  3. Side-Power Manuals
  4. Outboard Motor
  5. SP 550 HYD
  6. Installation and user manual

Side-Power SH 100/185 T Installation And User Manual

Hide thumbs Also See for SH 100/185 T:
Table of Contents

Advertisement

Quick Links

SIDE-
POWER
Thruster systems
Installation and user's manual
GB
Installations- und Bedienungsanleitung
D
Mechanical thruster installation only
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
Tel: +47 69 30 00 60
Fax:
SH 100/185 T
SH 160/215 T
SP 220 HYD/SP 300 HYD
SP 550 HYD
+47 69 30 00 70
w w w. s i d e - p o w e r. c o m
sidepower@sleipner.no
© Sleipner Motor AS 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH 100/185 T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Side-Power SH 100/185 T

Summary of Contents for Side-Power SH 100/185 T

  • Page 1 SH 100/185 T SIDE- SH 160/215 T POWER SP 220 HYD/SP 300 HYD SP 550 HYD Thruster systems Installation and user's manual Installations- und Bedienungsanleitung Mechanical thruster installation only SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway Tel: +47 69 30 00 60 w w w.

  • Page 2: Table Of Contents

    Installation instructions User's manual Technical specifications ............3/4 Important user precautions ............23 Planning & important precautions..........5 How to use Sidepower thrusters..........23 Tunnel installation Warranty statement .............. 24 Positioning of the tunnel / thruster ..........6 Spareparts list & drawing ............ 25 How to shape the tunnel ends ...........

  • Page 3: Installation Instructions Technical Specifications

    Waterline Port side Starboard side Waterline M E T R I C M E T R I C M E T R I C METRIC I M P E R I A L I M P E R I A L I M P E R I A L IMPERIAL M E T R I C...
  • Page 4 Requirements / Hydraulic hose connections to motor Port A Drain port Port B (Must be installed) Motor type Port A Drain port Port B 1/2" BSP 1/4'' BSP 1/2" BSP 1/2" BSP 1/4'' BSP 1/2" BSP U-10 3/4" BSP 1/4'' BSP 3/4"...

  • Page 5: Planning & Important Precautions

    Planning and important precautions Prior to installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product.  This manual is intended to support educated / experienced staff and is therefore not sufficient in all details for the correct installation.  If the height in the room you are installing the Sidepower is limited, the Sidepower can be installed horizontally or at any angle in between.

  • Page 6: Positioning Of The Tunnel / Thruster

    Fig. 1 Pivot Fig. 3 point B = 10,0m A = 11,0m Fig. 2 Fig. 4 Ø Positioning of the tunnel / thruster Positioning of the tunnel / thruster Positionierung von Tunnel / Thruster Positionierung von Tunnel / Thruster The Thruster should be as far forward as possible (Fig. 1) The Thruster should be as far forward as possible (Fig.

  • Page 7: How To Shape The Tunnel Ends

    Fig. 1 Fig. 2 R = 0,1 x D (10%) R = 0,1 x D (10%) Fig. 3 Fig. 4 Tunnel ends Formgebung der Tunnelenden Tunnel ends Formgebung der Tunnelenden Rounded tunnel ends will maximize thrust and minimize Abgerundete Tunnelenden erhöhen die Schubkraft und Rounded tunnel ends will maximize thrust and mini- Abgerundete Tunnelenden erhöhen die Schubkraft und noise.

  • Page 8: How To Prevent Drag From Tunnel Installation

    Fig. 1 Fig. 2 Fig. 3 Prevent drag from tunnel Prevent drag from tunnel Optimaler Strömungsverlauf am Rumpf Optimaler Strömungsverlauf am Rumpf A possible problem in sailboats or fast powerboats, is that they A possible problem in sailboats or fast powerboats, is that they get Segelboote und sehr schnelle Booten können gelegentlich durch Segelboote und sehr schnelle Booten können gelegentlich durch get a drag from the back face of the tunnel, as this becomes a...

  • Page 9: Possible Tunnel Installation In Sailboats

    Fig. 1 Pos. A Pos. B Tunnel installation in sailboats Installation in Segelbooten Tunnel installation in sailboats Installation in Segelbooten Many sailboats have a racing type hull which means that it is very Many sailboats have a racing type hull which means that it is very Segelboote weisen häufig einen Rumpf in Rennform auf, was Segelboote weisen häufig einen Rumpf in Rennform auf, was flat bottomed and has a very shallow draft in the bow section.

  • Page 10: Series Production Installation

    Fig. 1 Fig. 2 Radius = D x 0,1 a1 a2 Fig. 3 Fig. 4 Series production installation Installation bei Serienproduktion Series production installation Installation bei Serienproduktion Boat builders having thrusters as standard, or delivering a large Boat builders having thrusters as standard, or delivering a large Hersteller die Thruster als Standard oder Modelle mit Bug- bzw.

  • Page 11: Tunnel Installation In A Grp Boat

    Fig. 1 Fig. 2 Fig. 3 Fig. 4 Tunnel installation Tunnel installation Tunnelinstallation Tunnelinstallation We recomend that a professional does the fibreglass fitting We recomend that a professional does the fibreglass fitting of Wir empfehlen, die Glasfiberarbeiten von einem Fachmann Wir empfehlen, die Glasfiberarbeiten von einem Fachmann aus- of the tunnel.
  • Page 12 Fig. 1a Fig. 1c Fig. 1 Fig. 1b Fig. 1d Fig. 3 Fig. 2 R = D x 0,1 R = D x 0,1 Tunnel installation Tunnelinstallation Tunnelinstallation Tunnel installation Soften the edges with a radius of 10% of the tunnel diameter Soften the edges with a radius of 10% of the tunnel diameter (Fig.
  • Page 13 Fitting gearhouse and motor bracket Fitting gearhouse and motor bracket Getriebe und Motorhalterung SH 100/185 T & SH160/215T SH 100/185 T 1. Mark the centreline of the tunnel and the boats centreline. 1. Marker båtens og tunnelens senterlinje på tunnelen.

  • Page 14: Getriebe Und Motorhalterung

    SP 220 HYD / SP 300 HYD Fig. 2 Fig. 1 SP 220 HYD BOATS CENTRELINE TUNNELS CENTRELINE Ø 11,00mm 7/16" Ø 46,00mm 1,81" 40,0mm Fig. 3 1,57" Fig. 2 BOATS CENTRELINE SP 300 HYD Fig. 4 TUNNELS CENTRELINE Bolt tightening forces: Ø...
  • Page 15 SP 550 HYD BOATS CENTRELINE Fig. 1 Fig. 3 TUNNELS CENTRELINE Ø 17mm 2/3" Ø 83mm 70,0mm 3 1/4" 2 3/4" Fig. 2 Fig. 4 Bolt tightening forces: Bolts (2x) holding gearhouse to bracket: 150 Nm (109 lb/ft) Fitting gearhouse and motor bracket Getriebe und Motorhalterung Fitting gearhouse and motor bracket Getriebe und Motorhalterung...

  • Page 16: Oil Tank & Propeller

    Montering av propeller Fitting propellers Propeller SH 100/185 T & SH160/215T SH 100/185 T & SH160/215T 1. Vri propellakselen så drivpinnen (5) står loddrett. Pinnen må stå midt i 1. Push the propeller onto the shaft, carefully rotate the propeller propellakselen.

  • Page 17: Ölvorratsbehälter & Propeller

    SP 220 HYD / SP 300 HYD / SP 550 HYD Fitting oil tank & propellers Ölvorratsbehälter & Propeller Fitting oil tank & propellers Ölvorratsbehälter & Propeller SP 220 HYD / SP 300 HYD / SP 550 HYD SP 220 HYD / SP 300 HYD / SP 550 HYD SP 220 HYD / SP 300 HYD / SP 550 HYD SP 220 HYD / SP 300 HYD / SP 550 HYD 1.
  • Page 18 SH100/185T & SH160/215T SH 100/185 T SH 100/185 T Fig. 1 Fig. 1 Bolt tightening force (4x): Bolt tightening force (4x): 33 Nm (24 lb/ft) 33 Nm (24 lb/ft) Fitting the hydraulic motor Fitting the hydraulic motor Einbau des Hydraulikmo...
  • Page 19 SP 220 HYD / SP 300 HYD Fig. 1 Bolt tightening forces: Bolts (4x) holding motor to bracket: 33 Nm (24 lb/ft) Fitting the hydraulic motor Einbau des Hydraulikmotors Fitting the hydraulic motor Einbau des Hydraulikmotors 1. Remove the 4 bolts in the motorbracket. 1.
  • Page 20 SP 550 HYD Fig. 1 Bolt tightening forces: 2x bolts (M 12) holding motor to adaptor plate: 57 Nm (42 lb/ft) 4x bolts (M 12) holding adaptor plate to bracket: 57 Nm (42 lb/ft) Fitting the hydraulic motor Einbau des Hydraulikmotors Fitting the hydraulic motor Einbau des Hydraulikmotors 1.

  • Page 21: Maintenance & Service

    SH100/185 T - SP 220 HYD - SP 300 HYD SP 550 HYD Hydraulic motor Mounting plate Motorbracket for holding motor and Electromotor gearhouse together on the tunnel. Directional solenoids Flexible coupling secures the electromotor if propeller is jammed. Motorbracket for holding motor and Changeable from inside the boat.

  • Page 22: Checklist For Control Of The Installation

    Checklist (only for thruster) Checkliste (nur für Thruster) Propeller is fastened correctly to the shaft. Der Propeller ist korrekt auf der Achse befestigt.   Propeller turns freely in tunnel. Der Propeller läßt sich frei im Tunnel drehen.   Lower-unit is filled with gearoil.

  • Page 23: Important User Precautions

    Important user precautions Important user precautions Wichtige Benutzerhinweise Wichtige Benutzerhinweise Always turn the main power switch off before touching any part Vor Arbeiten am Thruster oder in dessen Umgebung immer  Always turn the main power switch off before touching any ...

  • Page 24: Warranty Statement

    Warranty statement 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period.

  • Page 25: Spareparts List & Drawing

    Spareparts SP 100 HYD Spareparts SH100/185T SE 100/185 T SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008 2.4 - 2007...
  • Page 26 Spareparts SH160/215T Spareparts SP 100 HYD SE 100/185 T SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008...
  • Page 27 Spareparts SP 220 HYD SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008 2.4 - 2007...
  • Page 28 Spareparts SP 300 HYD SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008 2.4 - 2007...
  • Page 29 Spareparts SP 550 HYD SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD SH100/185T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008 2.4 - 2007...
  • Page 30 SIDE- POWER Thruster systems SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008...
  • Page 31 SIDE- POWER Thruster systems SH100/185T- SH160/215T - SP 220 HYD - SP 300 HYD - SP 550 HYD 2.5 - 2008...

  • Page 32: Service Centres

    Hørsholm Strömstad Icici All other: Tel: +47 69 30 00 60 • Fax: +47 69 30 00 70 • sidepower@sleipner.no • www.side-power.com Tel: +39 02 488 531 Tel: +45 4576 3600 Tel: +46 526 629 50 Tel: +385 51 704 500...
