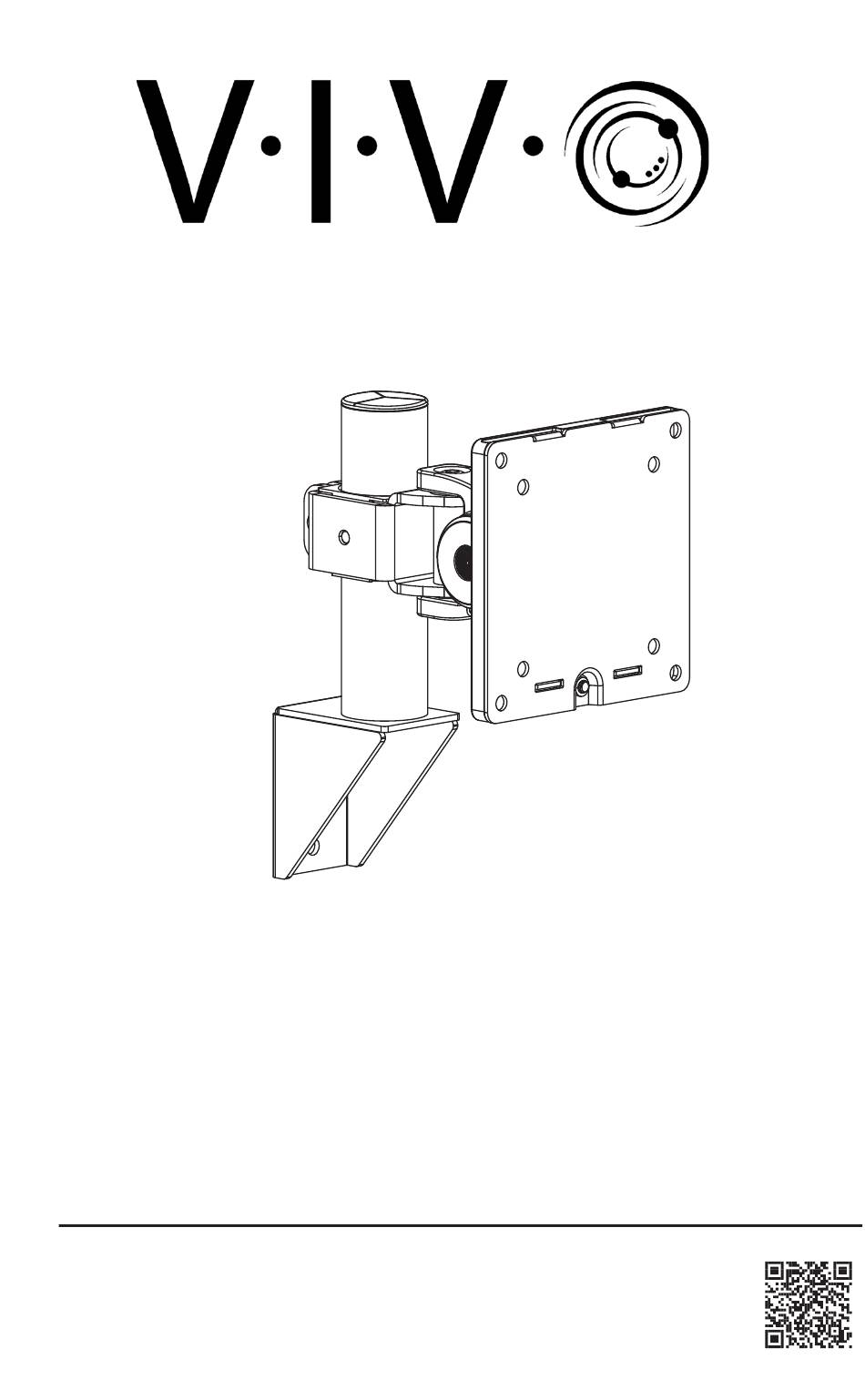

- Page 1 Single Ultrawide Monitor Wall Mount SKU: MOUNT-WCB01A Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/mount-wcb01a...
-
Page 2: Weight Capacity
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Package Contents
Package Contents A (x1) B (x1) Wall Mount VESA Bracket Included Hardware & Tools M-C (x4) M-A (x4) M-B (x4) M5 Washer M4x12mm M5x12mm Screw Screw W-A (x3) W-B (x3) ST6.3x55mm M6 Washer Screw T-A (x1) 6mm Allen Wrench Tools Needed Drill 3/16”... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Hold Wall Mount (A) against the wall in the desired location, and use a pencil to mark drilling locations. Note: Use of a stud finder and level is recommended. Using a ⅜” drill bit, drill approximately 60mm (2.4”) into marked locations. - Page 5 STEP 2 Secure Wall Mount (A) to wall using ST6.3x55mm Screws (W-A) and M6 Washer (W-B) and 10mm socket wrench. STEP 3 Slide VESA Bracket (B) on to the pole of Wall Mount (A) and secure at desired height using 6mm Allen Wrench (T-A).
- Page 6 STEP 4 Loosen the Thumbscrew (B2) on the back of VESA Bracket (B1), then separate and remove VESA Plate (B3) by pulling out and sliding upwards. Install the VESA Plate (B3) onto the back of your monitor using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) and M5 Washers (M-C), orienting the arrow on the VESA Plate pointing up.
- Page 7 STEP 5 Adjusting the Tilt Joint Adjustment Screw Loosen Tilt Joint: Set Angle Use 6mm Allen Wrench (T-A) to Firmly grip the VESA Bracket and loosen the Adjustment Screw, adjust to your desired viewing located on the side of VESA angle, and hold in place.
- Page 8 STEP 6 With the assistance of a second person, line up the VESA Plate (B3) on your monitor with the VESA Bracket and the Plate Hooks into the pockets of the VESA Bracket (B1). Monitor & VESA Bracket may need to be angled backwards slightly when sliding on. Secure in place using previously removed Thumbscrew (B2).
- Page 9 Fine Tune Tilt Angle If the monitor is angled further than intended... Heavy Weighted/ Ultrawide Monitors [ 22lbs - 44lbs ] Firmly Hold Monitor Firmly grasp and hold the monitor in place. Do NOT release monitor until you have completed steps below. Loosen Tilt Joint: With a hand still on the monitor, use 6mm Allen Wrench (T-A) to loosen the...
- Page 10 STEP 7 Make adjustments as desired on swivel and orientation. If further height adjustment is needed, use 6mm Allen Wrench (T-A) to loosen VESA Bracket (B) and adjust height, then tighten Bracket again to secure.
- Page 11 [THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK]...
- Page 12 LAST UPDATED: 04/09/24 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
