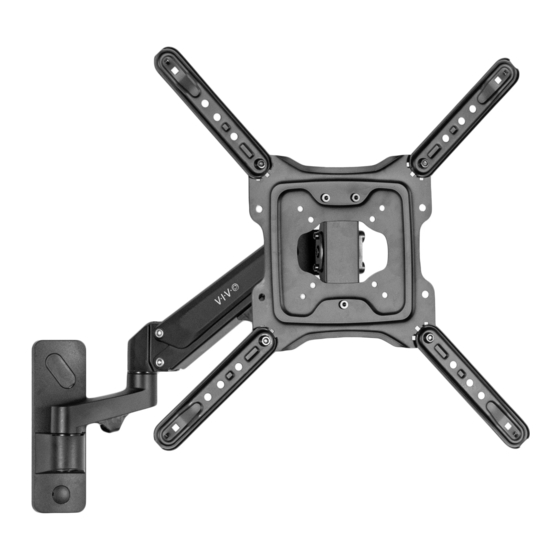

Premium aluminum tv wall mount
Hide thumbs Also See for MOUNT-G400B:

Advertisement

Quick Links

Premium Aluminum TV Wall Mount
Instruction Manual
SKU: MOUNT-G400B
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-g400b
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOUNT-G400B and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo MOUNT-G400B

  • Page 1 Premium Aluminum TV Wall Mount Instruction Manual SKU: MOUNT-G400B Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-g400b GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
  • Page 3: Assembly Steps

    ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall OPTION B: Concrete Wall Using the wall plate on the arm (A), mark Using the wall plate on the arm (A), mark drilling drilling locations. Use of a stud finder is highly locations.
  • Page 4 STEP 3 Remove lower nut from VESA plate (B) using the wrench (H), and loosen the upper two nuts until 3mm of screw thread is exposed for each one. STEP 4 Mount VESA extensions (C) to VESA plate (B) in one of the patterns shown using carriage bolts (G) and nuts (F), and tighten with the wrench.
  • Page 5 STEP 5 OPTION A: Flat Back Monitor Mount VESA plate (B) to TV using bolts (M-A or M-B) with washers (M-F or M-G), making sure the two nuts are facing towards the top of the TV. OPTION B: Curved Back Monitor Mount VESA plate (B) to TV using bolts (M-C, M-D, M-E) with washers (M-G) and spacers (M-H, M-I) in one of the configurations shown, making sure the two nuts are facing towards the top of the TV.
  • Page 6 STEP 7 Reinstall lower nut to secure the plate, and tighten all nuts using the wrench. STEP 8 Adjust gas spring tension using the 6mm Allen wrench (J). Turn counter-clockwise to increase lift, and clockwise to decrease. Adjust the tilt joint support using the 4mm Allen wrench (I). NOTE: use a large flat-blade screwdriver to tighten the socket set screw if the joint makes a popping noise.
  • Page 7 STEP 9 Use built in cable clips to manage cables. Adjust as Desired...
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
