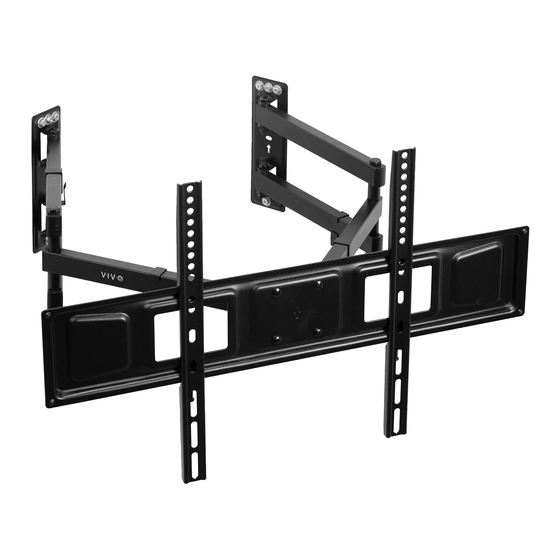

Corner TV Wall Mount
Instruction Manual
SKU: MOUNT-CR70C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-cr70c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-CR70C
Summary of Contents for Vivo MOUNT-CR70C
- Page 1 Corner TV Wall Mount Instruction Manual SKU: MOUNT-CR70C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-cr70c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A: Wood Stud Wall Installation Use Mount (A) to mark mounting holes on the wall where studs are located. Use of a stud finder and a level is highly recommended. Using a 3/16” (4.5mm) drill bit, drill holes at least 2.2” (55mm) deep into marked locations. - Page 4 STEP 1 (Continued) OPTION B: Concrete/Brick Wall Installation Use Mount (A) to mark mounting holes on the wall. Using a 3/8” (10mm) drill bit, drill holes at least 2.4” (60mm) deep into marked locations. Press Concrete Anchors (W-B) into holes, then attach Mount (A) to wall using Screws (W-A) with Washers (W-C).
- Page 5 STEP 2 With the TV face down on a flat surface, secure VESA Brackets (B) to the TV using Screws (M-A through M-E), Washers (M-F) and Spacers (M-G, M-H).
- Page 6 STEP 3 Hang Vesa Brackets (B) onto Mount (A), and secure by tightening security screws on the underside of VESA Brackets (B) using a phillips screwdriver.
- Page 7 STEP 4 Manage cables using cable clips located on Mount (A). STEP 5 Use Wrench (T-A) to adjust the tilt and rotation to the desired positions.
- Page 8 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
