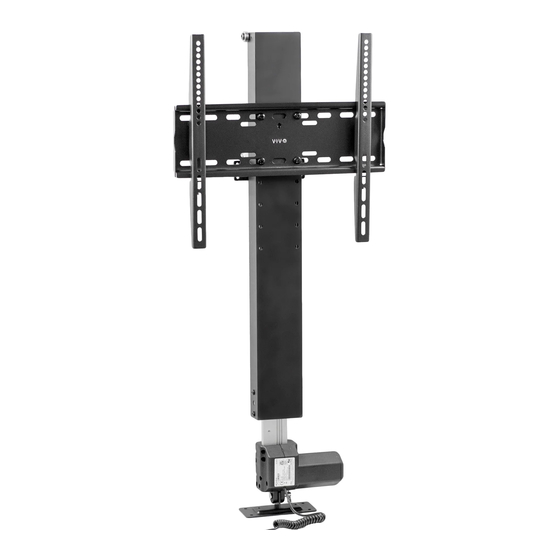

Motorized TV Stand with Remote Control
Instruction Manual
SKU: MOUNT-E-UP44
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-e-up44
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-E-UP44
Summary of Contents for Vivo MOUNT-E-UP44
- Page 1 Motorized TV Stand with Remote Control Instruction Manual SKU: MOUNT-E-UP44 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-e-up44 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 Connect the control unit (H) and power cord (I) to the motorized column (A) and plug into a power outlet. STEP 2 STEP 3 Raise the column to the maximum height Mount the TV plate (B) at your desired height using the remote (J). - Page 4 STEP 4 Lower the column to the minimum height using the remote. STEP 5 Place the column in the cabinet and, making sure the column is sitting perfectly straight and level, mark drilling locations. Drill 0.6” (15mm) deep holes using a ⅛” (3mm) drill bit. Please note, if cabinet has a hinged lid, the hinge must be on the back of the cabinet for the lid to be properly opened by the mount.
- Page 5 STEP 6 Separate baseplate from column by removing the lock and pin. Mount baseplate to cabinet floor using 5/8” screws (G). Reinstall column to baseplate, and secure to cabinet wall using 5/8” screws (G). STEP 7 STEP 8 Use adhesive pad (L) to mount remote holder Place remote in holder when not in use.
- Page 6 STEP 9 OPTION A: Flat Back TV Mount VESA brackets (C) to back of TV using bolts (M-A or M-B) and washers (M-F). OPTION B: Curved Back TV Mount VESA brackets (C) to back of TV using bolts (M-C, M-D, M-E), washers (M-F) and spacers (M-G, M-H) in one of the combinations shown.
- Page 7 STEP 10 Raise column to maximum height using the remote. Install cable clip (K) to side of column. Hang TV with VESA brackets onto mounting plate. Secure TV by tightening the screws underneath the VESA brackets. Use the cable clip to organize cables. STEP 11 Operate mount using the remote.
