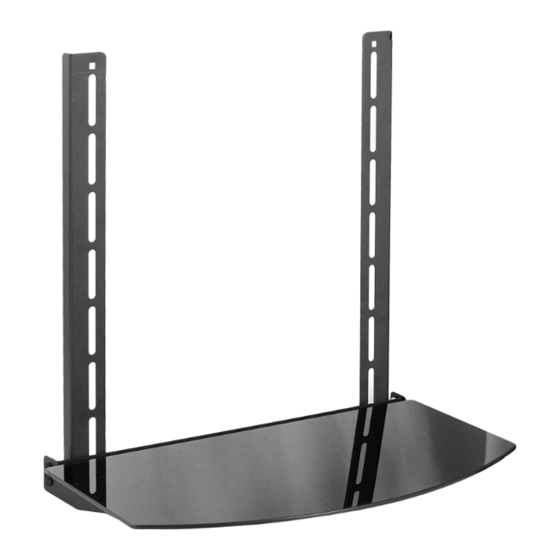

Under/Above TV Glass VESA Shelf
Instruction Manual
SKU: MOUNT-SF04R
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-sf04r
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo MOUNT-SF04R
Summary of Contents for Vivo MOUNT-SF04R
- Page 1 Under/Above TV Glass VESA Shelf Instruction Manual SKU: MOUNT-SF04R Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-sf04r GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 OPTION A Insert M6 bolts (9) through the sides of the horizontal bracket (3) making sure the screw thread is facing out, and place a plastic washer (10) on each one. Install the right and (4, 5) by placing onto the bolts, then secure using another plastic washer, M6 washer (8) and M6 nut (7) on each bolt. - Page 4 STEP 2 OPTION A Assemble the horizontal bracket (3) to the lower or upper holes of the VESA brackets (2) using M6 bolts (9), x2 M6 washers (8) and x2 M6 nuts (7), making sure the small flat side on each VESA bracket is facing out.
- Page 5 STEP 3 OPTION A Apply x3 adhesive pads (6) to the top of each support bracket, then place the shelf (1) on top, making sure the shelf is straight and centered. OPTION B...
- Page 6 STEP 4 OPTION A Mount the assembled shelf to the TV. If TV will be installed to a VESA mount, place the shelf brackets between the TV and VESA mount. (Please note, mounting screws are not included with the shelf). NOTE: Only if mounting to TV with 400mm wide VESA pattern, some VESA mounts will require the shelf brackets to be installed behind the...
- Page 7 STEP 5 OPTION A To adjust the tilt angle, loosen the lower M6 nut on each side, adjust to desired angle, then re-tighten. NOTE: It is recommended to set 5 degrees above the desired tilt to compensate for any bracket settling OPTION B...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
