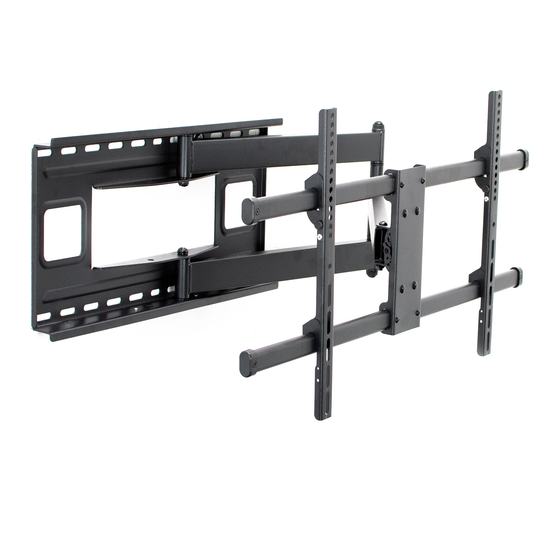

Long Arm TV Wall Mount
Instruction Manual
SKU: MOUNT-VW080L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-vw080l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-VW080L
Summary of Contents for Vivo MOUNT-VW080L
- Page 1 Long Arm TV Wall Mount Instruction Manual SKU: MOUNT-VW080L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw080l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303. - Page 4 STEP 2 With the TV face down on a flat surface, secure the VESA brackets (C) to the TV using bolts (M-A, M-B, M-C, M-D, M-E) and square washers (M-F). Use spacers (M-G, M-H) between the TV and brackets if needed.
- Page 5 STEP 3 Hang the VESA brackets with TV onto the mount, making sure all 4 hooks are engaged with the horizontal bars. Flip the security bracket on each VESA bracket up, and insert the thumbscrews (D) to secure. STEP 4 Route cables through the cable clip on the arm.
- Page 6 STEP 5 Adjust the TV leveling if needed by slightly loosening the four nuts in the back with the wrench (F). Check TV level using the included bubble level (G), and retighten the nuts. STEP 6 To adjust the TV tilt angle, slightly loosen the knob and two bolts on the side as shown using the Allen wrench (E).
- Page 7 STEP 7 Adjust the TV position as desired. Please note that when folding the arm back to the wall, the rear arm must be facing to the left and the front arm to the right for the TV to be centered.
