Made in America
Thank you for purchasing this instrument from Intellitronix. We value our customers!
Always disconnect the battery before attempting any electrical work on your vehicle.

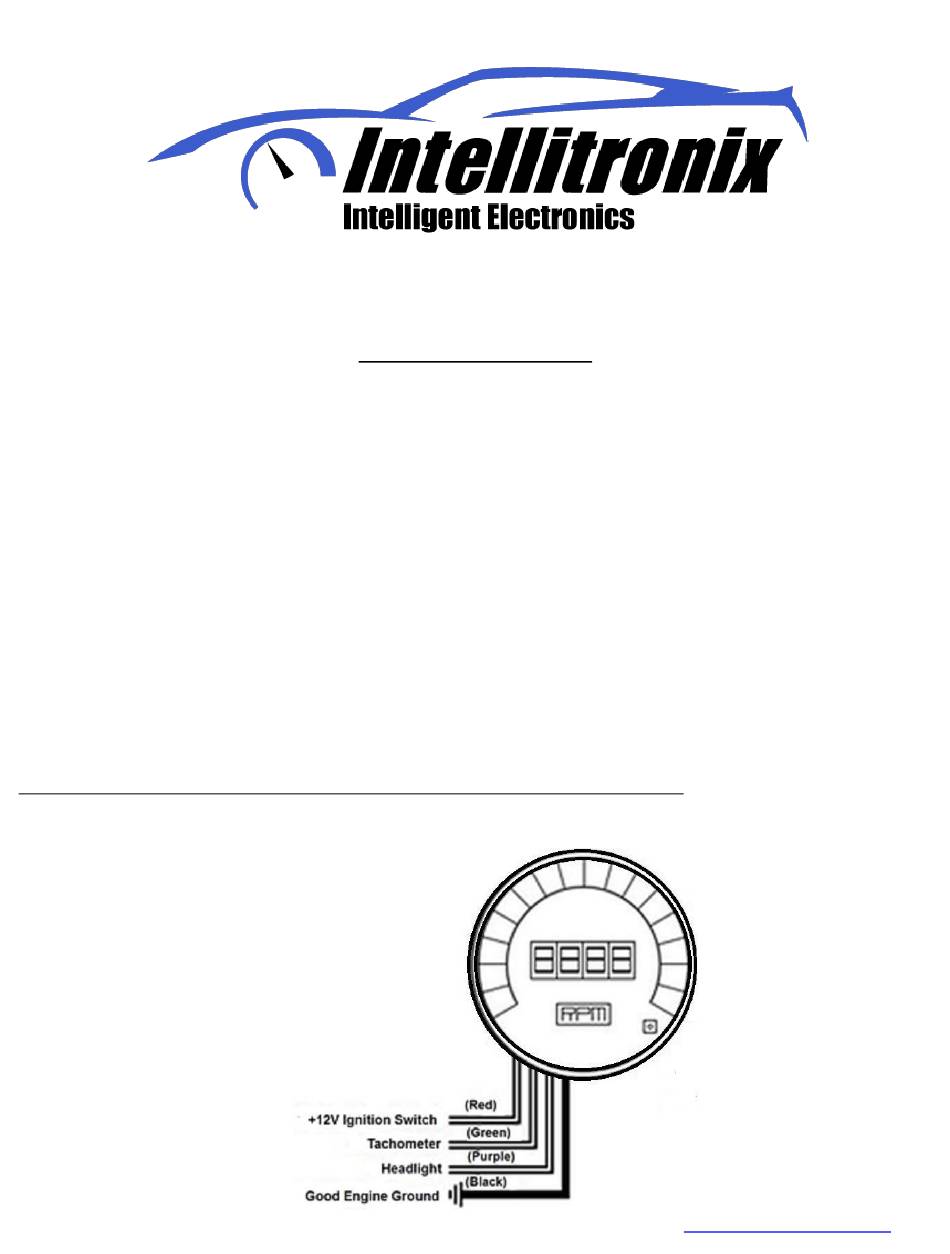

WIRING INSTRUCTIONS
Note: Automotive circuit connectors are the preferred method of connecting wires. However, you
may also solder if you wish.
TACHOMETER INSTRUCTIONS
Our Digital Tachometer requires a signal from your ignition system, from either the negative
terminal of your coil or a direct tach output lead from the distributor or electronic control module.
In order to isolate the signal wire from electrical noise interference, we recommend all tachometer
wires be routed as far away from any other voltage or signal carrying wires as possible, especially
spark plug wires. SEE BELOW FOR MORE INSTRUCTION.
This tachometer is initially calibrated for use with 8 Cylinder engines. If you are using it with a
1,2,4,6,8,10, or 12 Cylinder engine, you must recalibrate the tach for your specific application by
Direction below to set up the tach programs.
M9001
1
INSTALLATION GUIDE
LED Digital Bar Graph Memory Tachometer Part
Number: M9001
Intellitronix
Lifetime Guarantee
(rev. 08/24/2019)
www.intellitronix.com
Advertisement
Related Manuals for Intellitronix M9001
Summary of Contents for Intellitronix M9001
- Page 1 Made in America Lifetime Guarantee Thank you for purchasing this instrument from Intellitronix. We value our customers! INSTALLATION GUIDE LED Digital Bar Graph Memory Tachometer Part Number: M9001 Always disconnect the battery before attempting any electrical work on your vehicle.
- Page 2 Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer.
-
Page 3: Lifetime Guarantee
Note: If doing a LS engine swap, pick up the tach signal wire from the ECM/ECU and then set the tach switch to 4-cylinders. You may also need to order the Intellitronix LS Engine Swap Adapter Kit – for Series 1, 2 and 3 engines. The part number is 8014LS. If you are getting the tach signal from the ECU, the resistor in the adapter kit will help pull a stronger signal for the tachometer. - Page 4 CHECK OUT THE SUPPORT PAGE AT www.intellitronix.com FOR QUICK ANSWERS (Q&A) TO YOUR QUESTIONS This product carries a limited Lifetime Warranty. This warranty is limited to replacement or repair of the unit at the discretion of Intellitronix. M9001 Intellitronix www.intellitronix.com...
- Page 5 RETURN POLICY PROCEDURES Return Policy Instructions 1. Download the Intellitronix Return/Repair Form and fill in the information on the form about the product. 2. Place the product being returned in the original packaging that it came in and include a copy of the completed Intellitronix Return/Repair Form.
