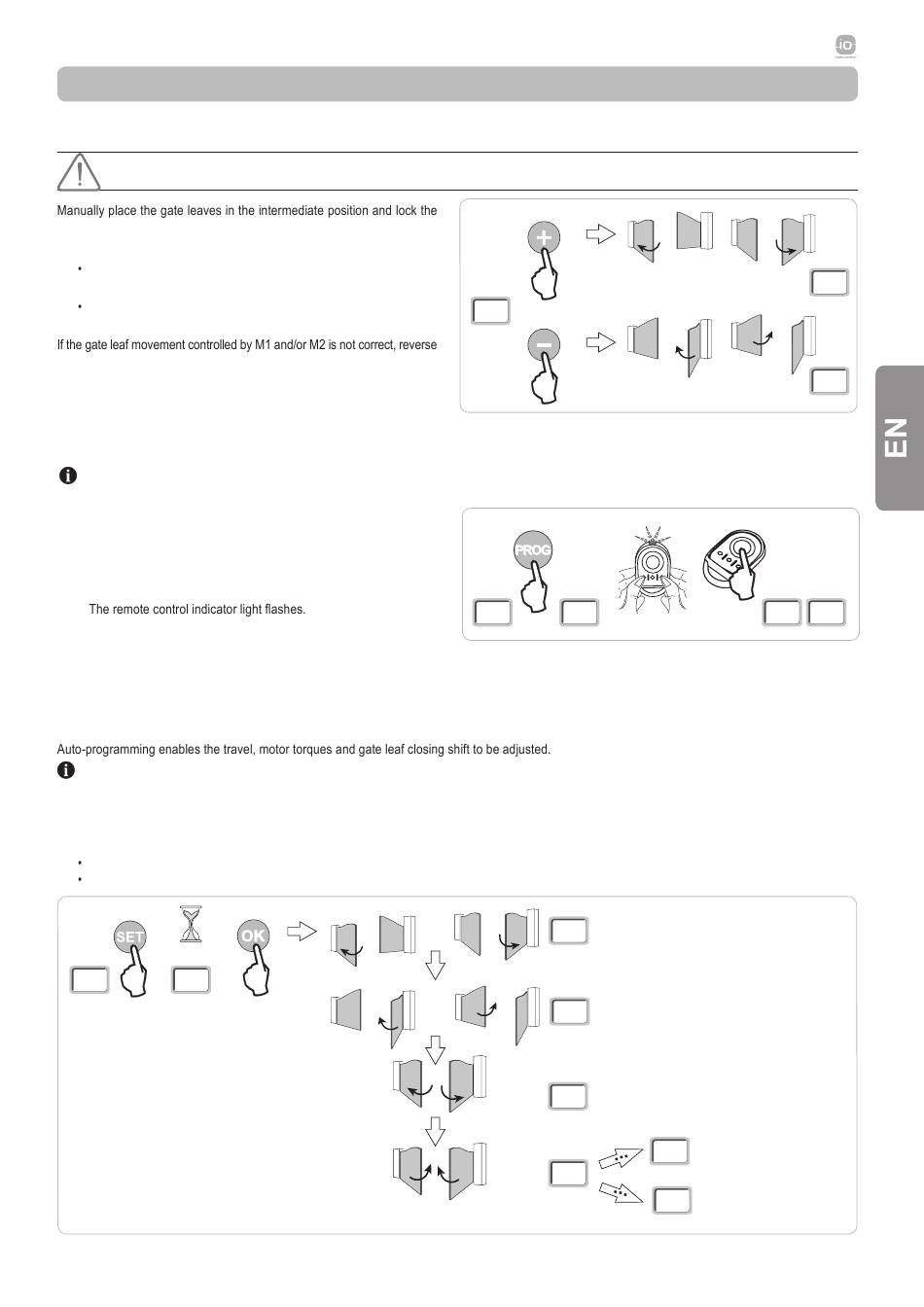

QUICK COMMISSIONING

Check the motor wiring and the opening direction of the gate leaves
During this operation, secure the area and prevent anyone from entering it.
motors.
Actuate the motors by pressing and holding the "+" or "-" button.
"+" opens the gate leaf controlled by M1 then the gate leaf controlled
by M2.
"-" closes the gate leaf controlled by M2 then the gate leaf controlled
by M1.
the M1 wires on terminals 11 and 12 and/or the M2 wires on terminals 14
and 15.

Memorising the Keygo io remote controls for operation in complete opening mode

To memorise Keytis io type bidirectional remote controls, see pages 16 and 17.
If this procedure is carried out using a channel which has already been
memorised, this channel will be cleared.
[1]. Press and hold the "PROG" button (2 s) on the programming interface.
The screen displays "F0".
[2]. Press the outer left and right buttons on the remote control
together.
[3]. Press the button of the remote control that will open the
gate fully.
The screen displays "Add".

Auto-programming

Place the gate leaves in the intermediate position.
[1]. Press and hold the "SET" button (2 s).
release the button when the screen displays "H1".
[2]. Press "OK" to start auto-programming.
The gate performs two complete Opening and Closing cycles.
If auto-programming is correct, the display indicates "C1".
If auto-programming has not completed correctly, the display indicates "H0".
[1] [2]
2 s
H0 H1
2 s
