Diagnostics; Operating Code Display; Programming Code Display - SOMFY CONTROL BOX 3S io Installation Instructions Manual

Control Box 3S io

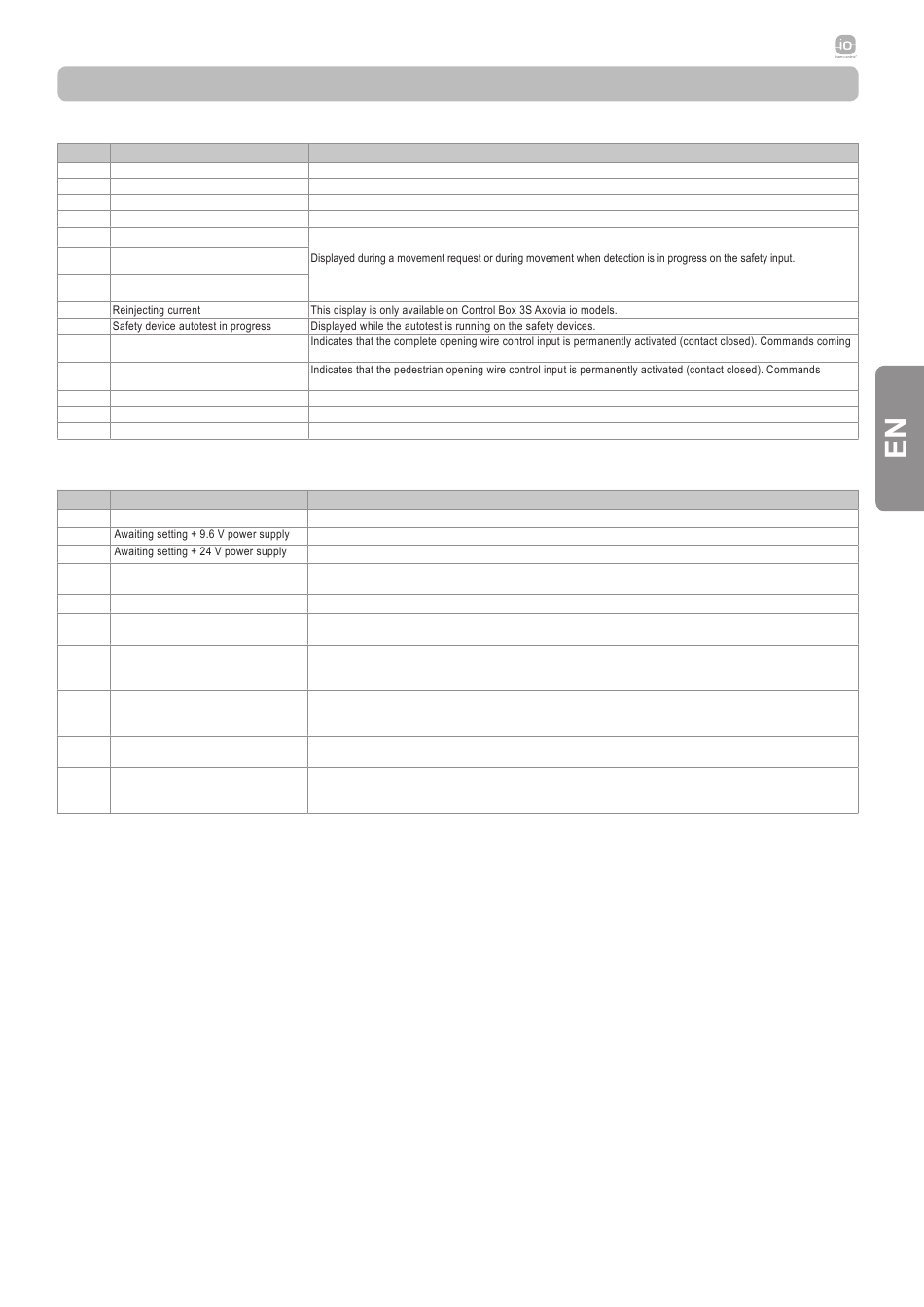

DIAGNOSTICS

Operating code display

Code Description
C1 Awaiting command
C2 Gate opening
C3 Awaiting gate closure
C4 Gate closing
C6 Detection in progress for cell safety
Detection in progress for programmable
C8
safety
Detection in progress for emergency
C9
stop safety
C12
C13
Permanent complete opening wire
C14
control input
Permanent pedestrian opening wire
C15
control input
C16 BUS cell programming refused
9.6 V power supply
Cc1
24 V power supply
Cu1

Programming code display

Code Description
H0 Awaiting setting
Hc1
Hu1
H1 Awaiting start of auto-programming
H2 Auto-programming mode - opening
H4 Auto-programming mode - closing
F0 Awaiting remote control memorisation for
operation in complete opening mode
F1 Awaiting remote control memorisation for
operation in pedestrian opening mode
F2 Awaiting remote control memorisation for
remote lighting control
F3 Awaiting remote control memorisation for
auxiliary output control
Copyright © 2015 Somfy SAS. All rights reserved
Comments
Automatic closing time delay P02, P04 or P05 in progress.
The display appears for as long as detection is in progress on the safety input.
from the radio remote controls are then disabled.
coming from the radio remote controls are then disabled.
Check that the BUS cells (wiring, alignment, etc.) are operating correctly
Displayed during operation with 9.6 V backup battery
Displayed during operation with 24 V backup battery
Comments
Pressing and holding the "SET" button for 2 seconds starts auto-programming mode.
Displayed during operation with 9.6 V backup battery
Displayed during operation with 24 V backup battery
Pressing the "OK" button starts the auto-programming cycle.
Pressing the "+" or "-" button allows the motor to be controlled in forced operation mode.
Pressing a button on the remote control allocates this button to the motor complete opening control.
Pressing "PROG" once more switches to "awaiting remote control memorisation for operation in pedestrian opening
mode: F1".
Pressing a button on the remote control allocates this button to the motor pedestrian opening control.
Note: Dedicated operation in pedestrian opening mode one a single button is only possible on Keygo io models.
Pressing "PROG" once more switches to "awaiting remote lighting control memorisation: F2".
Pressing a button on the remote control allocates this button to the remote lighting control.
Pressing "PROG" once more switches to "awaiting auxiliary output control memorisation: F3".
Pressing a button on the remote control allocates this button to the auxiliary output control.
Pressing "PROG" once more switches to "awaiting remote control memorisation for operation in complete opening
mode: F0".
