Control Box 3S io

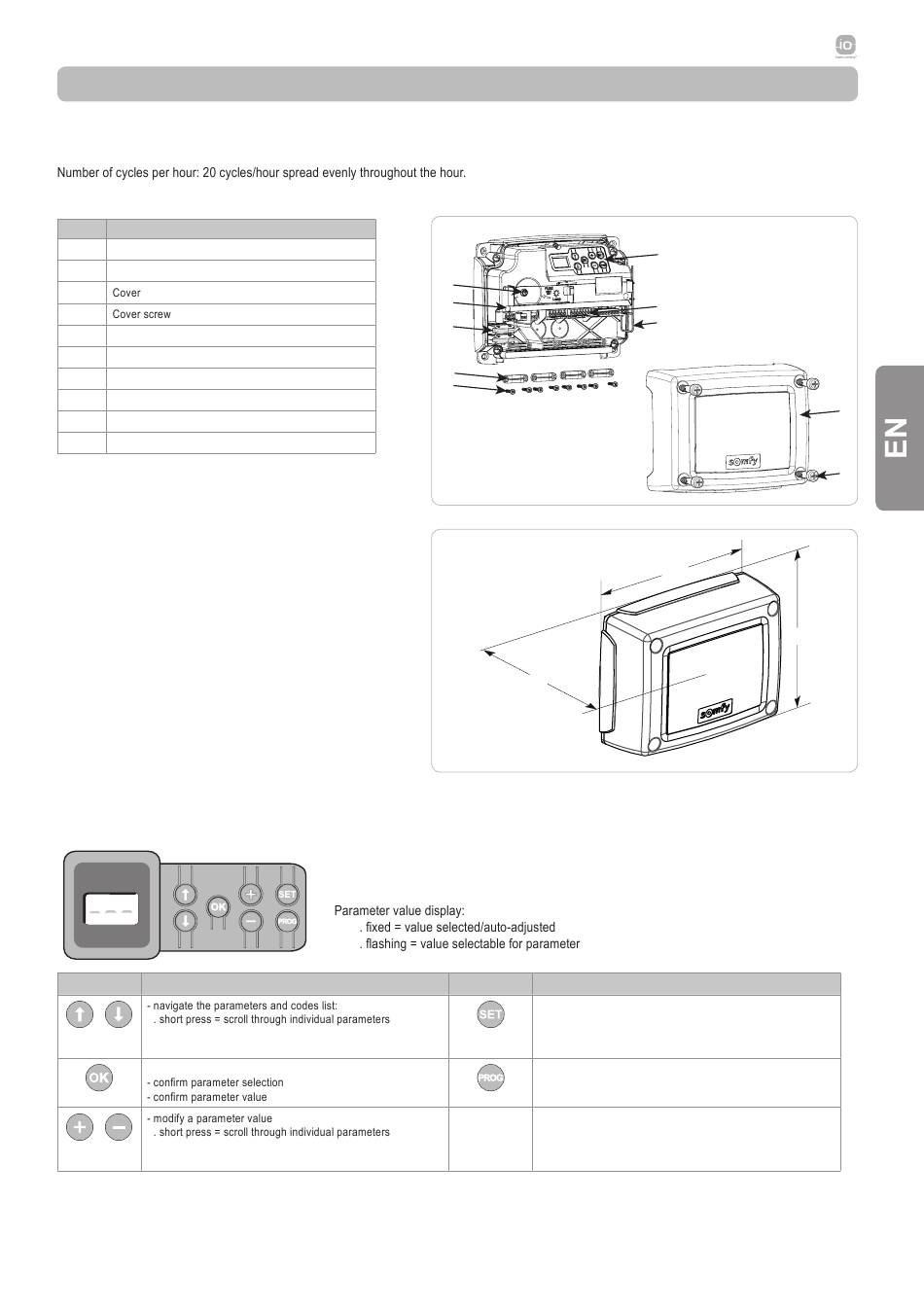

PRODUCT DESCRIPTION

Area of application

The CONTROL BOX 3S is designed to control one or two Somfy 24V motors for opening and closing gates.

Composition of the kit

No. Description
1 Programming interface
2 Plug-in terminals
3
4
5 Keygo io remote controls
6 Cable clip
7 Cable clamp bolt
8 Aerial
9 Fuse (250 V/5 A) for 230 V lighting output
10 Spare fuse (250 V/5 A)

Space requirements

Description of the interface

Button Function
. press and hold = scroll rapidly through parameters
- start auto-programming cycle
. press and hold = scroll rapidly through parameters
- use of forced operating mode
Copyright © 2015 Somfy SAS. All rights reserved
9
10
5
6
7
3-digit LCD screen
Display of parameters, codes (operation, programming, faults and breakdowns) and
memorised data.
Button
1
2
8
225
90
Function
- Press 0.5 s: access and exit the parameter setting menu
- Press 2 s: trigger auto-programming
- Press 7 s: clear auto-programming and parameters
- interrupt auto-programming
- Press 2 s: memorise the remote controls
- Press 7 s: clear all remote controls
3
4
180
