Control Box 3S io

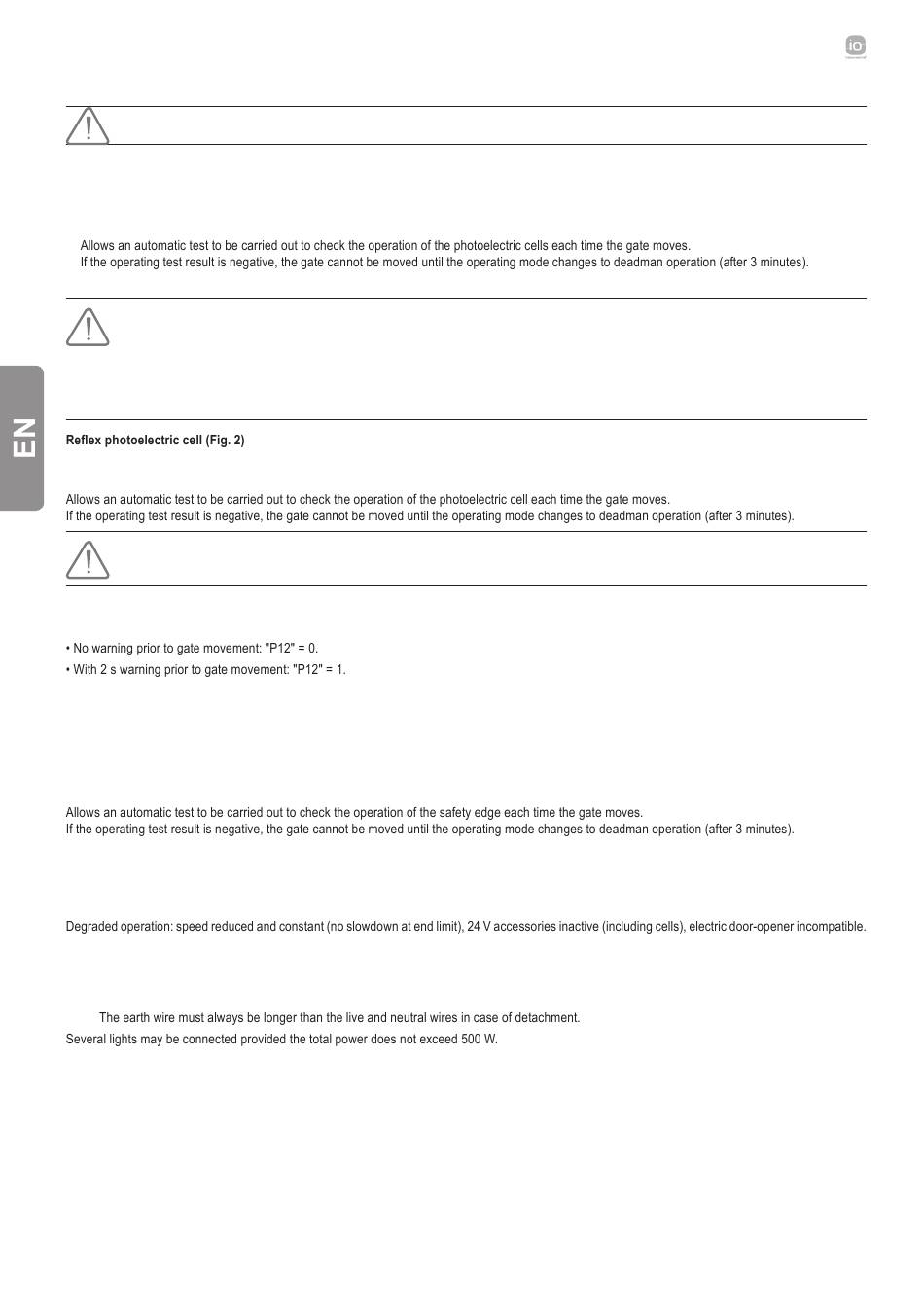

Description of the various additional devices

The peripheral cables must be secured using the cable clamps supplied.
Photoelectric cells (Fig. 1)
Three types of connection are possible:
A: Without autotest: programme parameter "P07" = 1.
B: With autotest: programme parameter "P07" = 3.
C: BUS: programme parameter "P07" = 4. Auto-programming must be repeated after the cell BUS has been connected.
If cells are removed, it is essential to create the bridge between terminals 23 and 24.
It is compulsory to install photoelectric cells if:
- the automatic control device is being controlled remotely (user unable to see it),
- automatic closing is activated (P01 = 1, 3 or 4).
It is compulsory to install photoelectric cells WITH AUTOTEST (P07 = 3 or 4) if the automatic control device is being controlled by a
Tahoma control box.
Without autotest: programme parameter "P07" = 1.
With autotest: programme parameter "P07" = 2.
It is compulsory to install photoelectric cells WITH AUTOTEST (P07 = 2) if the automatic control device is being controlled by a Tahoma
control box.
Orange light (Fig. 3)
Programme parameter "P12" according to the required operating mode:
Connect the aerial cable to terminals 33 (conductor) and 34 (braid).
Wired code keypad (Fig. 4)
Aerial (Fig. 5)
Safety edge (Fig. 6)
With autotest: programme parameter "P09" = 2.
Lock (Fig. 7)
Not operational using backup battery power.
Battery (Fig. 8)
Life: 3 cycles/24 hrs
Area lighting (Fig. 9)
For class I lighting, connect the earth wire to terminal 3 or 4.
Note:
9
