Console Operation

Centre Section Metering

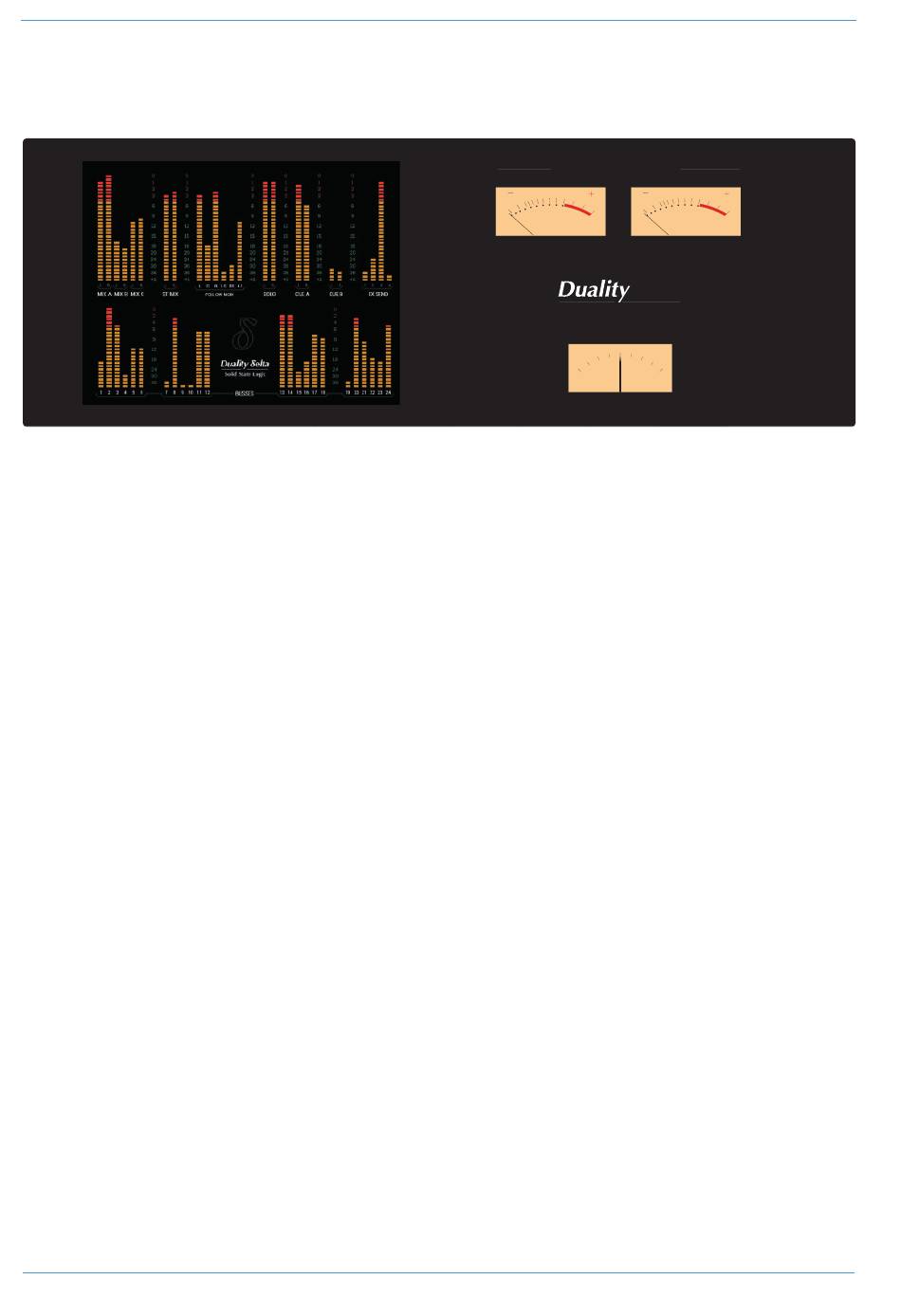

The panel above the main centre section features LCD and analogue metering for the console's main and auxiliary outputs:
On the left of the centre section meter bridge are six sets of LCD bargraphs. These are dedicated to the metering of (from
left to right) the following busses:
AL, AR, BL, BR, CL, CR MAIN MIX (when working in 5.1, these become L, R, C, LF, LS, RS)
-
L, R ST MIX (downmix)
-
L, C, R, LS, RS, LF FOLLOW MON (monitor)
-
L, R SOLO, AFL, PFL bus
-
L, R CUE A and CUE B
-
1-4 FX SENDs
-
1-24 Track BUSSES
-
The standard scale is +24dB for 0dB FS (top of the scale). Options for different 0dB FS levels are available via the SSL /
MISC / SETUP menu (see next page).
To the right of the bargraphs are two VU meters and a phasemeter. These meter the Left and Right outputs of three mix
busses, as selected via the METERS menu (see next page).
2-40
MON ST MIX MIX A SOLO
3 2 1
0
5 5
1
7 7
10 10
2
20 20
3
vu
LEFT
Fuse
Solid State Logic • Oxford • England
0
- +
PHASE
Duality Fuse Operator's Manual
3 2 1
0
1
2
3
vu
RIGHT
