Fusion Processing

Transformer

Fusion features a custom-designed SSL TRANSFORMER circuit, which is engaged via the front panel transformer
switch. This circuit does a number of things: The 600Ω, 1:1 winding transformer and surrounding circuitry adds low-
end harmonic content and a favourable slight top-end phase-shift to the sound. Furthermore, the underdamping
of the transformer adds a subtle 'weight' to the sound. It is worth noting that the drive of the transformer circuit is
self-contained, so there is no advantage in driving the Input stage of Fusion to achieve more level through the transformer.
Also, as is inherent with transformer designs, extreme low-end frequencies begin to be rolled off, the more level is put through
- so bear this in mind. Typically, a level of +16dBu will see a 0.5dB roll off between 40Hz and 30Hz and this is quite often (but
not always!) welcome in keeping the bottom-end in check. Experiment with engaging the transformer at any point during the
mixing process to see if it makes the mix sound better (it often does).

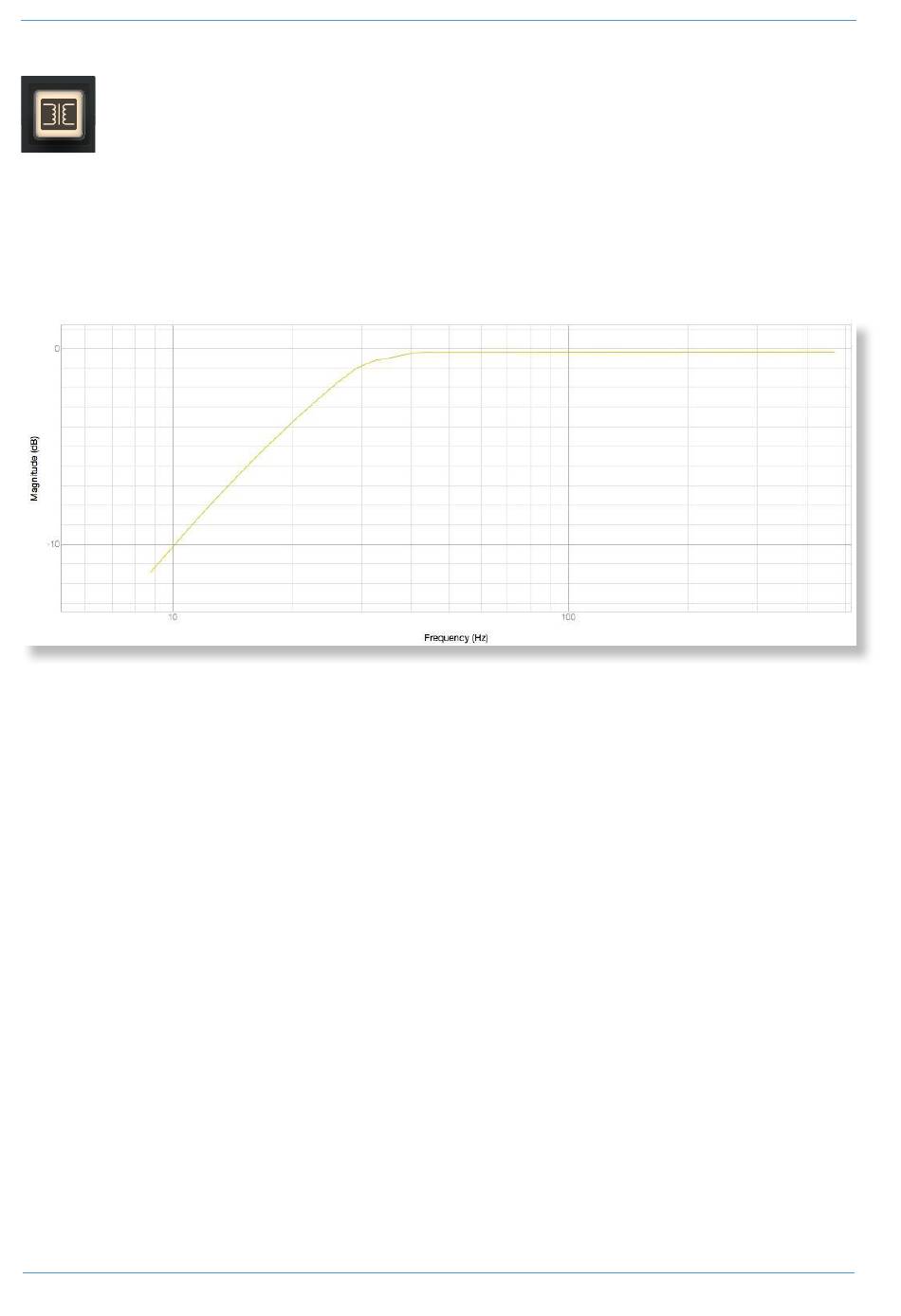

Typical Low Frequency Rolloff of Transformer with +16dBu on input.
