Duality Fuse Operator's Manual

Introduction

Duality Fuse's Split Mode enables the channel processing to be easily applied to channel input
signals feeding the DAW record path or to the DAW returns. This provides the equivalent of
in-line operation but without the complexity of separate channel and monitor paths.
Users who are familiar with SSL's range of in-line consoles will soon realise that the channel
strip faders can control virtual faders on the workstation as well as the channel signal path,
in many ways paralleling the large/small fader configuration of an in-line channel strip. This
provides an alternative to Split Mode working, with the DAW console handling the functions
of a monitor mixer.
The channel supports two input connections, the MONITOR Input which is normally sourced
from the output of the DAW, and the CHANNEL input which accepts variable level signals
from a microphone, DI box or other audio source. Three preamps are available for use with
either input: a unity gain line level buffer which is normally assigned to the DAW return, and
a pair of mic preamps sourced from the CHANNEL input XLR connector, one using SSL's
Super Analogue direct coupled DC servo circuitry, and the other featuring SSL's proprietary
VHD™ (Variable Harmonic Drive) valve emulation gain stage. The channel output can route
to 24 Track Busses, any one of three stereo Main Mix Busses (A, B and C) or all the Main Mix
Busses in 5.1 mode.
In addition to two Cue Stereo sends and four mono FX Sends, a dedicated Direct Output (CH
OP) is provided. Each channel has comprehensive routing for EQ and filter, dynamics, and
insert send/return points.

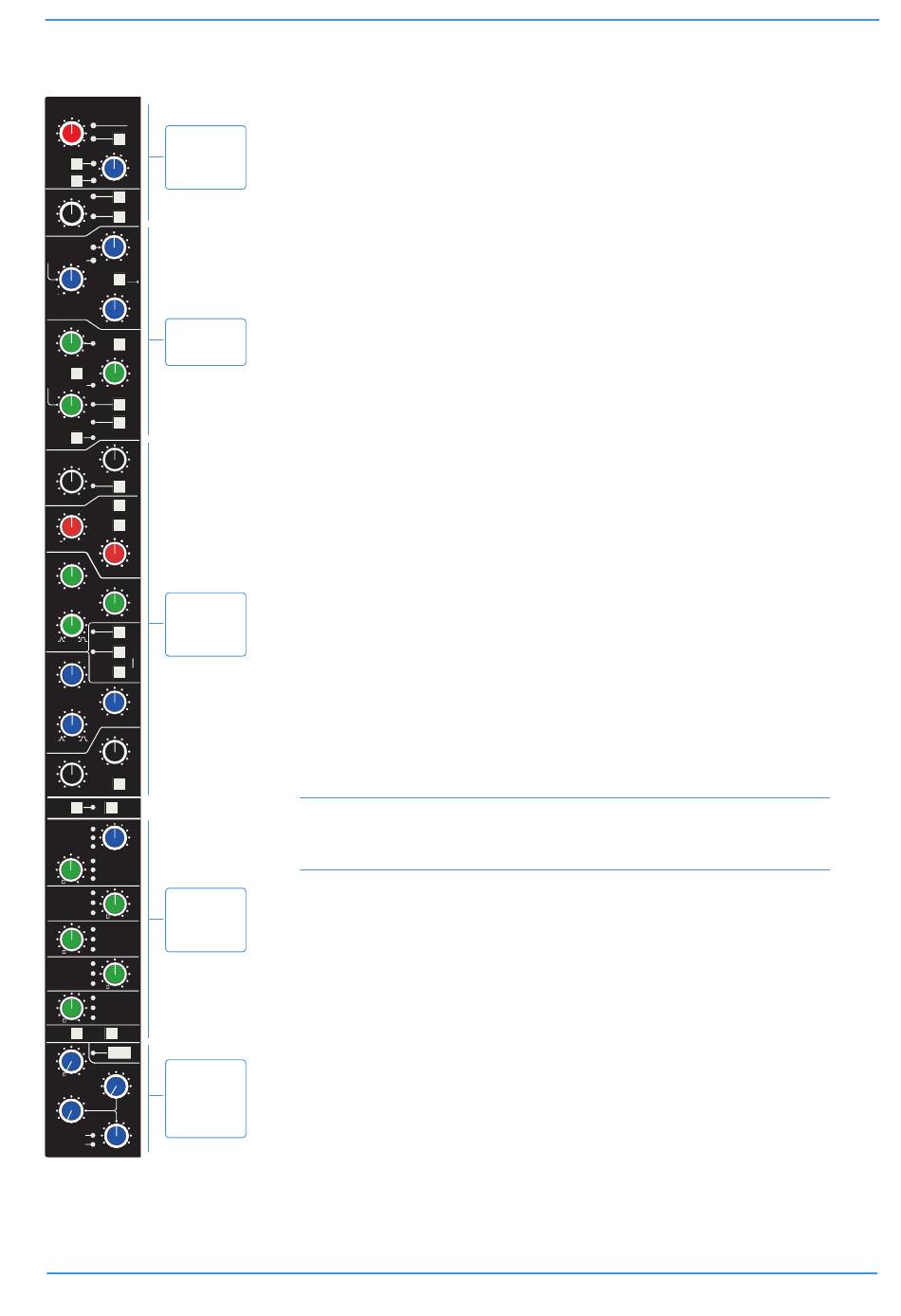

The channel strip can be divided into five distinct functional sections (see left):
1. 1. Channel input
2. 2. Dynamics
3. 3. EQ and filter
4. 4. Cue Stereo and FX outputs
5. 5. Channel output pan
Note that a number of channel parameters are adjusted via the Central Routing Panel in
the Centre Section, described later in this section. This panel is assigned to a channel
by pressing the SELECT button at the base of the channel's fader.
Beneath the channel strips is a panel containing the 'V-pot' for DAW output or channel level
control. This area also houses cut and solo buttons for both fader and V-pot, and an electronic
scribble strip. Finally, below the electronic scribble strip, each channel has a long-throw
(100mm) moving fader.
