Mackie Function Control Overview

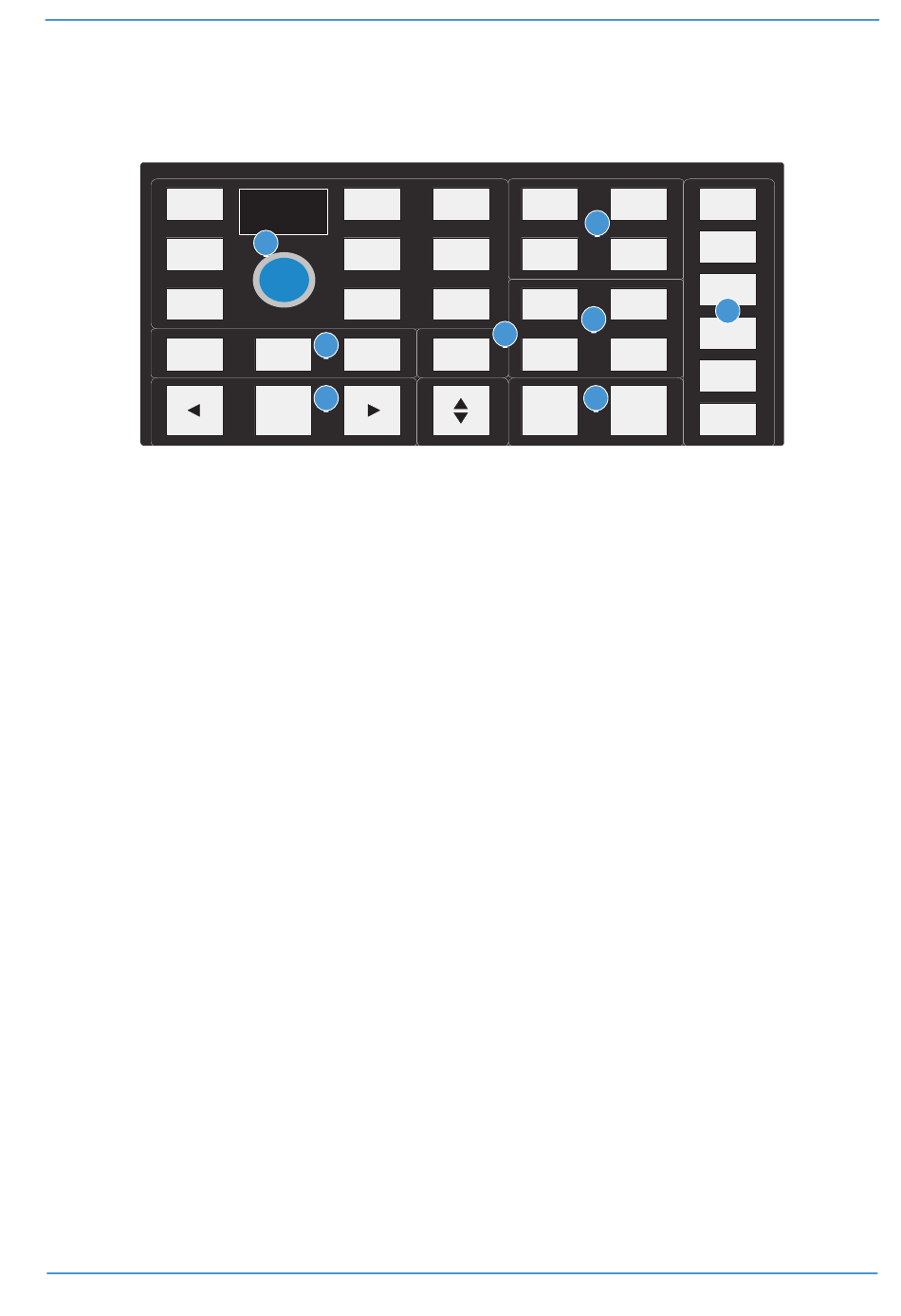

As far as possible, all the function templates use button groupings and layouts that follow the original Mackie
Control surface groupings, in order to simplify moving from one DAW platform to another:
CHANNEL
RDY
Channel V-pot functions and display options (1)
AUD
The rotary encoder switch flips V-pot parameters onto the channel faders. The encoder itself is not used in any
RTZ
of the Mackie Control templates. The CHANNEL button has the same functions as in HUI Mode, and assigns
either the console or DAW channel level control to the V-pot, according to the state of the Console Focus button.
RDY and SEL (2)
TRIM
As with the HUI protocol, the RDY and SEL buttons determine the function of the channel strip's SEL button. The
default is the SEL (select) function; RDY accesses DAW track arming via the channel SEL button. The centre
ALL
(blank) button is used as a discrete function in some of the templates, and corresponds to the EDIT/GLOBAL
button located next to the FLIP button on a Mackie Control unit.
Channel and control surface banking (3)
These are used in exactly the same way as in HUI Mode.
Project/Menu buttons (4)
These offer similar functions to those in HUI mode but are template specific.
Modifier buttons (5)
Again, these are Layout and Name template specific.
Dedicated Functions (6), (7), (8)
These are all template specific.
