Soft Keys; Automation Enables; Automation Modes - Solid State Logic Duality Fuse Operator's Manual

DAW

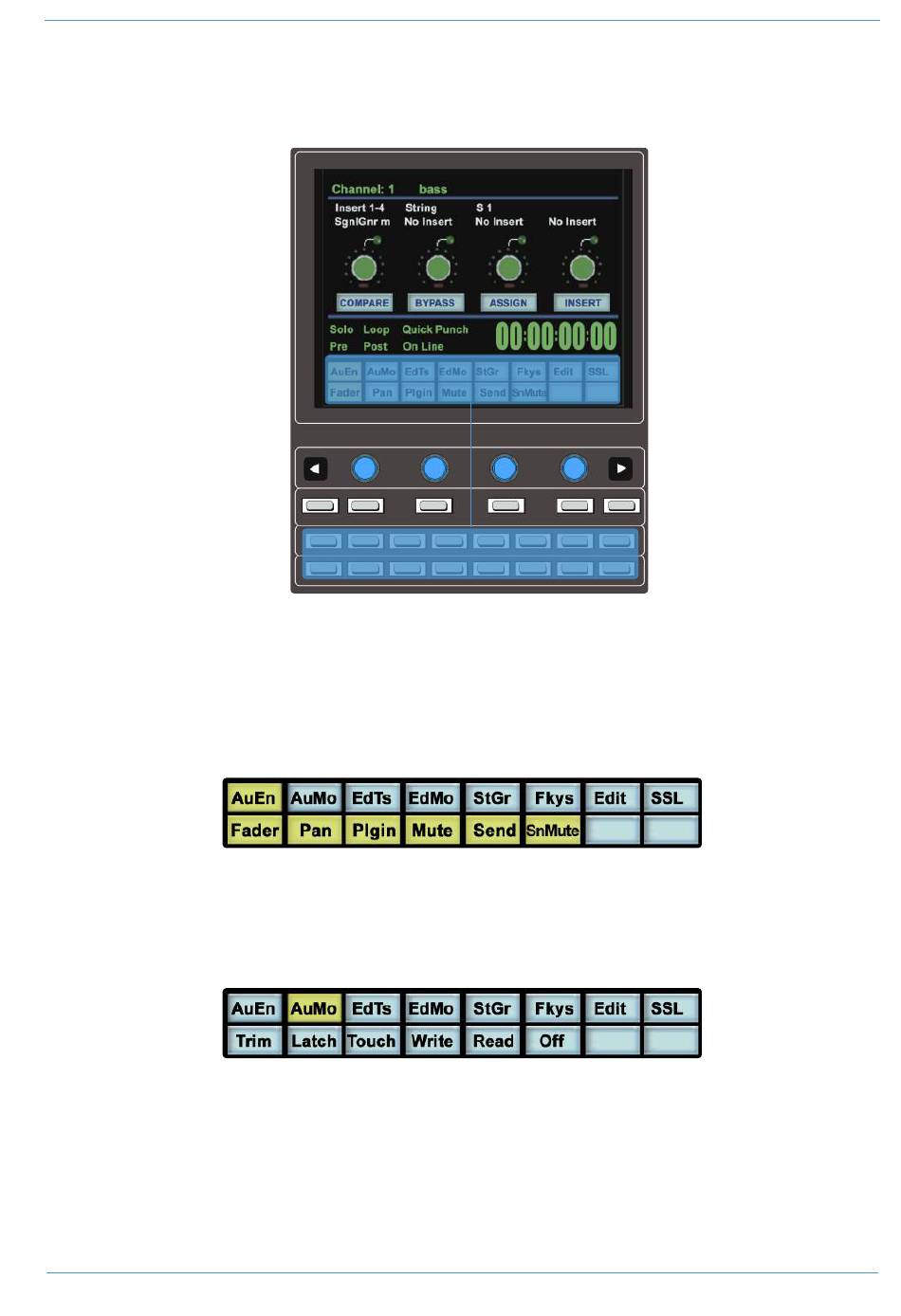

Soft Keys

The Plug-In Editor panel includes an 8 x 8 matrix of soft keys that map to the 16 menu boxes at the bottom of the
plug-in display.
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
The top row (buttons 1 – 8) allows selection of the labelled functions. Once pressed, a submenu will appear
below. These items are selected using the second row of soft key buttons (9 – 16). The menus are ordered as
follows:

Automation Enables

The Automation Enables (AuEn) globally engage or disengage automation for the following items: Faders, Pans,
Plug-Ins, Mutes (cuts), Sends and Send Muting. See Working with Automation for more details.

Automation Modes

Automation Modes (AuMo) set the update mode for each channel or group of channels. See Working with
Automation for more details.
Duality Fuse Operator's Manual 3-29
