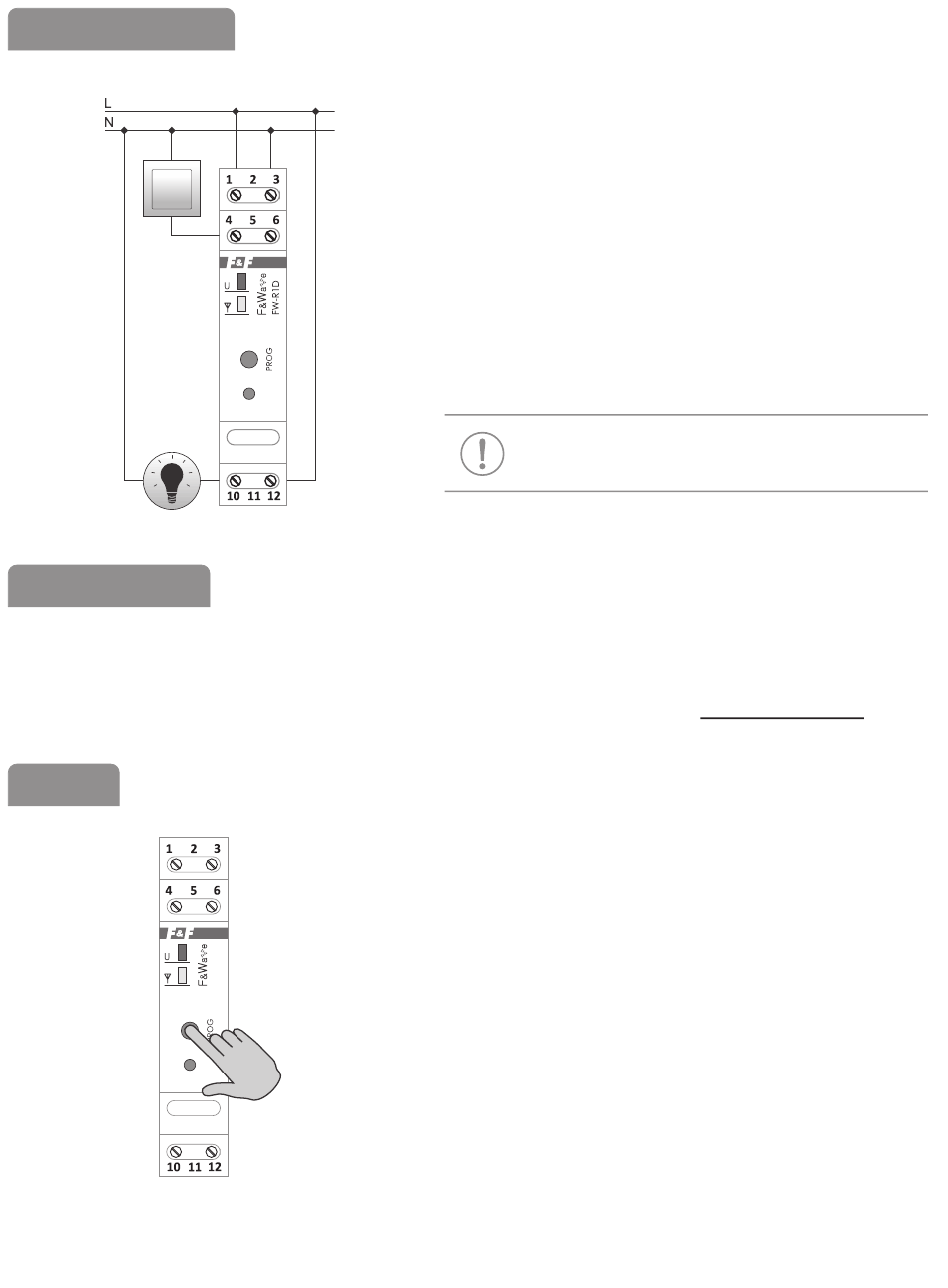

Wiring diagram
Load capacity
16 A/250 V (AC-1)
Pairing
①
1 – L power supply
3 – N power supply
4 – control input triggered with level
10/12 – output - NO contact
Control input does not cooperate
with backlighted buttons.
The actual maximum load depends on the natu-
re and design of the receiver.
For more information visit: www.fif.com.pl.
After proper connection, press and hold the PROG
button until the relay will switch on and the commu-
nication LED will go off.
- 3 -
L or N
