System capabilities
» Communication via home Wi-Fi network;
» Remote access to devices from anywhere in the world via the
Polish cloud F&F;
» Integration with Google and Google Home voice assistant;
» Ability to work autonomously, without a Wi-Fi connection;
» Advanced timers and astronomical programmers, also with
the possibility of connecting online calendars (e.g. Google,
Outlook);
» Convenient and free mobile app for Android and iOS;
» High degree of freedom to personalise the application, inc-
luding: grouping devices, building scenes, arranging views in
folders, selecting device icons.
www.fif.com.pl/fox/hermeticbox

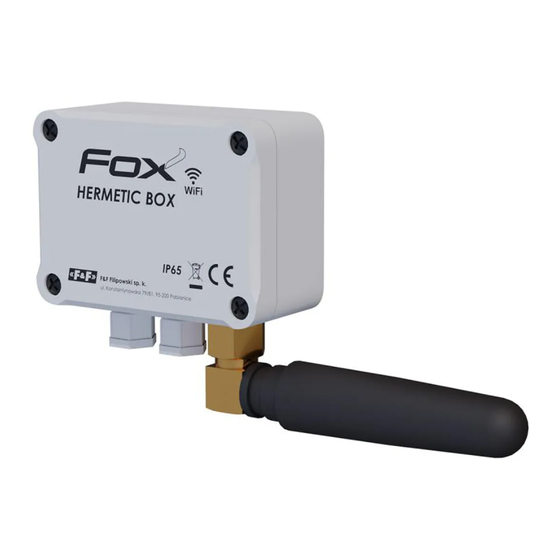

HERMETIC BOX
Wi-R1S1-H
1-channel relay
in hermetic housing
- 1 -
Advertisement
Table of Contents
Related Manuals for F&F FOX HERMETIC BOX
Summary of Contents for F&F FOX HERMETIC BOX
- Page 1 HERMETIC BOX Wi-R1S1-H 1-channel relay in hermetic housing www.fif.com.pl/fox/hermeticbox F&F Filipowski L.P.; Konstantynowska 79/81, 95-200 Pabianice, POLAND www.fif.com.pl; e-mail: biuro@fif.com.pl System capabilities » Communication via home Wi-Fi network; » Remote access to devices from anywhere in the world via the Polish cloud F&F; »...
- Page 2 Properties » Hermetic housing suitable for outdoor installation; » 1-channel 230 V relay with up to 16 A [AC-1]* load capacity and with isolated NO output contact; » Relay contact suitable for loads with high initial current (e.g. LED lighting), up to 120 A/20 ms; »...
- Page 3 Configuration For the initial configuration of the Fox module, it is necessary to download and run the free Fox application available for mobile devices running the system: » Android, version 8.0 or higher; » iOS, version 13 or higher. You can download the app directly from the stores: or via the website: www.fif.com.pl/fox On the above page, you can also find detailed information on...
-
Page 4: Terminals Description
Terminals description power supply – phase wire contacts connected inside the device power supply – neutral wire contacts connected inside the device COM contact of internal relay NO contact of internal relay INPUT connection an external push button - 4 -... -
Page 5: Wiring Diagram
Wiring diagram - 5 -... - Page 6 The use of monostable (momentary) buttons is recom- mended. If bi-stable buttons are used, at most one button can be connected to the input. When the power supply is switched on, dangerous voltage may be present on some of the controller com- ponents.
- Page 7 Mounting The controller housing is suitable for wall mounting with 2 screws. The arrangement of the mounting holes is shown in the following drawing: To increase the unit’s resistance to moisture penetration, installation with the cable exit and antenna socket facing downwards is recommended.
-
Page 8: First Launch
First launch After connecting the device to the power supply, it is recommen- ded to personalize the device. Personalization is the process of assigning passwords to access the device and setting up a connection to the home Wi-Fi ne- twork and (optionally) remote access to the device via the F&F cloud. - Page 9 sing Create Account button and following the instructions displayed by the application. If you are adding an existing account to the application, you need to enter its parame- ters into the application: email address used to create an account in the cloud and a password to access the cloud and add more devices.
- Page 10 › In the Enter name field enter a description of the password under which it will be visible on the device manager list (such as Home administrator, living room user), › In the Enter password field, enter the content of the password, ›...
- Page 11 – Calendar manager Allows you to add links to online calendars that can be used to program the operating cycle of Fox controllers. More information can be found at: www.fif.com.pl/fox. – Search Based on the previously entered information (remote ac- cess and password list), the application will start searching for devices.
- Page 12 Pressing the "+" button adds device support to the appli- cation. For controllers in factory mode, the customization mechanism for the selected module is started here and the instructions in the Device Configuration window must be followed: › Enter the name under which the device will be display- ›...
- Page 13 If you personalize more devices, you can use the Set Defaults option at the top of the Device Configuration screen. Pressing this button will substitute all recently entered data (passwords, Wi-Fi settings, remote access, calendar, location and time zone) into the new device. LED signalling Stan modułu można bezpośrednio ocenić...
-
Page 14: Restore Factory Settings
No connection to Wi-Fi network Restoring firmware Restore factory settings In case of lack of access to the controller, for example due to lost passwords, it is recommended that you reset the access passwords and then reconnect and configure the controller using the Fox application. - Page 15 6. Once this procedure has been completed, the access passwords and parameters for remote access have been cle- ared. You can now search for the device again in the applica- tion and personalise it again.. Technical data power supply 165÷265 V AC control input control voltage 165÷265 V AC...
-
Page 16: Warranty
Warranty F&F products are covered by a 24-month warranty from the date of purchase. The warranty is only valid with proof of purchase. Contact your dealer or contact us directly. CE declaration F&F Filipowski L.P. declares that the device is in conformity with the essential requirements of Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the...
