F&F FW-R1P Manual

Single bistable relay

Advertisement

Quick Links

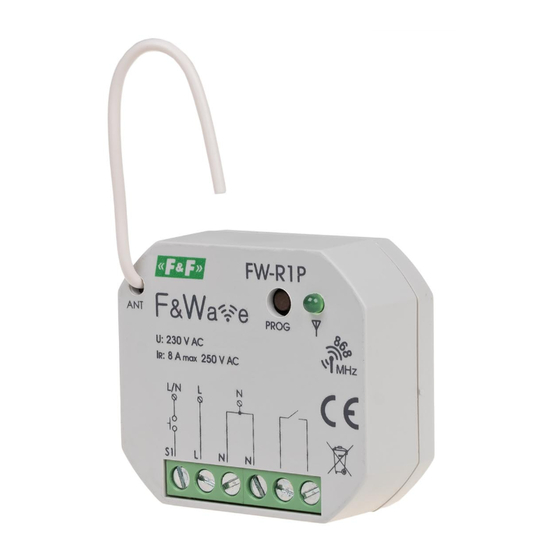

FW-R1P
Single bistable relay
Do not dispose of this device to thrash with other unsorted waste! In accordance
with the Waste Electrical and Electronic Equipment Act any household electro-waste
can be turned in free of charge and in any quan� ty to a collec� on point established for
this purpose, as well as to the store in the event of purchasing new equipment (as per
the old for new rule, regardless of brand). Electro-waste thrown in the trash or aban-
doned in the bosom of nature pose a threat to the environment and human health.
Description of the system
F&Wave is a family of wireless devices controlled by radio with a range of up to 100
meters*. The receivers are available in either a DIN-rail mounting version (housing
1S) or a ø60 flush-mounted version. The transmitters are available as handheld remo-
te controllers or as a flush-mounted version. The receivers relay control signals. The
device that receives a control signal from the transmitter will automatically send it
forward, which allows to increase the range of the remote control.
* Range of up to 100 meters in open space without any interfering factors. In building conditions and in the presence of
interference sources (power lines, transmitters, etc.) the actual range may be smaller.
F&F Filipowski L.P.
Konstantynowska 79/81, 95-200 Pabianice, PL
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -

Advertisement

loading

Summary of Contents for F&F FW-R1P

  • Page 1 Konstantynowska 79/81, 95-200 Pabianice, PL phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71 www.fif.com.pl; e-mail: biuro@fif.com.pl FW-R1P Single bistable relay Do not dispose of this device to thrash with other unsorted waste! In accordance with the Waste Electrical and Electronic Equipment Act any household electro-waste can be turned in free of charge and in any quan�...
  • Page 2: Features Of The Module

    Installation of this device should be carried out by a qualified installer after re- ading this manual. Dismantling the casing of the device will automatically void the warranty. Before starting the assembly, make sure that the connecting wires are not live. Conditions of storage, transport and use affect the proper operation of the device.
  • Page 3: Wiring Diagram

    Wiring diagram S1 - control input triggered with level L or N L - power supply L N - power supply N N - internally connected NO - output - NO contact COM - output - NO contact Control input does not cooperate with backlighted buttons.
  • Page 4: Remote Buttons

    The receiver can be paired with 8 different transmitters (remote buttons). Pairing with more buttons will remove the first entries made. Unpairing To clear the list of transmitters cooperating with the receiver, press the PROG button and hold it down for at least 10 seconds. Fast flashing of communication LED will indicate that the memory of the controller has been cleared.
  • Page 5 Correct operation of LED light bulbs FW-BYPASS-NN with devices of the FW-...-NN series Universal dimmer FW-D1P FW-D1D 2-channel LED controller FW-LED2P FW-LED2D Single relay FW-R1P FW-R1D FW-R1P-P, Single multifunction relay FW-R1D-P FW-R1-P-NN Double relay FW-R2P FW-R2D FW-R2P-P, Double multifunction relay...
  • Page 6: Technical Data

    Technical data power supply 85÷265 V AC/DC control input 85÷265 V AC/DC; <1 mA power consumption operating mode 0.60 W standby 0.25 W output load capacity (AC-1) 8 A/250 V radio frequency 868 MHz maximum emitted frequency power 10 mW working temperature -25÷65°C terminal...
