Mounting
1. Disconnect the power supply.
2. Fix the relay on a rail in the control box.
3. Connect the power wires to terminals 1-3: for AC voltage, any
polarity; for DC voltage: "+" to terminal 3, "–" to terminal 1.
4. Momentary switches connected in parallel, connect to termi-
nal 6 and to the wire to which terminal 3 is connected.
5. Connect the powered receiver in series to terminals 7-9 or
10-12.

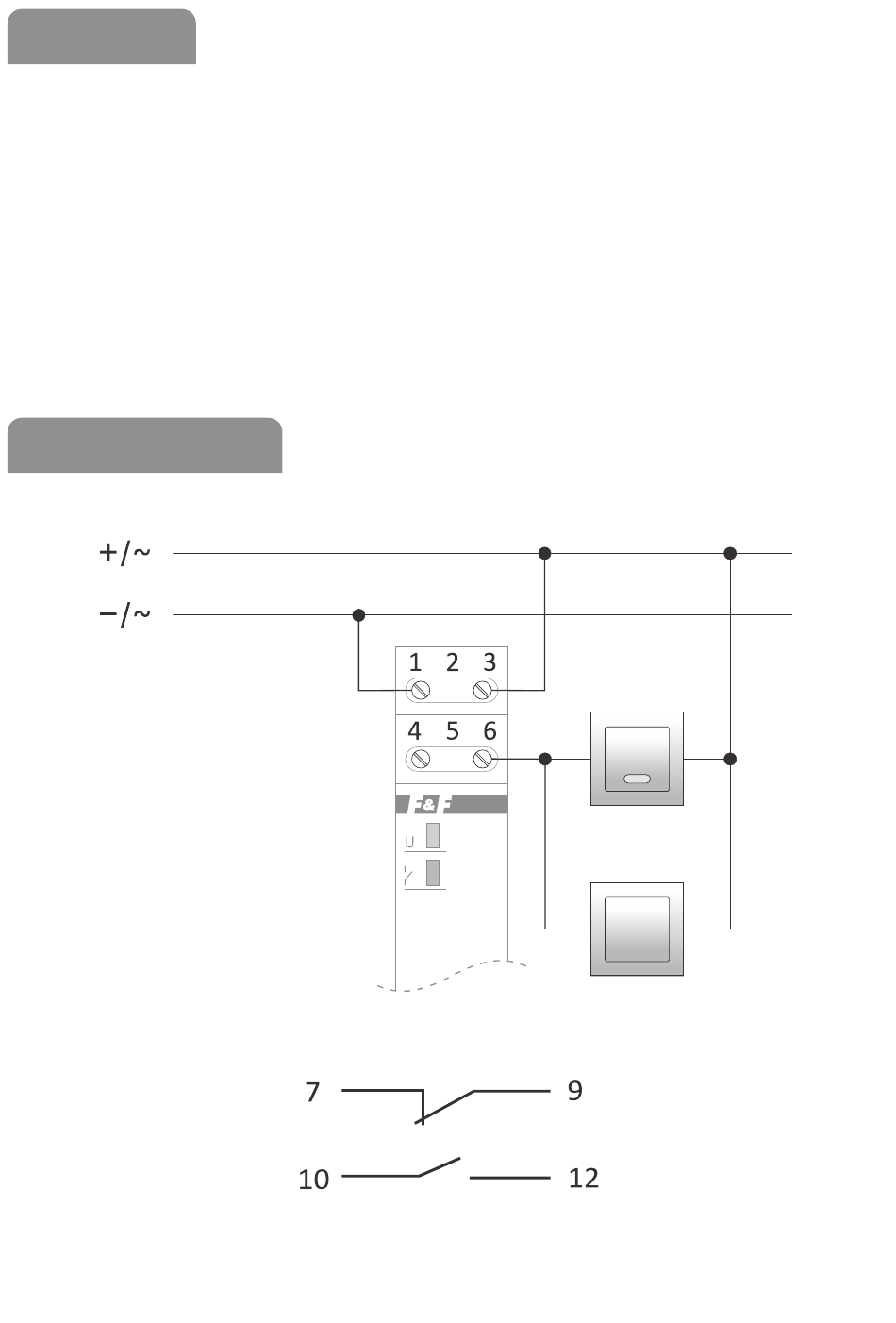

Wiring diagram
