Wiring Diagram; Load Capacity - F&F FW-R2D Manual

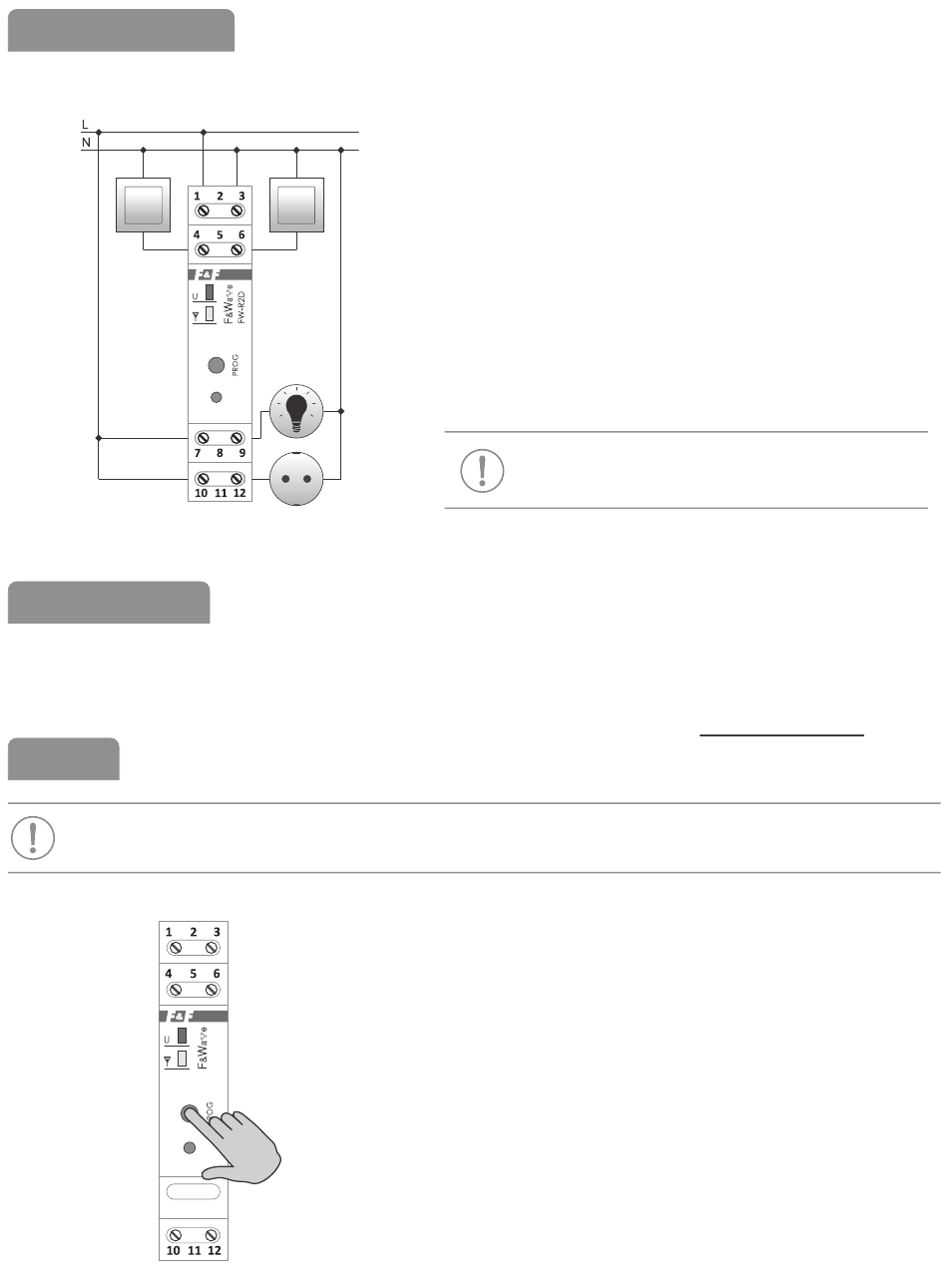

Wiring diagram

Load capacity

2× 16 A/250 V (AC-1)
Pairing
Each channel of the receiver is independently paired.
①
1 - L power supply
3 - N power supply
4 - control input triggered with level L
or N - channel 1
6 - control input triggered with level L
or N - channel 2
7/9 - NO contact - channel 1
10/12 - NO contact - channel 2
Control inputs do not cooperate
with backlighted buttons.
The actual maximum load depends on the
nature and design of the receiver.
For more information visit: www.fif.com.pl.
After proper connection, press and hold the PROG
button until the circuit of the first channel will switch
on and the communication LED will go off.
To select a second channel for pairing, hold the pro-
gramming button again until the circuit of the se-
cond channel switches on.
- 3 -
