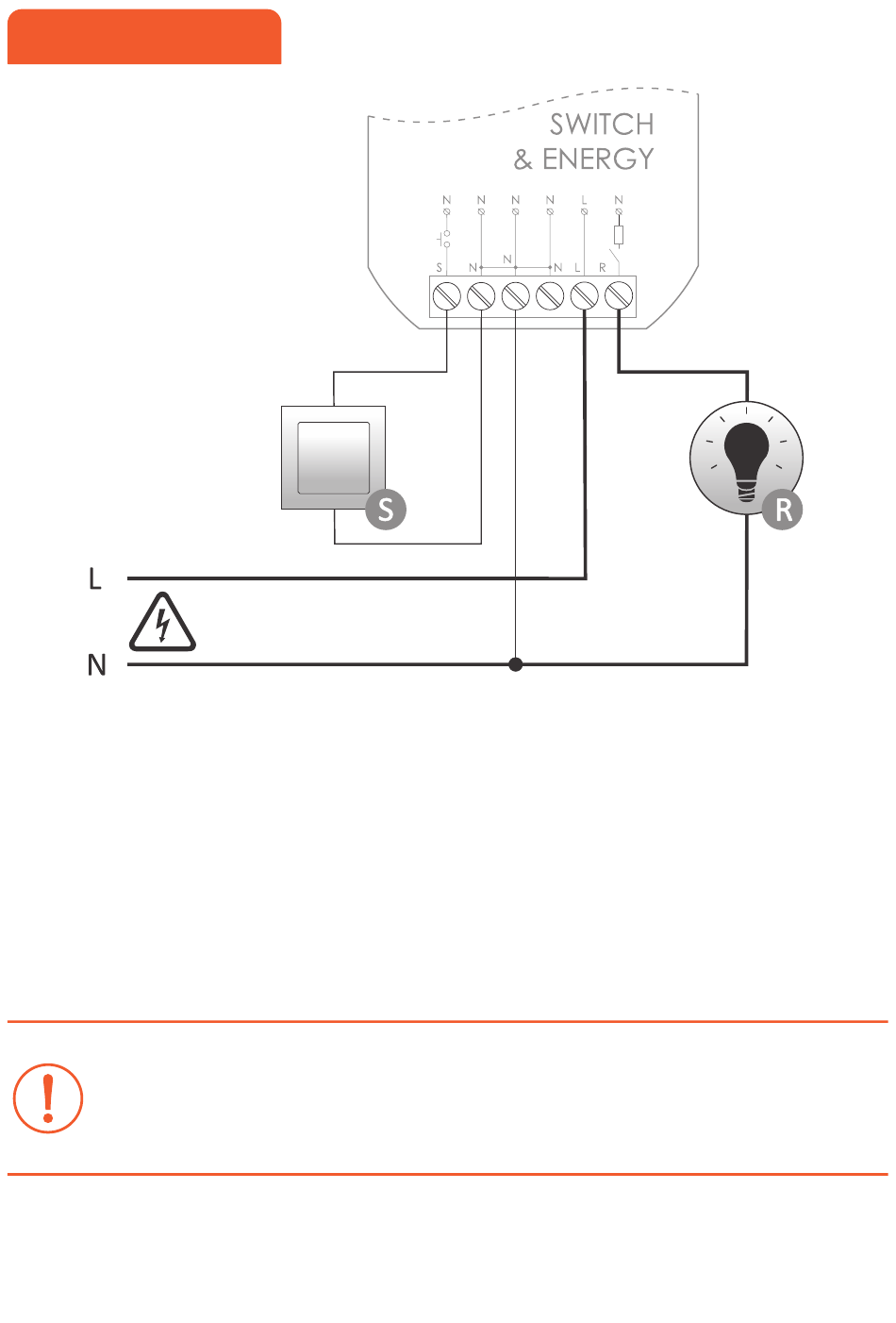

Wiring diagram

Description of terminals
S local control button input
(default – R ON/OFF function)
N power supply – neutral wire
(3×N terminals connected inside of the device)
L power supply – phase wire
R power output for R receiver
It is recommended to use monostable (momentary)
buttons. When using bistable buttons, at most one
pushbutton can be connected to the input.
