Maintenance

After usage for a period of time, the Separation Module Assembly and Feed Rollers may
become worn out, and problems such as document double-feed may occur. In this case,
check either the Separation Module Assembly or the Feed Roller Assembly, and replace
them if needed.

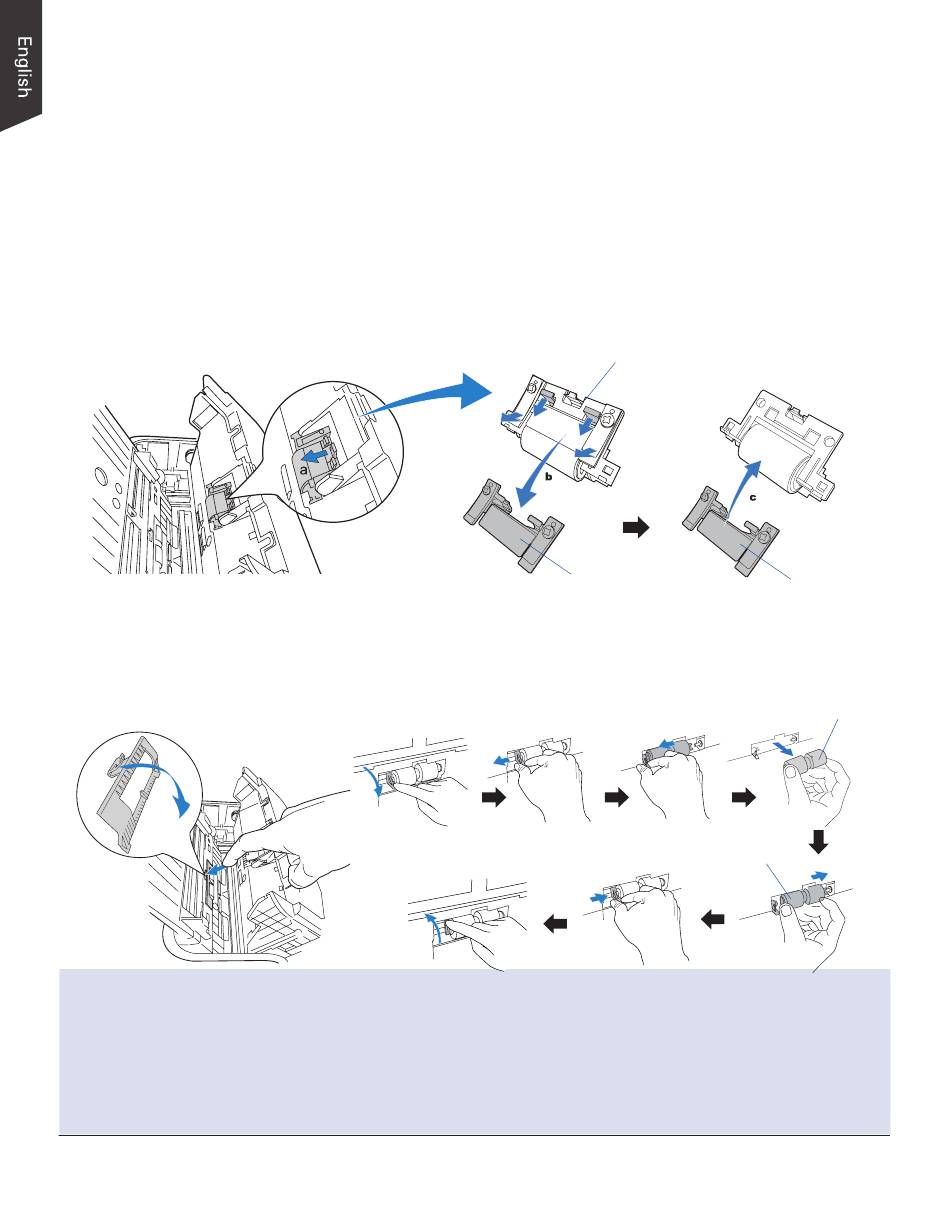

Replacing Separation Module Assembly
With the ADF cover opened, a) press the tab at the top of the Separation Module
backward and take it out from its component; b) press two tabs and hold two arms of
the module to remove the Retard Pad from the module assembly; c) then, replace the old
Retard Pad with a new pad.
Replacing the Feed Roller Assembly
With the ADF cover opened, a) press the tab on the top of the roller cover with your finger
to pull it out, b) then remove the Feed Roller Assembly from its compartment and replace
it with new one.
NOTE:
• The recommended replacement point for the Separation Module Assembly is approximate after
100,000 scans; for Feed Roller Assembly is around 150,000 scans.
• Please contact your local resellers for purchasing new Separation Module Assembly and new
feed roller.
• For more details of replacement, refer to the scanner user's manual and see the "Maintenance"
section.
Separation Module
Assembly
Old
Retard Pad
Assembly
14
New
Retard Pad
Assembly
Old roller
New roller
