I nstalling your Microtek ArtixScan DI 5230/5240/5250/5260 &
ArtixScan TS 540T

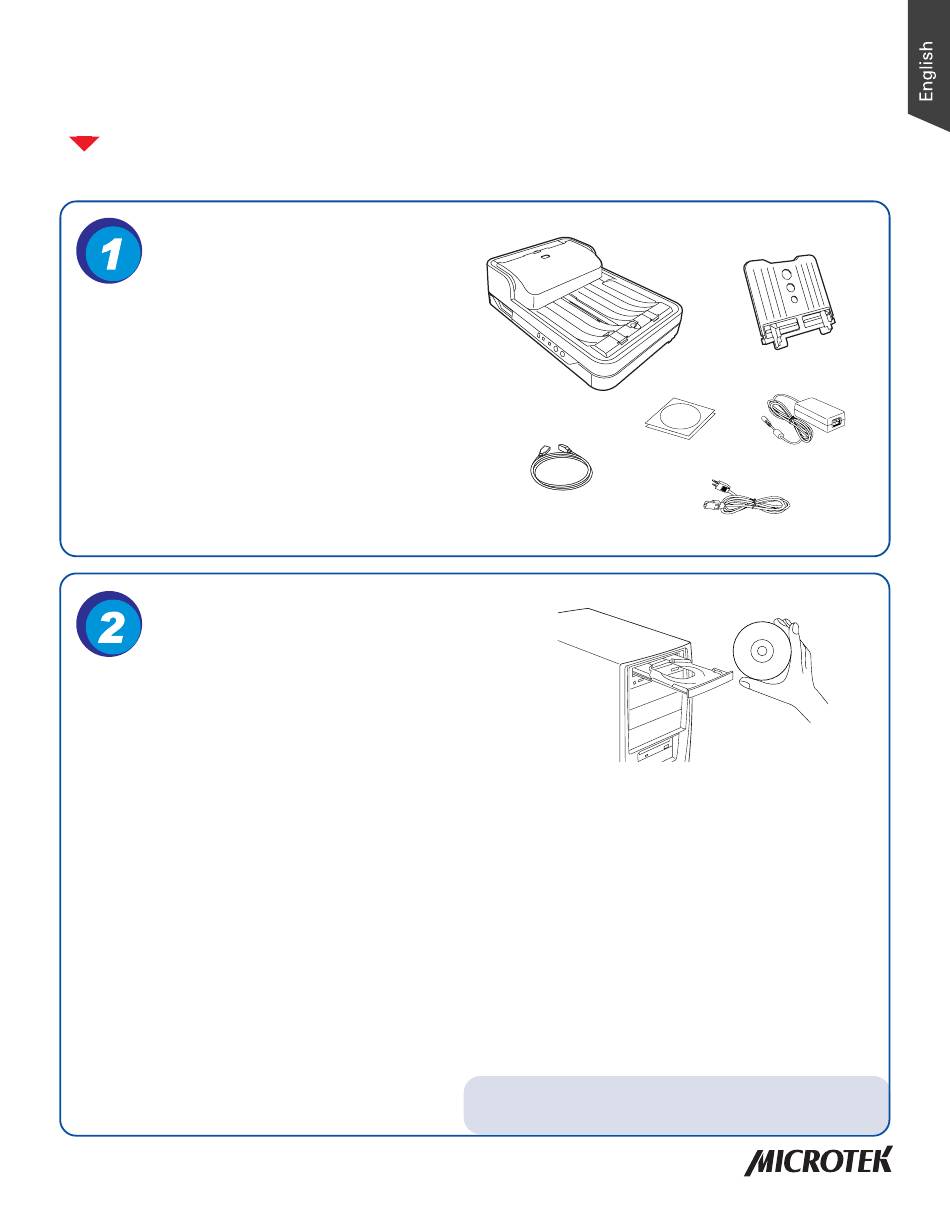

Unpack Contents
Unpack your scanner package and check for
major components.
1. Scanner
2. Hi-Speed USB cable
3. Software CDs/DVDs
4. Document Feed Tray
5. Power adapter
6. Power cord
Install Software
Important:
You must install software before connecting
your scanner. Always close any open programs, and
turn off Anti-virus utilities before installing software.
PC:
A. Place the Microtek Software CD/DVD
into a drive, and follow the on-screen
instructions to install the scanner
driver and software.
B. Restart your computer at the end of all
software installation.
NOTE: If the Microtek Software Installer screen
does not come up automatically, double-click the
following in succession: "My Computer"; the CD-
ROM (or DVD-ROM) icon; then cdsetup.exe to
start the installer program.
Copyright © 2013
Microtek International, Inc.
I49-004886 B, September 2013
1
2
MAC:
A. Place the Microtek Software CD/DVD
a drive, and double-click the ScanPotter
installer icon to install ScanPotter.
B. Install the remaining software components,
then restart your computer at the end of all
software installation.
NOTE: After rebooting your Macintosh, the Microtek
software will attempt to locate your scanner on the
system. Since this is your first install and you have not
yet connected the scanner, simply ignore the message
that appears and proceed to the next step.
* Microtek software CD/DVD (ScanPotter) for the scanner is under
development; therefore, it may not come with your scanner package.
Microtek will provide it to you as soon as possible when it is ready.
1
http://www.microtek.com
4
5
3
6
into
*
Advertisement
Table of Contents
Related Manuals for Microtek ArtixScan DI 5230
Summary of Contents for Microtek ArtixScan DI 5230
-
Page 1: Install Software
* Microtek software CD/DVD (ScanPotter) for the scanner is under development; therefore, it may not come with your scanner package. Microtek will provide it to you as soon as possible when it is ready. Copyright © 2013 Microtek International, Inc. -
Page 2: Unlock Scanner
Unlock Scanner A. Remove the yellow “Unlock Scanner” sticker from your scanner. B. With the scanner power off, tilt the front right corner of the scanner to see the locking switch at the bottom. C. Push the locking switch to the position as indicated in the graph, with the icon on the lock showing as Locked Unlocked... - Page 3 Install & Close Document Feed Tray Install Document Feed Tray Close Document Feed Tray A. Insert the Document Feed Tray by sliding A. Along the tracks of the two sides of the the tabs into the slots at the back of the Document Feed Tray, scanner.
- Page 4 WARNING: The document feeder is not designed for scanning photos; doing so may damage your originals. Microtek accepts no responsibility for damage that may arise from misuse of equipment. Guide Arms 3.
- Page 5 Using the Paper Stoppers There are two types of Paper Stoppers at the output tray, which are designed to prevent the outputs of stacked papers falling in a mess into the output tray after being scanned. Based on the paper size in use, adjust either of Paper Stoppers to appropriate position to keep the after- scanned outputs neatly in the output tray before scanning.
- Page 6 B. On the Flatbed 1. Fold down the Document Feed Tray to close Please refer to the previous section “Close Document Feed Tray” in this guide to close 2. Raise the scanner lid (ADF). Locate the notch at the left-front lower side of the scanner.
- Page 7 Basic Scanning for PC Users 1. Load the document to be scanned on either the scanner glass surface, or into the ADF’s document feed tray. WARNING: Do not place photo paper or fragile sheets of paper on the feed tray, as doing this will damage the original photo or frail papers during the feeding process.
- Page 8 “Main”) Image type Preview image (the enclosed frame bordered in red) Image correction settings Preview window NOTE: For more details on other scanning scenarios applicable to your scanner, refer to the scanner’s User’s Manual in the Microtek Software CD/DVD.
- Page 9 9. Click the Scan button to start scanning. NOTE: For more details on using ScanPotter, refer to the ScanPotter Reference Manual in the Microtek Software CD/DVD.
- Page 10 Click the Scan Settings button to switch back to the default control panel of ScanPotter Click the Image Settings button to switch to a window where contains a composite display of image-effects (Filter column) and additional image correction tools (Additional Adjustment column) for your scanned image.
-
Page 11: Fixing Paper Jams
Fixing Paper Jams Release button 1. Push the Release button to open the ADF cover as shown in the graph. ADF cover 2. Pull out the jammed paper in an upward direction from the feeder. 3. Push the ADF cover back down into place until you hear a “click”... -
Page 12: Care And Cleaning
NOTE: • The recommended cleaning cycle time would be after approximately 3,000 to 5,000 scans. • For more details on cleaning, refer to the scanner’s User’s Manual in the Microtek Software CD/DVD and see the “Care and Cleaning” section. -
Page 13: Maintenance
Feed Roller Assembly is around 150,000 scans. • Please contact your local resellers for purchasing new pad and new feed roller. • For more details of replacement, refer to the scanner’s User’s Manual in the Microtek Software CD/DVD and see the “Maintenance” section. - Page 14 Problems? The green LED lighting (the SCAN/STOP button) indicates the status of the scanner. The orange LED lighting (the POWER button) stands for power and should always stay on steady when the scanner is on. All On: Ready to scan. Flashing Green: Scanning.
- Page 15 After you finish the installation of software, if you found that the installed drivers and software cannot run your product or your computer system properly later, please go to the Microtek Download Service site at ww7.microtek.com.tw/service.php to download and install any updates you may require.
Need help?
