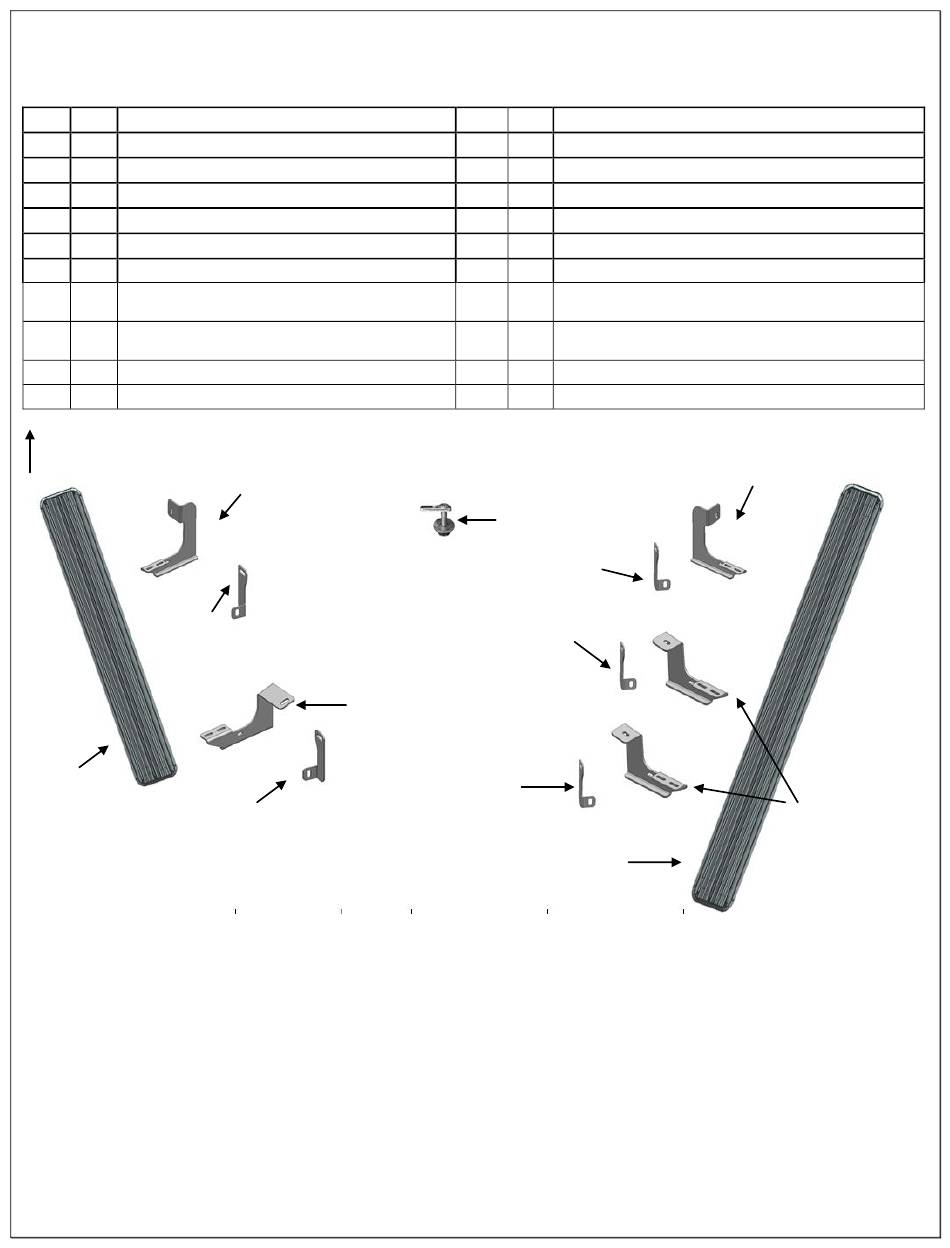

PARTS LIST:
Item
Qty
Description
#1
1
Driver/left Running Board
#2
1
Passenger/right Running Board
#3
1
Driver/Left Side Front Bracket
#4
1
Driver/Left Side Rear Bracket
#5
1
Driver/Left Side Front Support Bracket
#6
1
Passenger/Right Side Front Bracket
Passenger/Right Side Center/Rear
#7
2
Brackets
Passenger/Right Side Support Brackets (1-
#8
4
drv rear)
#9
5
8-1.25mm x 35mm Button Head Bolt Plates
#10
5
8mm Plastic Retainers
Front
Driver/Left Front
Mounting Bracket
Unique Driver/Left Front
Support Bracket Only
(1) Driver/left
Running Board
Unique Driver/Left Front
(example only)
Support Bracket Only
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
1.
Start the installation under the driver side of the vehicle. Locate the factory hole in the side of the inner
body panel, (Figures 1 & 3). IMPORTANT: Hole may be covered with rubber plug, sealing tape and/or
heavy undercoating. Remove excess undercoating from all mounting locations so that Brackets will
install flat against body panel and pinch weld.
2.
Select (1) 8mm Bolt Plate and (1) 8mm Plastic Retainer, (Figure 2). Thread the Retainer part way onto
the Bolt Plate. Insert the Bolt Plate into the hole and tighten the Retainer against the body panel,
(Figure 3). IMPORTANT: The Plastic Retainer is designed to prevent the Bolt Plate from falling into the
body panel and to aid in Bracket installation.
2014-18 RAM PROMASTER VAN 118" WHEELBASE (FULL SIZE)
Item
Qty
#11
10
#12
5
#13
20
#14
5
#15
5
#16
10
10
#17
10
#18
10
#19
(5) 8mm Bolt Plates
Support Bracket (2 of 4)
Support Bracket (3 of 4)
Driver/left rear
Mounting Bracket
Support Bracket
(4 of 4)
(1) Passenger/right
Running Board
(example only)
Page 1 of 7
IB(6",5",4")RUNNING BOARD
Description
8-1.25mm x 25mm Hex Bolts
8mm x 28mm OD x 3mm Large Flat Washers
8mm x 16mm OD x 1.6mm Small Flat Washers
8mm Lock Washers
8mm Hex Nuts
8mm Nylon Lock Nuts
6-1.0mm x 20mm T-Bolts
6mm x 18mm OD x 1.6mm Flat Washers
6mm Hex Nuts
Passenger/right Front
Mounting Bracket
Passenger/right
#2, #3 and Rear
Mounting Brackets
(same)
3/19/12 Rev1(DP)
