iBoard
by APS
READ INSTRUCTIONS CAREFULLY BEFORE START ING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED.
*ROCKER PANEL MOUNT
*NO DRILLING REQUIRED
Driver
1#
iBoard
1#
1#
NOTE: All Mounting Brackets are universal.
Customer Support: info@iboardauto.com
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Front
1
®
PART#: IB-R159/R258
Required
6-7
16-18
31-32
56-58
92-94
Passenger
1#
1#
1#
Rev. 20220601
√
√
X
X
X
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for APS iBoard IB-R159
Summary of Contents for APS iBoard IB-R159

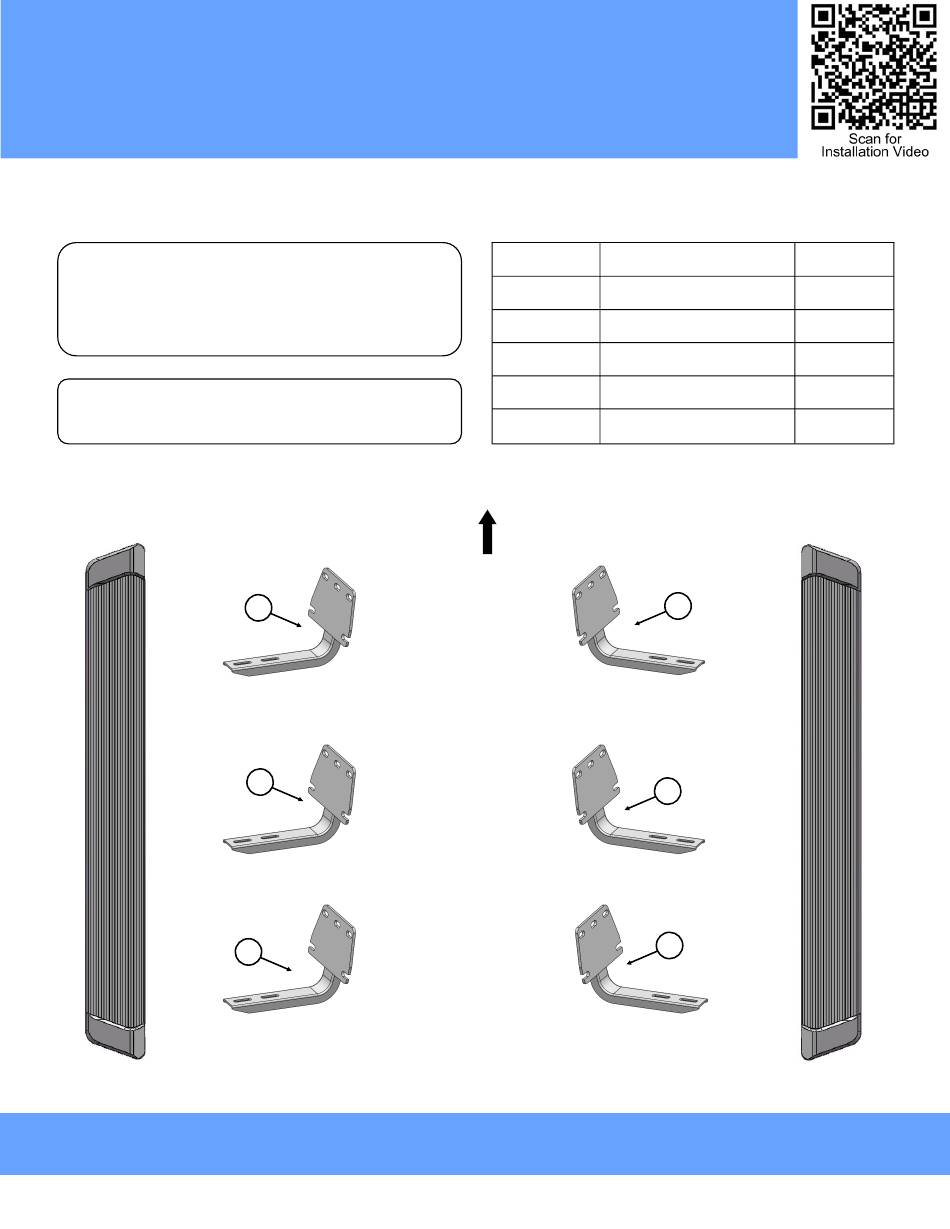

- Page 1 ® ® iBoard by APS PART#: IB-R159/R258 Fastener Size Tightening Torque (ft-lbs) Required READ INSTRUCTIONS CAREFULLY BEFORE START ING INSTALLATION. REMOVE CONTENTS FROM BOX AND √ VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS 16-18 √ RECOMMENDED. 10mm 31-32 12mm...
- Page 2 iBoard ® Hardware Package A (For Bracket Installation) Item Description Item Description Mounting Brackets M8X1.25 Nylon Lock Nuts M8 Large Flat Washers Hardware Package B (For Step Bar Installation) Item Description Item Description M6X1-20mm Square Head Bolts M6 Nylon Lock Nuts M6 Large Flat Washers Customer Support: info@iboardauto.com Rev.
- Page 3 iBoard ® STEP 1 Start the installation under the driver side of the vehicle. Locate the front (3) factory studs along the inner side of the body pan- el, (Fig 1). NOTE: Use a wire brush to remove paint on the threaded studs if equipped.
- Page 4 iBoard ® (2) M6X1-20mm Square Head Bolts (2) M6 Large Flat Washers (2) M6X1 Nylon Lock Nuts Rear (Fig 4) Driver Side Rear Mounting Location (Fig 6) Running Board Installed Onto Mounting Bracket STEP 4 STEP 5 Once all (3) Mounting Brackets have been installed, select a Running Board.
